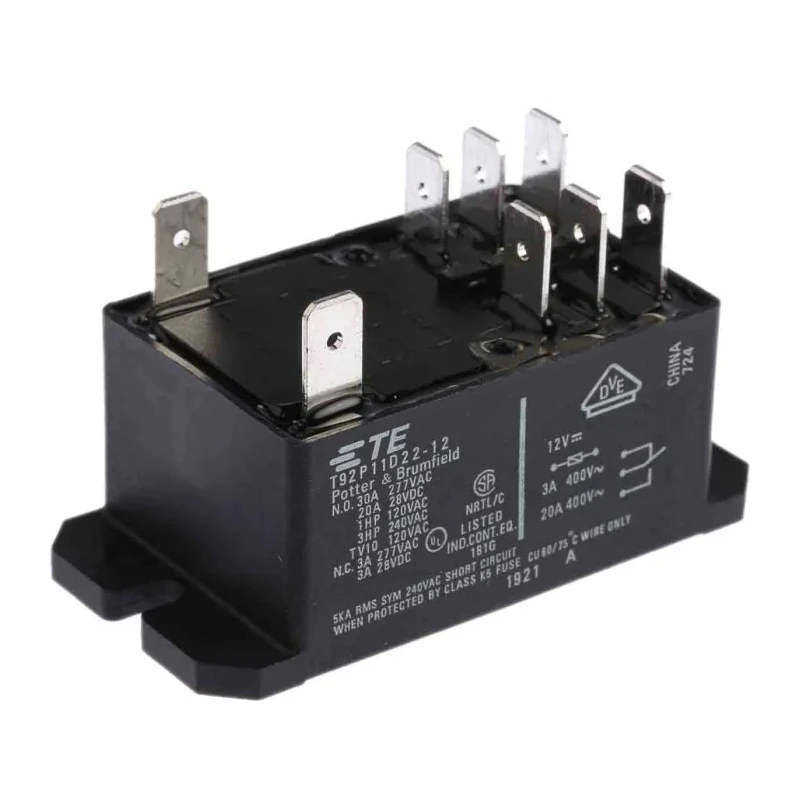

TE Connectivity Flange Power Relay, 12V DC Coil, 30A Switching Current, DPDT, Quick Connect T92P11D22-12 5-1393211-3

TE Connectivity T92P11D22-12 5-1393211-3 flange power relay is a high-power, general-purpose DPDT relay designed for industrial and electrical applications. The relay operates with a 12V DC coil and supports a switching current of up to 30A, making it suitable for controlling moderately large electrical loads.

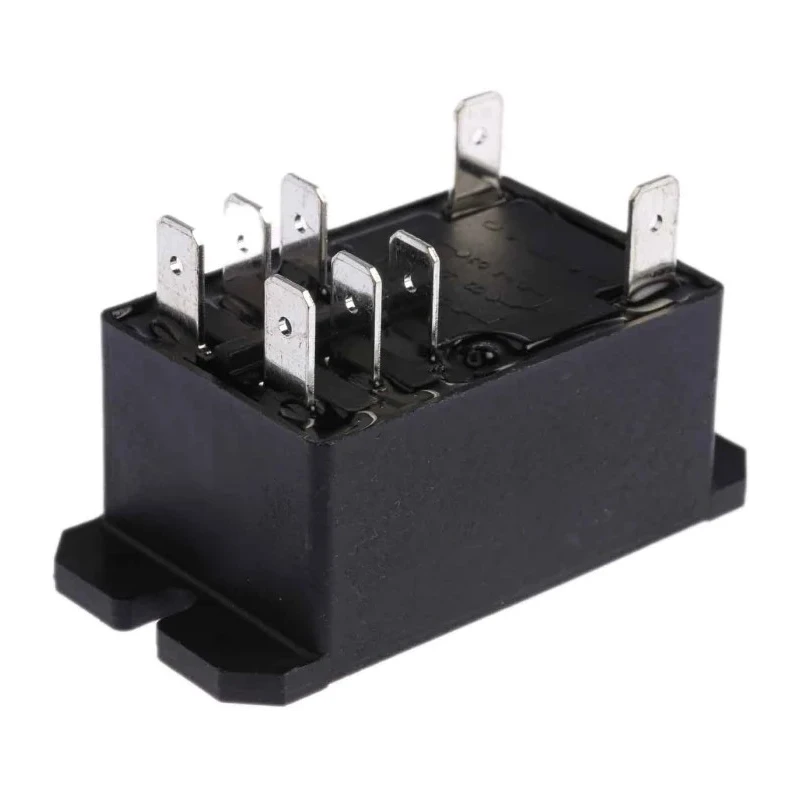

This panel-mount flange relay features quick connect terminals to facilitate secure and efficient wiring. The contact material is silver alloy, offering excellent conductivity and durability in industrial environments. With operating temperature limits from -55°C to 85°C, this relay is designed to perform reliably under extreme conditions.

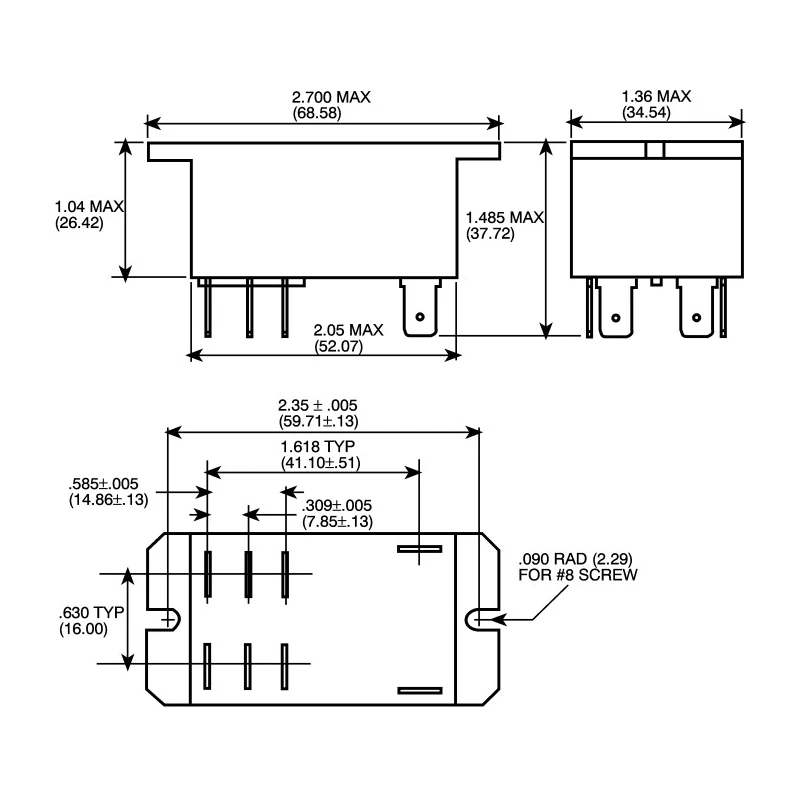

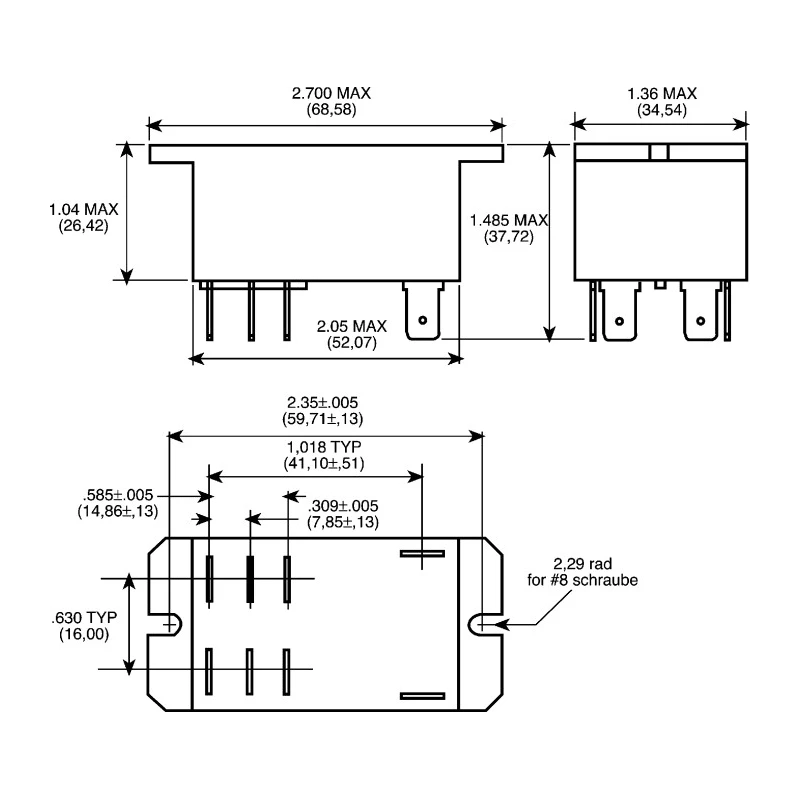

The relay's coil resistance is 86Ω, consuming only 1.7 Watts of power, which contributes to energy-efficient operation. Its compact size (68.6mm length, 34.5mm width, and 38mm height) allows integration into tight panels or control boxes. It is ideal for use in HVAC compressor controls, manufacturing equipment, and power distribution systems where a DPDT (double pole double throw) configuration is required.

The device complies with RoHS standards, ensuring it meets environmental and safety requirements for electronics components. Its Chinese origin reflects manufacturing precision and adherence to international electrical standards.

Designed for flange mounting with quick connect terminals for easy installation. Silver alloy contact material ensures reliable electrical performance. Operating temperature range from -55°C to 85°C suitable for harsh environments.

Coil resistance of 86 ohms and coil power consumption at 1.7 Watts. Compact dimensions: 68.6mm length, 34.5mm width, and 38mm height. Suitable for control of compressor loads up to 3.5 tons with high electrical load capability.

Meets RoHS compliance standards for environmental safety.

This power relay is widely used in industrial, automation, HVAC, manufacturing, and electrical control systems where reliable switching of moderate to high currents is required. Its robust design ensures durability and consistent performance under challenging operating conditions.
