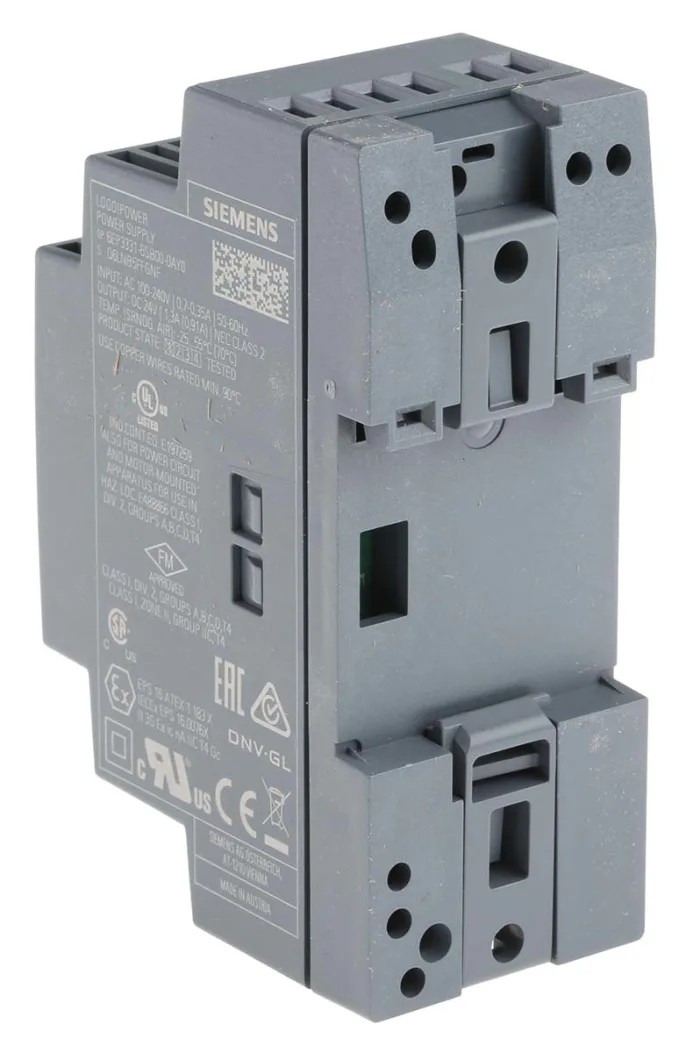

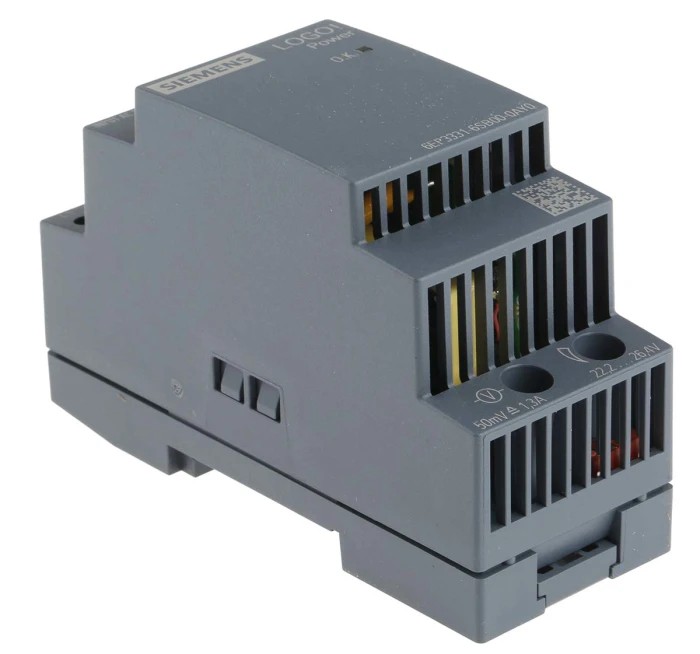

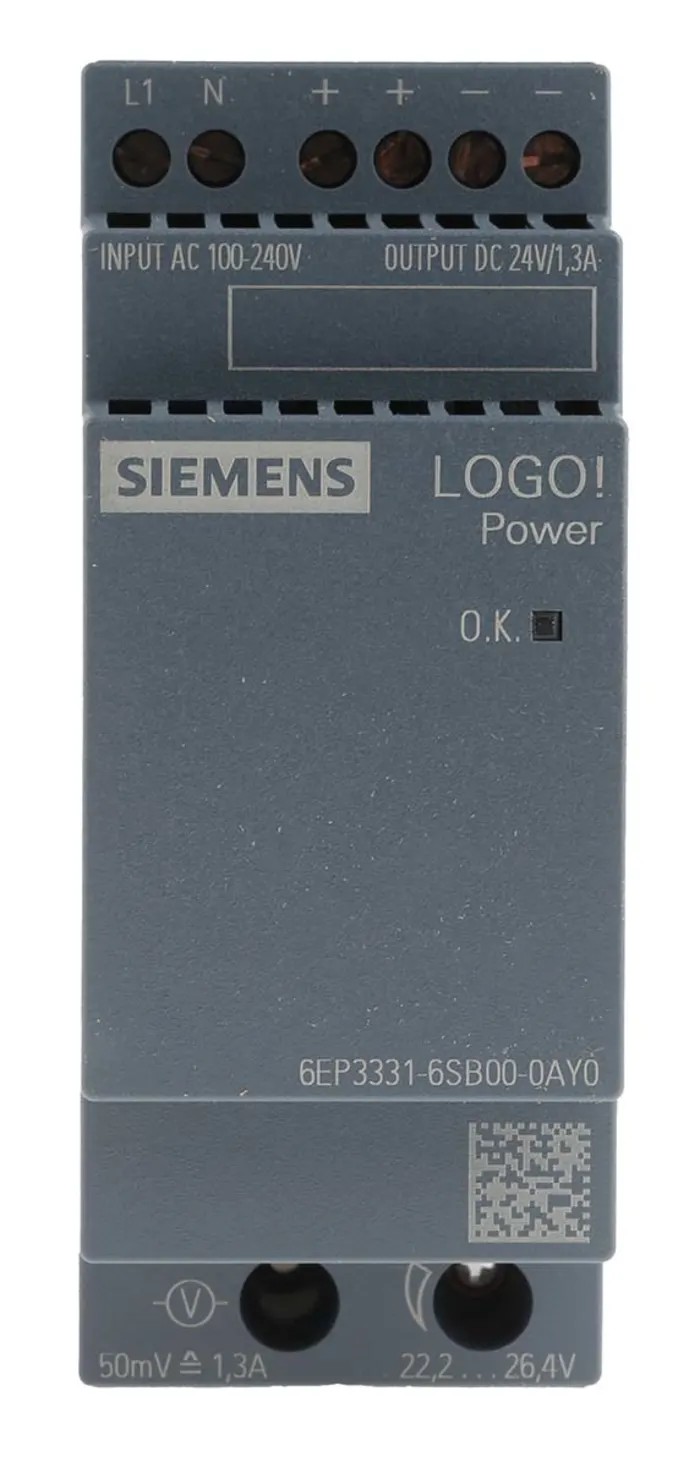

Siemens LOGO POWER Switched Mode DIN Rail Power Supply 264V AC Input 24V DC Output 1.3 A 31 W 6EP3331-6SB00-0AY0
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | Siemens |
| Power | 31W |
| Efficiency | 86% |
| Height | 90mm |
| Model | 6EP3331-6SB00-0AY0 |
| Depth | 53mm |
| IP Rating | IP20 |
| Width | 36mm |
| Series | LOGO POWER |
| Output Current | 1.3A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Electrical Phase | 1 |
| Hazardous Area Certification | ATEX |
| Maximum Output Voltage | 24V dc |
| Minimum Input Voltage | 85V ac |
Key Features
- Switched mode design ensures efficient power conversion with 86% efficiency.
- Supports a wide AC input voltage range from 85 V to 264 V for flexible installation.
- Compact dimensions of 90 mm height, 36 mm width, and 53 mm depth ideal for confined spaces.
- Wide operating temperature range from -25°C to +70°C suitable for harsh environments.
- IP20 rated for protection against solid objects, making it reliable in industrial settings.
- Built to meet various international standards and certifications including CE, UL, CSA, and ATEX.
- Integrated current measurement feature allows monitoring output current without disconnection.
- Designed for DIN rail mounting providing quick and secure installation.
Product Description
Siemens 6EP3331-6SB00-0AY0 DIN Rail Power Supply from the LOGO POWER series offers a robust, switched mode power solution delivering 31 watts of power at 24 volts DC output and 1.3 amperes. With AC input voltage range spanning from 85 to 264 volts, it accommodates varying power sources in industrial and commercial environments.
The unit features a compact design sized at 90 mm height, 36 mm width, and 53 mm depth, making it well-suited for installation in space-restricted panels and distribution boards. Constructed from durable thermoplastic materials, it ensures long-lasting performance and superior impact resistance.
Operating across a broad temperature range from -25°C to +70°C, this power supply is reliable even in harsh or fluctuating climates. An IP20 ingress protection rating offers a safeguard against solid foreign objects, supporting its usage in industrial and laboratory settings.
The product complies with multiple international standards and certifications, including CE, UL, CSA, ATEX, and FM approvals, assuring conformity and safety in critical applications. The integrated feature for current measurement facilitates real-time monitoring of output current without the need for system disconnection.
Ideal for use in industrial automation, control panels, machinery, and instrumentation, this DIN rail power supply ensures efficient and reliable power delivery via its switched mode technology with an efficiency rating of 86%. The easy snap-fit DIN rail mounting mechanism reduces installation time and effort while enabling compact system designs.
Switched mode design ensuring high power efficiency. Wide AC input voltage range for versatile application. Compact size for panel installations with space constraints. Built-in output current monitoring without interruption.
Conforms to multiple international safety standards and certifications. Durable thermoplastic housing for impact resistance. Wide temperature range suitable for industrial environments. IP20 protection level for safe operation.
Choose Siemens LOGO POWER DIN Rail Power Supply 6EP3331-6SB00-0AY0 for reliable power in applications including industrial automation, HVAC systems, machinery controls, and electrical distribution. Browse the Electronics & Electricals category on EnvMart for similar power supply solutions.
Explore more products in our DIN Rail Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output power of this model is 31 watts at 24 volts DC.
It supports an AC input voltage range from 85V to 264V.
This unit has a height of 90 mm, a width of 36 mm, and a depth of 53 mm.
The efficiency rating of this model is 86%.
The maximum operating temperature is +70°C.
It has an IP20 ingress protection rating, which protects against solid objects.
This model is designed for DIN rail mounting, allowing for quick and secure installation.
The output current is 1.3 amperes.
Yes, it includes an integrated current measurement feature for monitoring output current without disconnection.
It complies with multiple international standards and certifications, including CE, UL, CSA, and ATEX.
The minimum operating temperature is -25°C.
This unit has one output.
