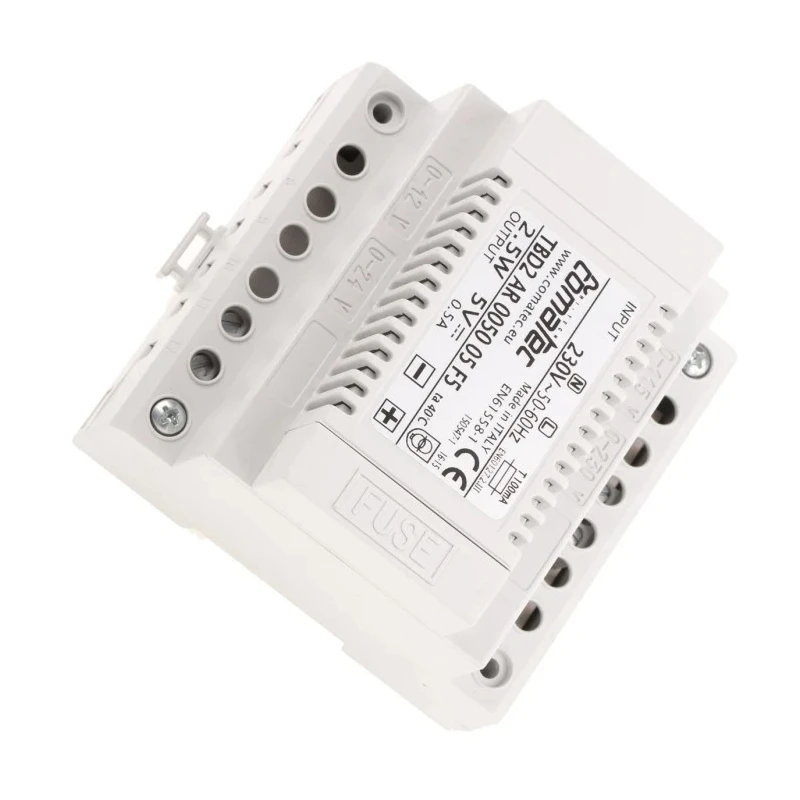

Comatec TBD2 Linear DIN Rail Power Supply 230V AC Input, 5V DC 500mA Output, 2.5W Power, IP20, Italy TBD2
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Comatec |
| Power | 2.5W |
| Efficiency | 30% |
| Height | 93mm |
| Model | TBD2 |
| Depth | 66.5mm |
| IP Rating | IP20 |
| Width | 93mm |
| Series | TBD2 |
| Output Current | 500mA |
| Maximum Operating Temperature | 40°C |
| Sub Type | Linear |
| Minimum Operating Temperature | -5°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 230V ac |
| Electrical Phase | 1 |
| Maximum Output Voltage | 5V dc |
Key Features
- Designed for linear regulation and insulation class II applications.
- Compact DIN rail or chassis mounting with screw terminal connections.
- Operating temperature range from -5°C to 40°C ensuring reliability.
- Provides an IP20 rating suitable for indoor electrical enclosures.
- Compliance with standards EN 55032(cl.B), EN 55024, RoHS, EN 61558-1, EN 61000-3-3, and EN 61000-3-2.
- Maximum input voltage of 230V AC for consistent operation.
- Efficiency rated at 30%, optimized for low power consumption applications.
Product Description
Comatec TBD2 linear DIN rail power supply offers a reliable solution with a 230V AC input and a stable 5V DC output at 500mA, delivering a total power output of 2.5W. It is designed for use in home automation, security systems, and industrial control cabinets where class II insulation is required. This power supply features linear regulation technology ensuring low noise and consistent power delivery for sensitive electronic applications.
The unit is compact, with dimensions of 93mm width and height, and a depth of 66.5mm allowing easy DIN rail or chassis mounting. It uses screw terminal connections for secure and reliable wiring installation. Operating temperature ranges from -5°C to 40°C, making it suitable for various indoor environments.
With an IP20 ingress protection rating, the device is designed for safe use within controlled indoor electrical enclosures, protecting against solid objects larger than 12 mm but without protection against liquids. Efficiency is rated at 30%, supporting energy-saving requirements for low-power industrial and automation systems.
Compliance with well-recognized standards such as EN 55032(cl.B) for emission, EN 55024 for immunity, RoHS for hazardous substances, EN 61558-1 for safety of power supplies, and electromagnetic compatibility standards EN 61000-3-3 and EN 61000-3-2, ensures this product meets demanding industrial and commercial requirements.
This power supply is ideal for industrial, laboratory, construction, HVAC, manufacturing, and commercial electrical applications requiring stable and safe DC output power. Designed for linear regulation and insulation class II applications.
Compact DIN rail or chassis mounting with screw terminal connections. Operating temperature range from -5°C to 40°C ensuring reliability. Provides an IP20 rating suitable for indoor electrical enclosures. Compliance with standards EN 55032(cl.B), EN 55024, RoHS, EN 61558-1, EN 61000-3-3, and EN 61000-3-2.
Dimensions: 93mm width, 93mm height, 66.5mm depth for installation ease. Maximum input voltage of 230V AC for consistent operation. Efficiency rated at 30%, optimized for low power consumption applications. Explore more reliable DIN Rail Power Supplies from Comatec and related categories at EnvMart for professional industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage for this power supply is a maximum of 230V AC.
It provides a stable output voltage of 5V DC with a maximum output current of 500mA.
This power supply has a power rating of 2.5W.
The dimensions are 93mm in width, 93mm in height, and 66.5mm in depth.
It operates within a temperature range of -5°C to 40°C.
This power supply has an IP20 ingress protection rating, suitable for indoor electrical enclosures.
It complies with standards including EN 55032(cl.B), EN 55024, RoHS, EN 61558-1, and EN 61000-3-3.
It can be mounted on a DIN rail or chassis using screw terminal connections for secure wiring.
It is designed for applications in home automation, security systems, and industrial control cabinets requiring class II insulation.
The efficiency of this power supply is rated at 30%, optimized for low power consumption applications.
It is designed for linear regulation and insulation class II applications.
This model has one output.
