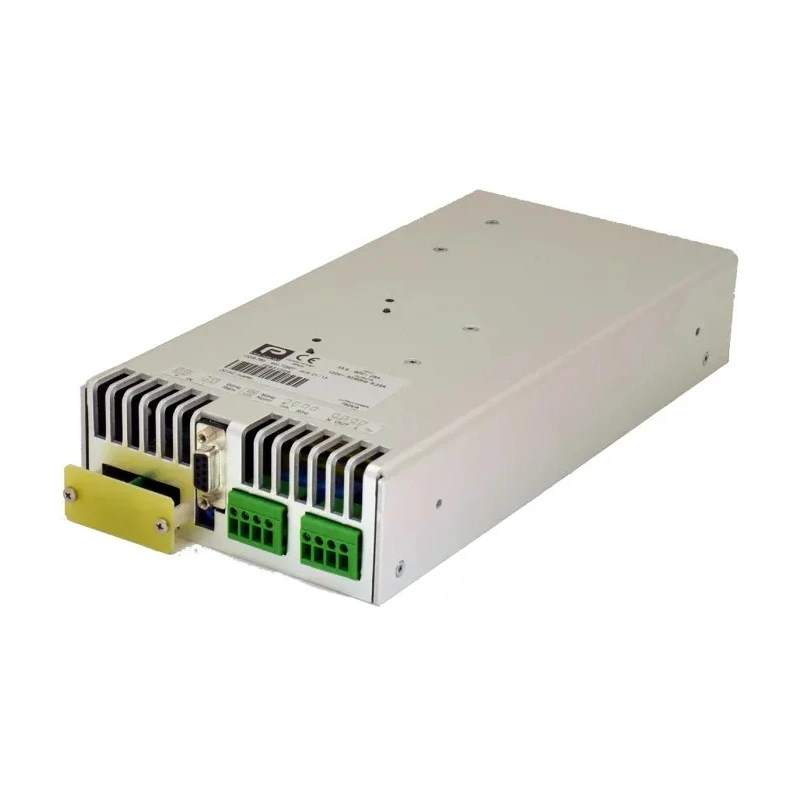

RS PRO Chassis 750W DC AC Inverter 16.8V, 30V Input, 230V AC Output 144-7706

RS PRO 144-7706 is a high-performance chassis-mounted DC AC inverter delivering 750 watts of power. This inverter accepts input voltages of 16.8V and 30V and outputs a stable 230V AC power supply, making it suitable for industrial, railway, marine, and general electronic power conversion applications.

The inverter output features a pure sine wave with selectable output frequencies of 50 or 60 Hz, ensuring compatibility with a wide range of equipment. It incorporates high input-output isolation of 3000 Vrms to protect sensitive electronics and enhance system safety.

Built to withstand harsh environmental conditions, it operates efficiently within a temperature range of -25°C to 55°C. The chassis mount design simplifies installation in control cabinets or equipment housings. Weighing only 2 kilograms, it also supports compact system design without compromising performance.

This model includes integral protection features against current overload, polarity errors, and overload conditions, thereby extending device longevity and reliability. It meets multiple compliance standards including EN 50155 for railway electronics and EN 45545-2 for fire and smoke safety, while also holding DNV GL maritime type approval for marine applications.

Provides a sine wave output voltage with selectable frequency at 50/60Hz. Features high input-output isolation of 3000 Vrms ensuring safety and reliability. Includes protection features such as current limit, overload protection, and polarity safeguards.

Complies with multiple international standards including EN 50155 and EN 45545-2 for railway and fire safety. Designed for chassis mounting with compact dimensions and lightweight 2kg construction. Operates within temperature range from -25°C to a maximum of 55°C for diverse environmental conditions.

Specifically approved as a DNV GL maritime type product ensuring marine compliance. Offers an impressive efficiency rate of 86% for optimal energy use.

This DC AC Inverter is ideal for industrial power supply solutions, railway system electronics, marine vessels, and any application requiring reliable conversion of DC to AC power with strict safety and efficiency standards. Explore the full RS PRO range in Power Inverters on EnvMart for compatible components and accessories.
