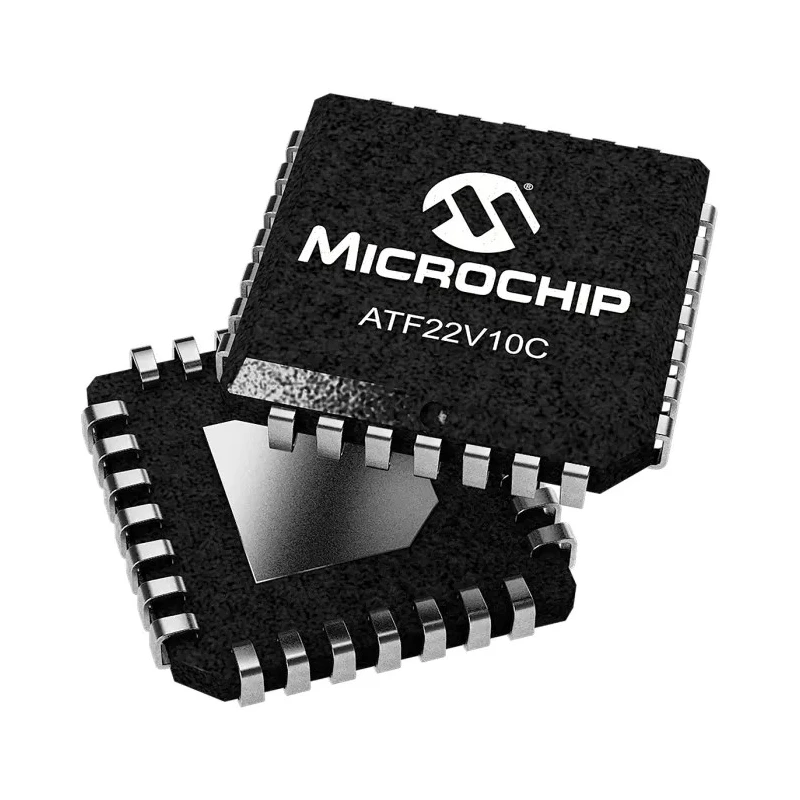

Microchip Simple Programmable Logic Device ATF22V10C-15JU 350 Gates, 10 Macro Cells, 10 I/O, 83.3 MHz ATF22V10C-15JU

Microchip ATF22V10C-15JU is a reliable simple programmable logic device designed for advanced electronic applications, featuring 350 logic gates, 10 macro cells, and 10 user I/O pins. It operates at a maximum internal frequency of 83.3 MHz, ideal for high-speed digital logic circuits.

This device supports in-system programmability and re-programmability, allowing engineers to program and modify logic configurations dynamically during development or deployment phases. The device comes in a surface mount PLCC package with 28 pins, measuring 11.58 mm in length and 4.06 mm in height, suitable for compact PCB designs.

Operating efficiently within a supply voltage range of 4.5V to 5V, it maintains low power consumption and robust performance in environments ranging from -40°C to 85°C. This SPLD complies with RoHS environmental standards, ensuring it meets modern ecological and safety requirements.

The maximum propagation delay time is only 15 nanoseconds, making it suitable for timing-sensitive applications in industrial, automotive, and consumer electronics domains. Originating from Thailand, this Microchip part offers dependable quality for embedded logic solutions.

Provides in-system programmability for flexible deployment. Supports re-programmability to adapt to design modifications. Operates over a wide temperature range from -40°C to 85°C. Features surface mount type with a 28-pin PLCC package.

Consumes low power with a supply voltage range of 4.5V to 5V. Built to RoHS standards ensuring environmental compliance. Compact dimensions with 11.58mm length and 4.06mm height. Maximum propagation delay time of 15ns for fast response.

This SPLD is widely used across electronics industries including industrial automation, consumer devices, and automotive applications where programmable logic devices are essential for custom digital control and signal processing tasks.

EnvMart offers this high-quality programmable logic device as part of its extensive semiconductor catalog to support design innovation and production efficiency.
