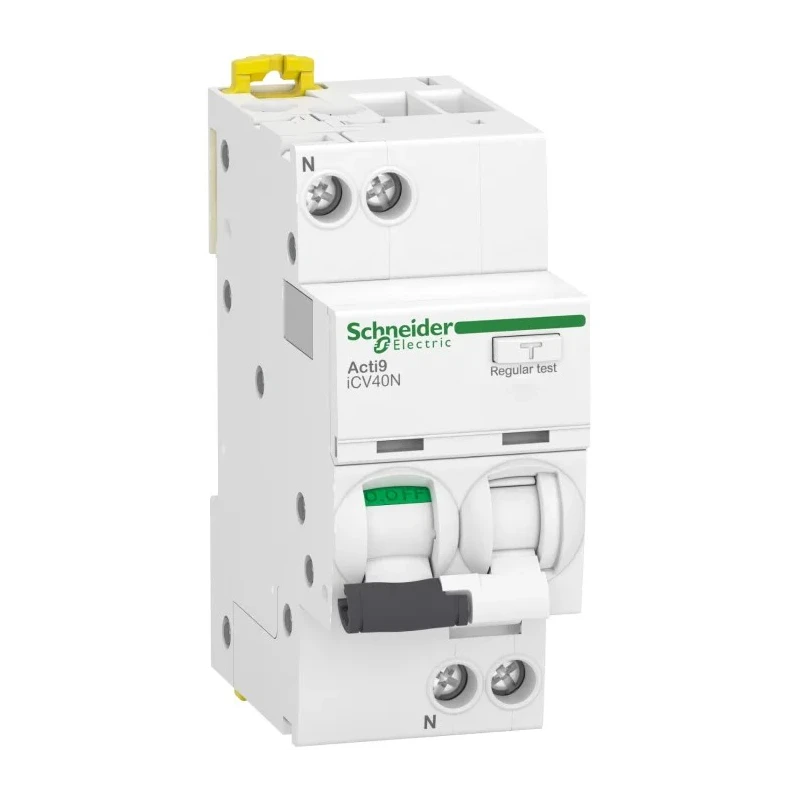

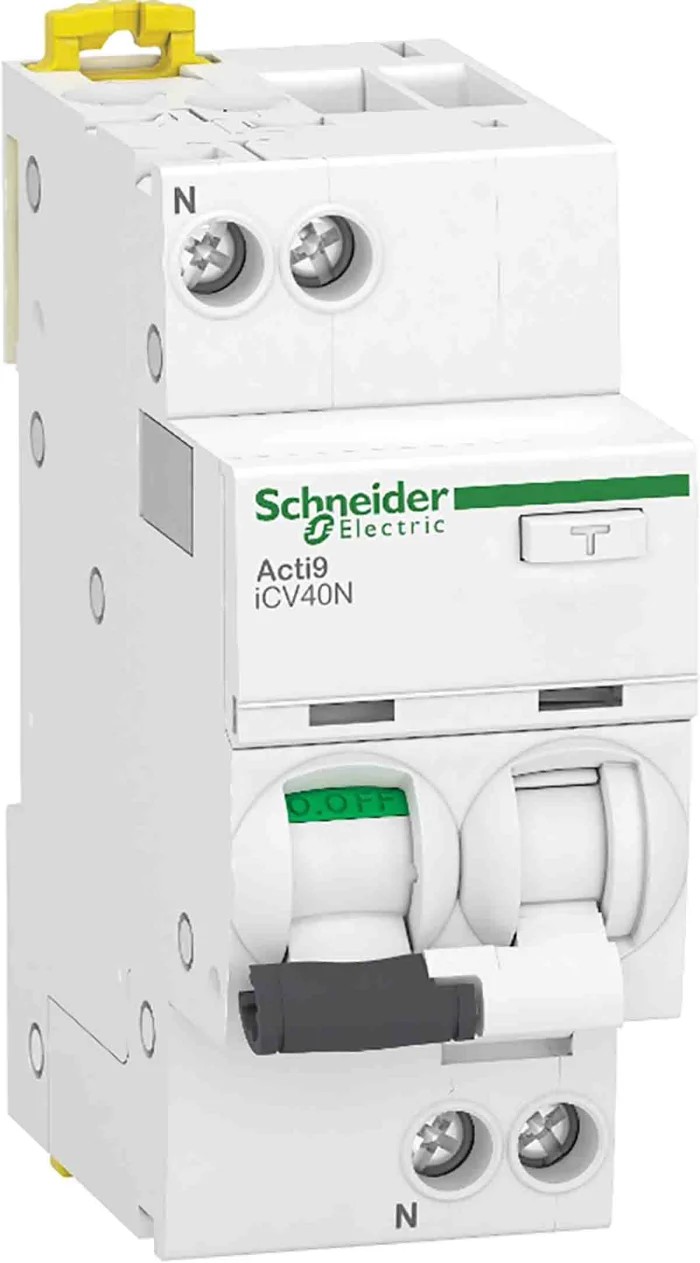

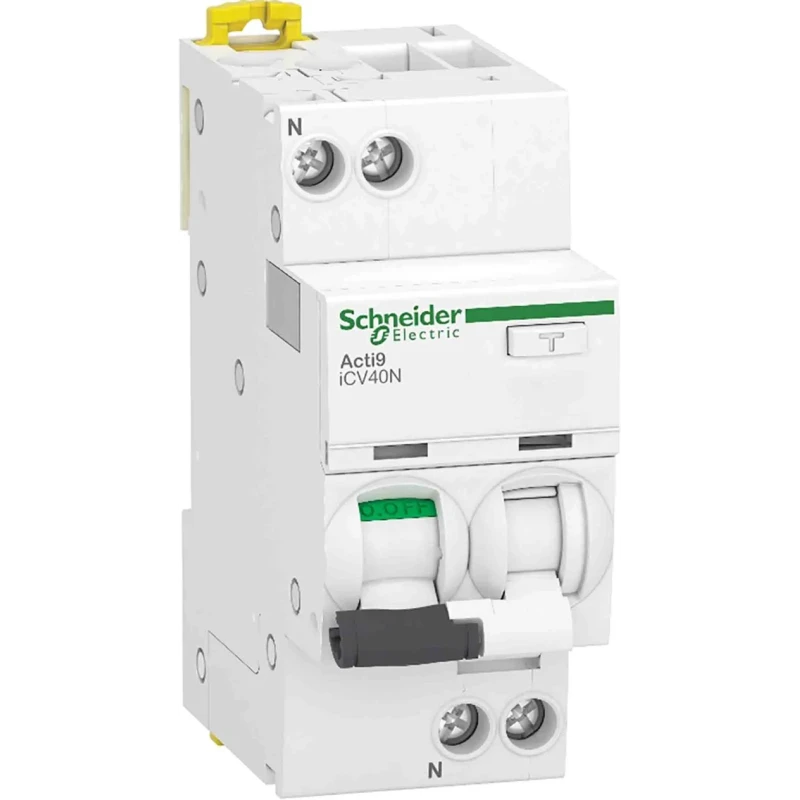

Schneider Electric Residual Current Circuit Breaker with Overload Protection, 6A, 1-Pole, 30mA Trip, DIN Rail A9DG3606

The Schneider Electric A9DG3606 Residual Current Circuit Breaker with Overload Protection is engineered for robust safety in distribution applications. This advanced RCBO offers the dual functionality of earth leakage and overload protection, ensuring comprehensive safeguarding against electrical faults that commonly occur in commercial, industrial, and residential installations.

With a 6A current rating and a single-pole design, the A9DG3606 is well-suited for circuits requiring precise control and protection. Its 30mA earth-leakage sensitivity enables rapid response to potentially hazardous fault currents, minimizing the risk of electric shock and equipment damage. The thermal magnetic tripping mechanism provides accurate protection against both overloads and short circuit events, maintaining continuity and safety of power supply.

This RCBO incorporates a DIN rail mount system, making it compatible with modern panel configurations. Its compact build, measuring 85mm in height, 73mm in depth, and 36mm in width, allows for easy integration without occupying excessive space. The screw terminal type ensures secure and stable electrical connections, reducing maintenance needs and installation time.

Rated for 230V AC, the A9DG3606 supports standard distribution voltages, and features a breaking capacity of 6kA to handle fault conditions efficiently. The device supports instantaneous protection time delay for earth leakage and utilizes a toggle actuator for straightforward control. It is specifically designed to meet RoHS and IEC approval standards, emphasizing its reliability and adherence to international quality benchmarks.

Schneider Electric's Acti9 series, including the A9DG3606, is recognized for advanced protection and durability. The RCBO is ideal for panel boards and distribution units in industries such as manufacturing, commercial buildings, and infrastructure projects. It is particularly suited for applications requiring strict safety compliance and minimal downtime.

Utilize this RCBO in electrical panels, distribution boards, and main supply panels to protect personnel, equipment, and systems from hazardous conditions such as earth leakage and overloads. Its proven technology and compliance make it an essential component for facilities demanding high reliability and safety in electrical systems.

Discover more high-performance circuit breakers and distribution protection solutions from Schneider Electric in the Residual Current Circuit Breaker category on EnvMart.
