Chinfa DC/DC Converter, 24V DC Output, 630mA, 36V DC Max Input, DIN Rail Mount, 15W Power DRD15

Free Delivery in India | Lowest Global Shipping Charges

Chinfa DC/DC Converter, 24V DC Output, 630mA, 36V DC Max Input, DIN Rail Mount, 15W Power DRD15

Name: Chinfa DC/DC Converter, 24V DC Output, 630mA, 36V DC Max Input, DIN Rail Mount, 15W Power DRD15
Brand: Chinfa
SKU: 386016
Price: 57.93 USD
Availability: InStock



Category DC/DC Converter Brand Chinfa Condition New

Specifications

Country of Origin	India
Voltage	Converters / DC-DC Converters Chinfa DRD15 DC/DC Converter, 24V dc/ 630 mA, 36V
Brand	Chinfa
Efficiency	83%
Length	91mm
Model	DRD15
Depth	56.5mm
Gross Weight	65g
Width	18mm
Mount Type	DIN Rail
Series	DRD15
Minimum Operating Temperature	71°C
Number of outputs	1
Ripple and Noise	100mV
Maximum Output Power	15W
Maximum Input Voltage	36V dc
Standards/Approvals	cUL, TUV, CE, cTUVus, UL
Minimum Input Voltage	24V dc
Output Voltage 1	24V dc
Output Current 1	630mA
Isolation Voltage	1.5kV dc
Vibration resistance meets IEC 60068-2-6 (Mounting on rail	10-500 Hz, 2G, along X, Y,Z each Axis, 60 min for each Axis)

Key Features

High efficiency up to 83% ensures minimal energy loss during operation.
Built-in short circuit protection enhances device safety and longevity.
Compact DIN Rail mountable design eases installation in industrial environments.
Ripple and noise output is limited to 100 mV for stable voltage supply.
Isolation voltage rating of 1500 V DC for electrical safety.
Compliance with cUL, TUV, CE, cTUVus, and UL standards for reliability.
Operating temperature range up to 71°C ensures performance stability.
Shock and vibration resistance meet IEC 60068-2-27 and IEC 60068-2-6 standards.

Product Description

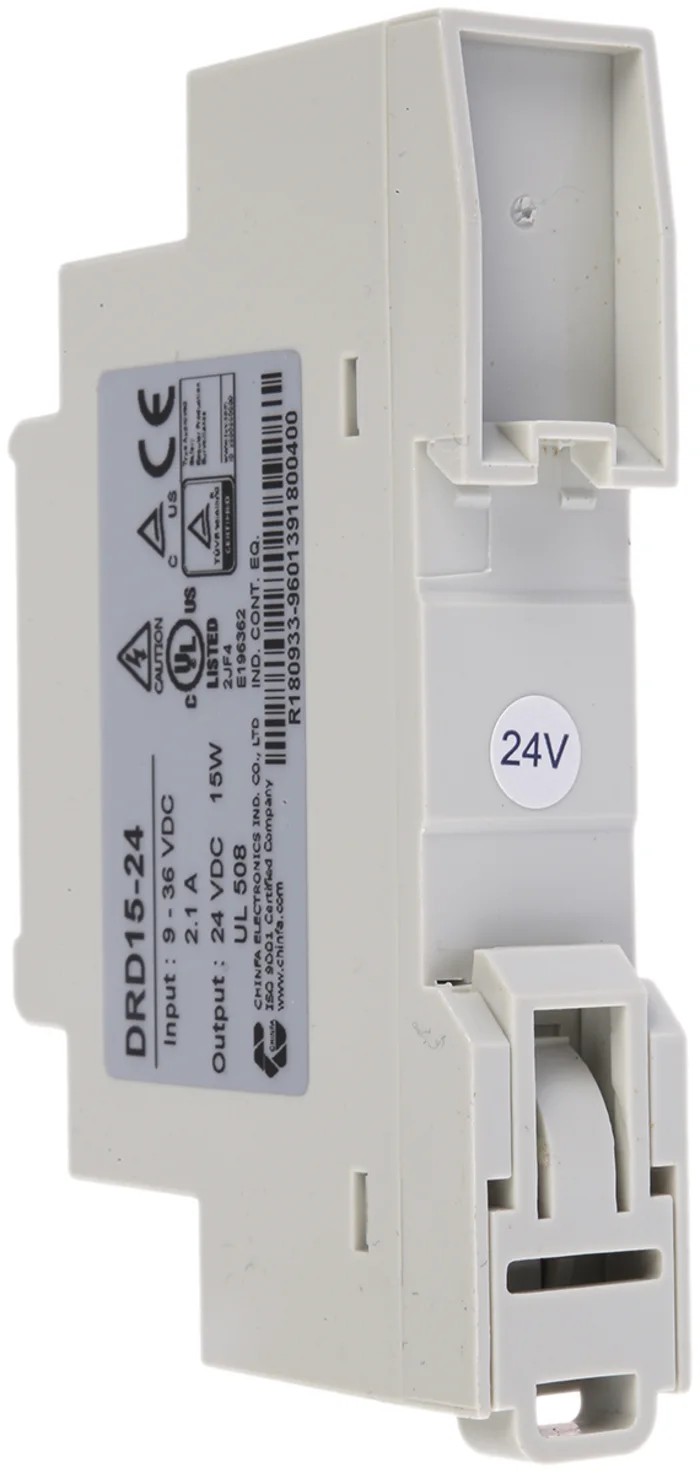

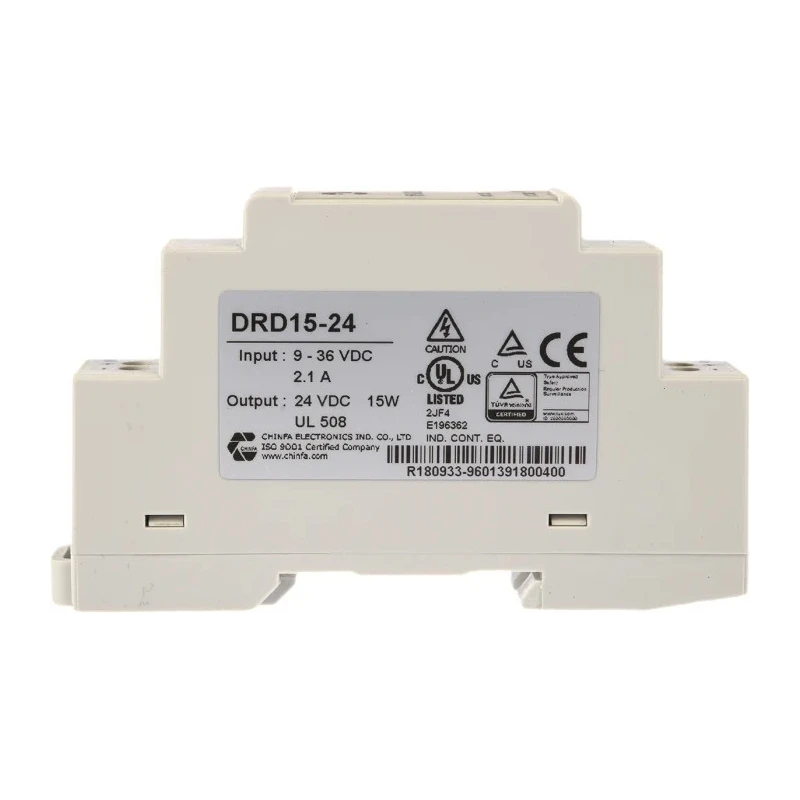

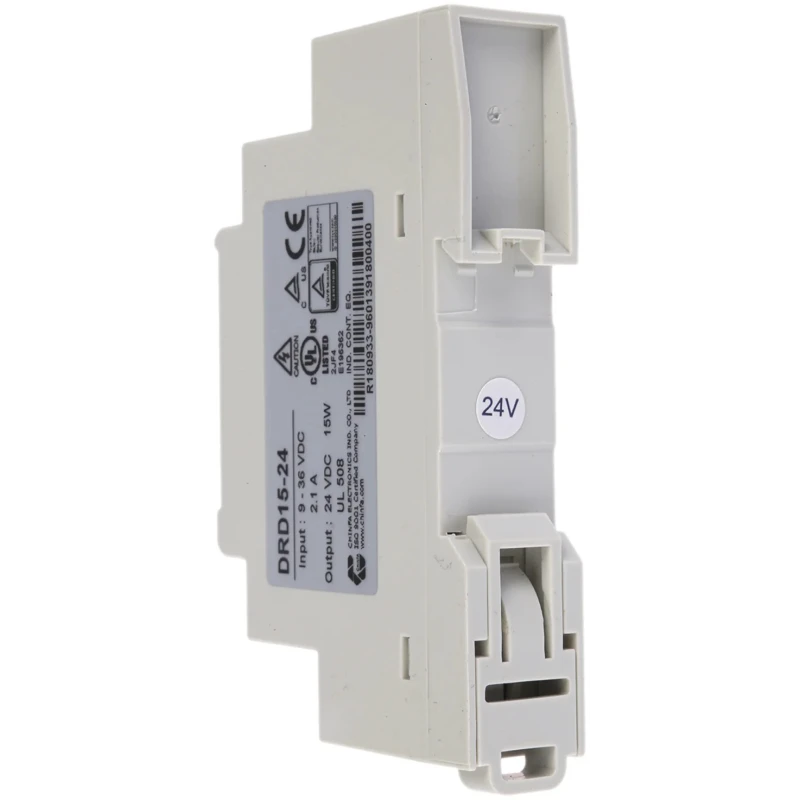

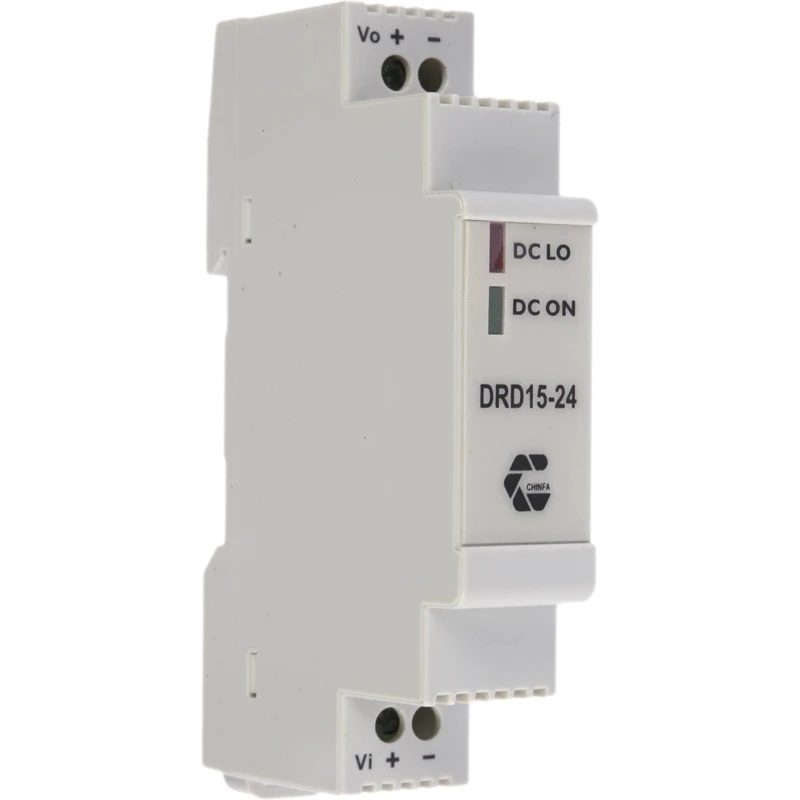

Chinfa DRD15 DC/DC Converter model DRD15 provides a rugged and reliable isolated DC/DC conversion solution with a DIN rail mount suitable for industrial and commercial electronic circuits. This converter features a 24V DC regulated output delivering 630 mA current at a maximum output power of 15W, supporting input voltages from 24V up to 36V DC. Its compact design with dimensions 91mm length x 18mm width x 56.5mm depth and a lightweight construction of 65 grams simplify system integration.

The device offers short circuit protection and is equipped with an internal input filter to mitigate power disturbances, improving system robustness. Its wide input voltage range (4:1) allows flexible operation in varying electrical environments, typically starting from 8.5V DC startup voltage. Efficiency is rated up to 83%, contributing to energy-saving operations. Indications include DC on and DC low LED indicators, enabling easy status monitoring.

Designed to operate under temperatures up to 71°C, the converter also complies with rigorous international standards including cUL, TUV, CE, and UL certifications. Shock and vibration resistance tests follow IEC 60068-2-27 and IEC 60068-2-6 standards respectively, suitable for demanding industrial applications. Isolation voltage withstands up to 1500 V DC, ensuring safe separation between input and output circuits.

Wide input voltage range and internal filtering improve reliability. Short circuit protection safeguards electrical components. Compact DIN rail mount design for easy installation. High efficiency and low ripple output voltage ensure quality power.

Meets international safety and performance standards.

Typical applications include building control systems, factory automation, and industrial controls requiring reliable isolated DC power supply. The product is manufactured with high-quality materials ensuring long-term durability and stable performance in complex environments.
