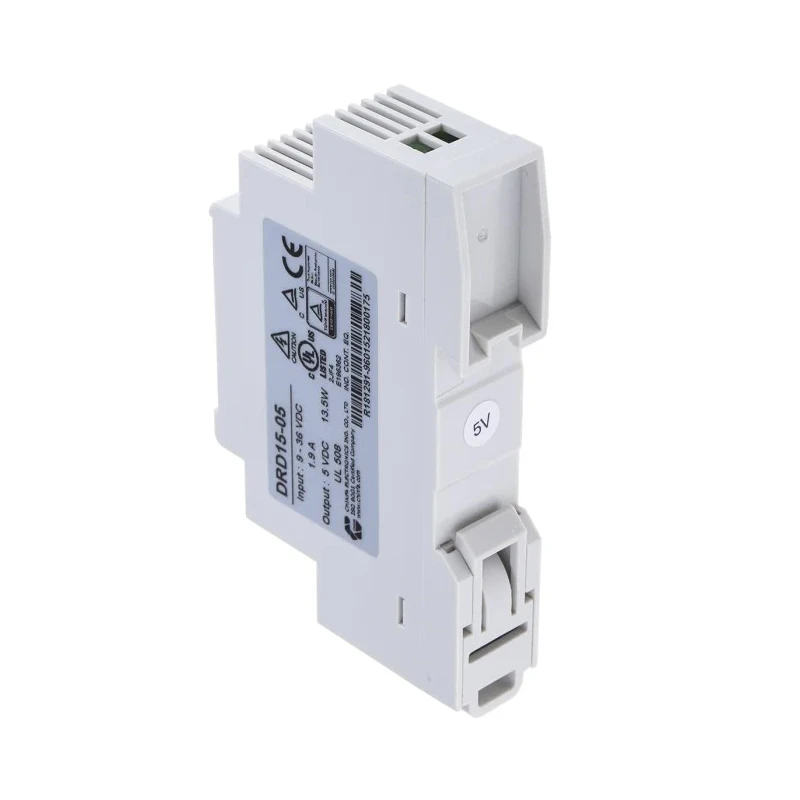

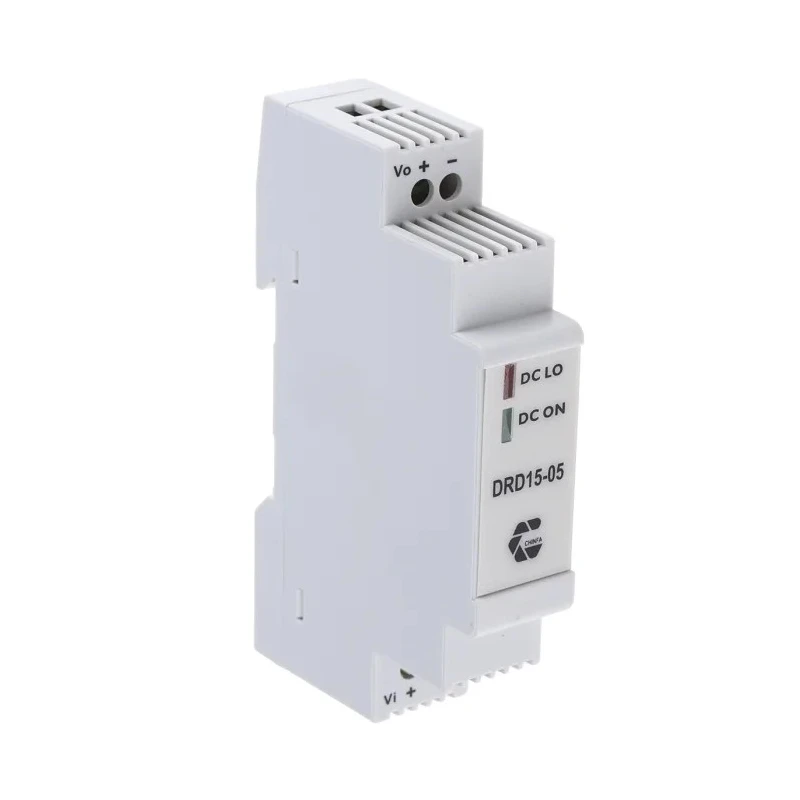

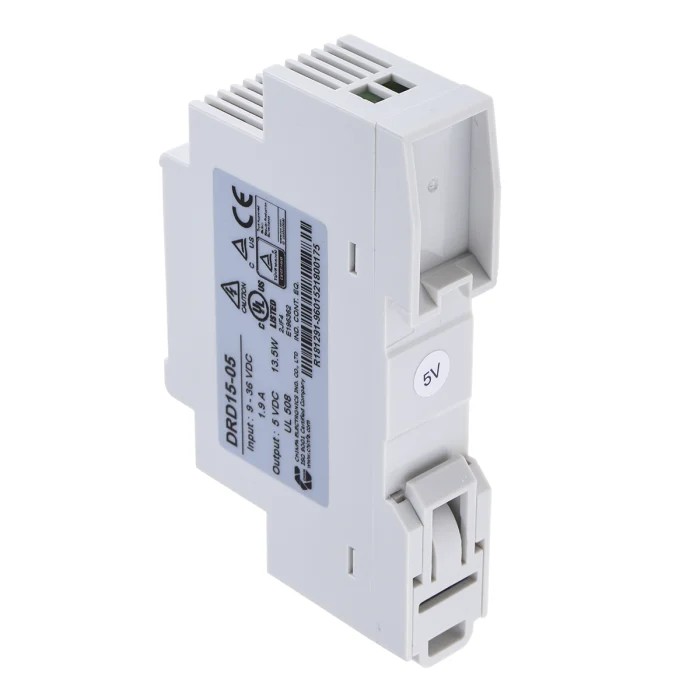

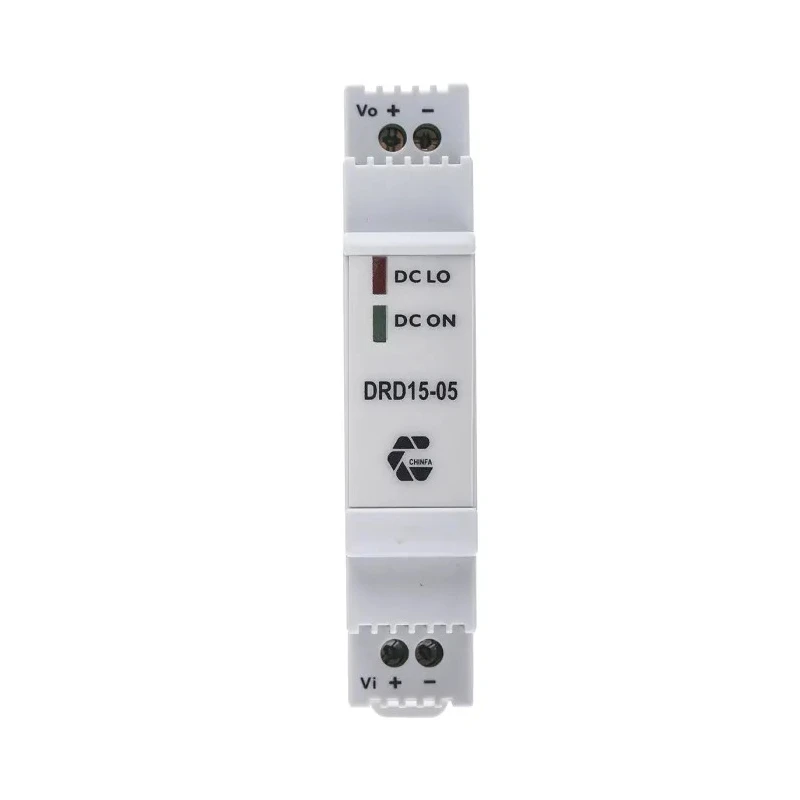

Chinfa DC/DC Converter DRD15 5V DC 2.7A Output 24-36V DC Input DIN Rail Mount 13.5W Taiwan Origin DRD15
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Chinfa DRD15 DC/DC Converter, 5V dc/ 2 |
| Brand | Chinfa |
| Efficiency | 80% |
| Length | 91mm |
| Model | DRD15 |
| Depth | 56.5mm |
| Gross Weight | 65g |
| Width | 18mm |
| Mount Type | DIN Rail |
| Series | DRD15 |
| Minimum Operating Temperature | 71°C |
| Number of outputs | 1 |
| Ripple and Noise | 100mV |
| Maximum Output Power | 13.5W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | cTUVus, TUV, UL, cUL, CE |
| Minimum Input Voltage | 24V dc |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 2.7A |
| Isolation Voltage | 1.5kV dc |
| Vibration resistance meets IEC 60068-2-6 (Mounting on rail | 10-500 Hz, 2G, along X, Y,Z each Axis, 60 min for each Axis) |
Key Features
- This DC/DC converter features a wide input voltage range from 9V to 36V DC.
- It provides regulated 5V DC output current of 2.7A suitable for industrial electronic circuits.
- The device supports DIN Rail mounting for efficient integration in electrical panels.
- The converter operates at typical 80% efficiency ensuring energy savings during operation.
- Includes short circuit protection and internal input filtering for enhanced reliability.
- Equipped with DC ON and DC LOW LED indicators for operational status monitoring.
- The compact size and low profile design optimize space usage inside control enclosures.
- It meets international standards including cTUVus, TUV, UL, cUL, and CE approvals.
Product Description
The Chinfa DRD15 DC/DC Converter model DRD15 provides a dependable power solution delivering 5V DC output current of 2.7A from an input voltage range of 24V to 36V DC. This converter is designed to be DIN Rail mountable, making it ideal for industrial and commercial electronic circuits integration.
Its compact dimensions, including 91mm length, 18mm width, and 56.5mm depth, allow for efficient installation in constrained panel spaces. The converter features short circuit protection and an internal input filter enhancing the system’s operational reliability and longevity.
With typical energy conversion efficiency rated around 80%, it reduces power wastage and contributes towards energy savings in continuous industrial operations. LED indicators for DC ON and DC LOW provide clear visual status of power conditions.
The device complies with multiple international standards such as cTUVus, TUV, UL, cUL, and CE, ensuring safety and quality for industrial environments. It offers isolation voltage of 1.5kV DC, vibration resistance as per IEC 60068-2-6, and shock resistance meeting IEC 60068-2-27, supporting harsh industrial conditions.
This DC/DC converter supports a wide input range from 9 to 36V DC with a start-up voltage of 8.5V DC. It provides stable 5V DC output at 2.7A current for powering various control and automation devices. DIN Rail mounting capability facilitates easy installation in electrical cabinets and control panels.
Features short circuit protection and internal filtering for secure, uninterrupted operation. Includes visual DC ON and DC LOW indication LEDs for operational feedback. Robust design meets industrial standards for shock and vibration resistance.
Meets IEC 61000-4-5 surge voltage protection requirements. Efficiency typically reaches 80%, promoting energy-efficient industrial usage. Compact size and low profile suit space-restricted electrical systems. Ideal for use in building control systems, factory automation setups, and industrial electronics.
Manufactured in Taiwan, this Chinfa DRD15 series DC/DC Converter ensures high quality and reliability for demanding industrial power supply needs. Explore the comprehensive range of industrial power solutions on EnvMart for optimized system integration.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 24V to 36V DC.
It provides a regulated output current of 2.7A at 5V DC.
The efficiency of the DRD15 is typically rated at around 80%.
This model has dimensions of 91mm in length, 18mm in width, and 56.5mm in depth.
The converter is designed for DIN Rail mounting, facilitating easy installation in electrical panels.
It meets multiple international standards, including cTUVus, TUV, UL, cUL, and CE.
The isolation voltage for the DRD15 is 1.5kV DC.
It features DC ON and DC LOW LED indicators for operational status monitoring.
This model includes short circuit protection and internal input filtering for enhanced reliability.
The maximum output power of this converter is 13.5W.
The ripple and noise for the output is specified at 100mV.
It meets vibration resistance standards as per IEC 60068-2-6, with specifications for 10-500 Hz and 2G along all axes.
