Toko WE-MK 0603 Unshielded Multilayer Surface Mount Inductor with Ceramic Core 15 nH ±5% 600mA 120°C 744786115

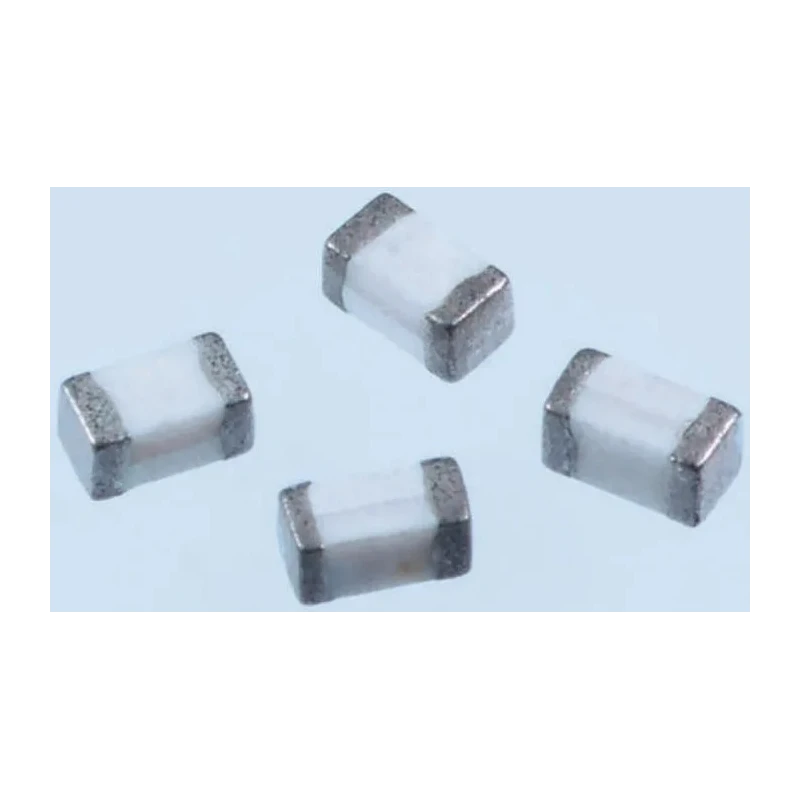

Wurth Elektronik 744786115 WE-MK series 0603 multilayer ceramic surface mount inductor features a ceramic core and provides an inductance of 15 nH with a tolerance of ±5%. It is designed for high frequency applications such as tuners, HF amplifiers, transponders, oscillators, Bluetooth, wireless LAN, and filtering circuits within laptops, pagers, and PCMCIA cards.

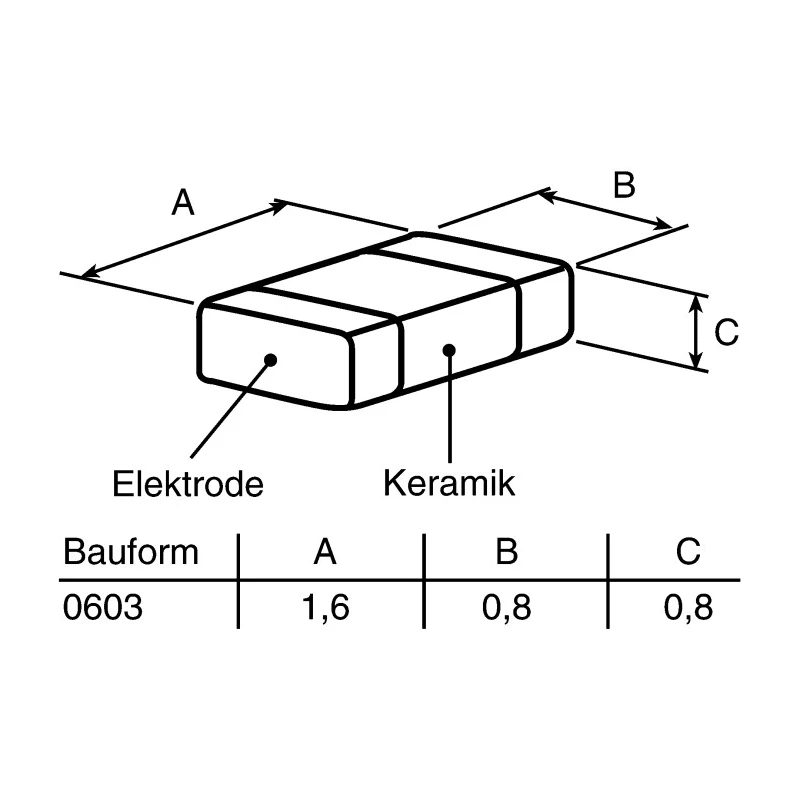

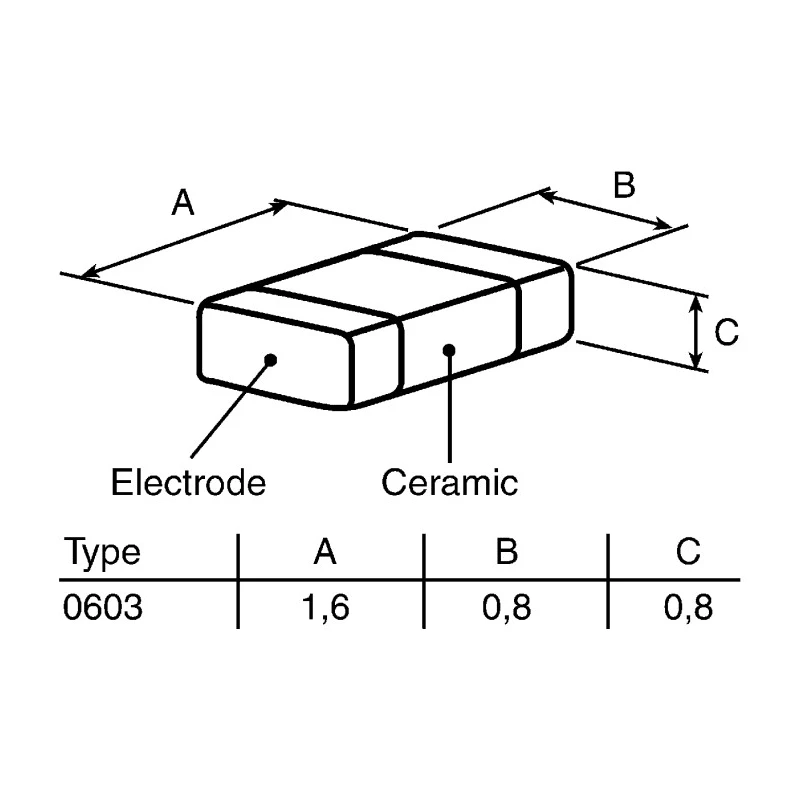

This unshielded multilayer inductor comes in a compact 0603 package with dimensions of 1.6mm length and 0.8mm height and depth, making it suitable for dense PCB layouts. Its construction allows a maximum DC current of 600mA and can operate reliably within a temperature range from -40°C to 120°C. The device exhibits a maximum DC resistance of 550 milliohms and features a high self-resonant frequency of up to 2.9 GHz with a minimum quality factor of 8, ensuring stable and efficient performance in demanding RF environments.

The WE-MK series inductors use printed windings on a ceramic substrate, making them compliant with industry standards like REACH and RoHS. They are automotive qualified with AEC-Q200 recognition, ensuring quality and reliability for automotive electronic systems. The surface mount termination style supports wave and reflow soldering processes for efficient volume manufacturing.

This product is ideal for electronic manufacturing industries focusing on communications, computer peripherals, and automotive electrical applications requiring compact, high frequency inductive components with stable performance over temperature and frequency ranges.

Designed for high frequency circuits such as tuners and HF amplifiers. Compact 0603 package size with 1.6mm length and 0.8mm height/depth. Maximum operating temperature of 120°C and minimum of -40°C. Unshielded construction with high self-resonant frequency up to 2.9 GHz.

Compliant with REACH and RoHS standards for environmental safety. Automotive grade with AEC-Q200 certification. Ceramic core material providing stable inductance over temperature. Surface mount termination style suitable for reflow or wave soldering.

Maximum DC resistance of 550 mΩ ensuring efficient performance. Explore more multilayer surface mount inductors and electronic components on EnvMart for industrial, automotive, and communication applications.
