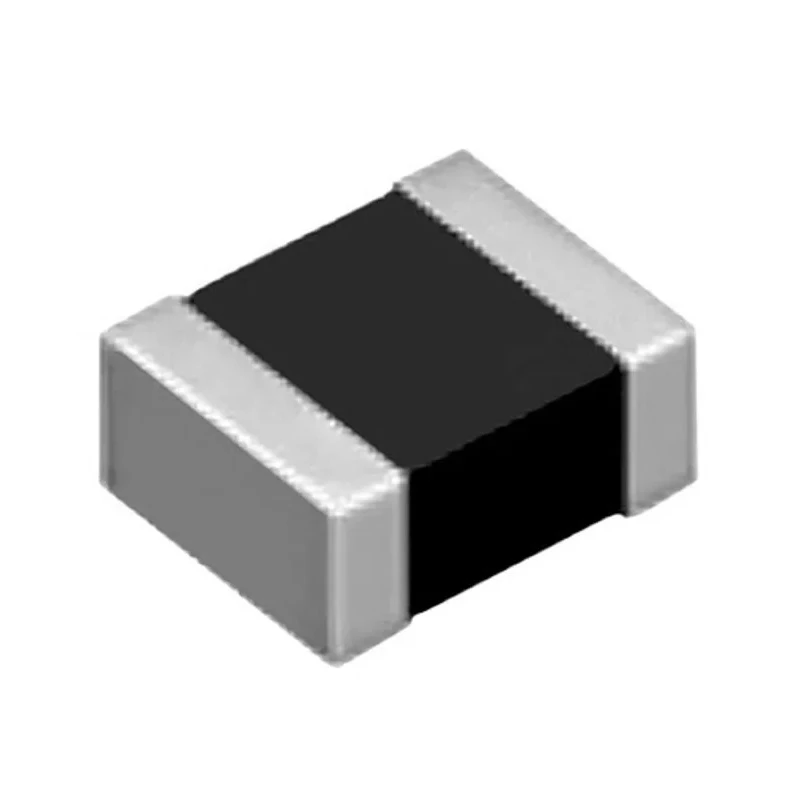

Toko 2012 Shielded Wirewound Surface Mount Inductor with Powdered Iron Core 1 μH ±20 % 4.8 A Idc DFE252012P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Toko |
| Height | 1.2mm |
| Length | 2.5mm |
| Model | DFE252012P |
| Depth | 2mm |
| Packaging | Embossed Tape |
| Series | DFE252012P |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Powdered Iron |
| Inductance | 1μH |
| Standards/Approvals | RoHS |
| Package/Case | 2012 |
| Maximum DC Current | 4.8A |
| Pin Count | 2 |
| Maximum DC Resistance | 42mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Inductor Construction | Wirewound |
Key Features
- Compact 2012 package size with dimensions 2.5 mm length, 2.0 mm depth and 1.2 mm height.
- Constructed with wirewound coils on a powdered iron core ensuring low DC resistance of 42 mΩ.
- Designed for surface mount technology with solder termination style and embossed tape packaging.
- Operates efficiently in temperature range from -40°C to 125°C.
- Shielded for interference reduction and compliant with RoHS standards.
- Suitable for high current applications due to metal alloy core construction.
- Moulded design provides mechanical robustness and reflow solderability.
- Two-pin configuration allows easy integration into compact PCB layouts.
Product Description
Toko DFE252012P is a shielded wirewound surface mount inductor designed with a powdered iron core, offering an inductance of 1 μH with ±20 % tolerance and a maximum DC current rating of 4.8 A. The device comes in a compact 2012 package measuring 2.5 mm in length, 2.0 mm in depth, and 1.2 mm in height, suitable for high-density PCB applications.
This inductor features construction using wirewound coils on a magnetic iron powder core, enabling low DC resistance of 42 milliohms and enhancing current handling capability. It is designed for surface mount technology with solder terminations and supplied on embossed tape packaging for automated assembly.
The product operates reliably over a wide temperature range from -40°C to 125°C, suitable for industrial, automotive, and consumer electronic applications that demand efficient electromagnetic interference shielding and noise reduction.
Toko DFE252012P inductors are RoHS compliant and moulded for mechanical stability, making them ideal components for power supply filtering, DC-DC converters, and EMI suppression in electronic circuit designs.
Compact 2012 package allows for space-saving PCB layouts. Wirewound construction provides low resistance and high current capacity. Shielding reduces electromagnetic interference. Wide operating temperature range suitable for harsh environments.
Embossed tape packaging enhances manufacturing efficiency. Moulded design ensures durability during reflow soldering. Compliant with international environmental standards. Two-pin termination facilitates easy mounting and connection.
This surface mount inductor is ideal for use in electronic components assemblies for industrial automation, power management, automotive electronics, consumer electronics manufacturing, and telecommunications equipment.
Explore the full range of Toko Surface Mount Inductors and related electronic components at EnvMart for reliable performance and quality assurance in your designs.
