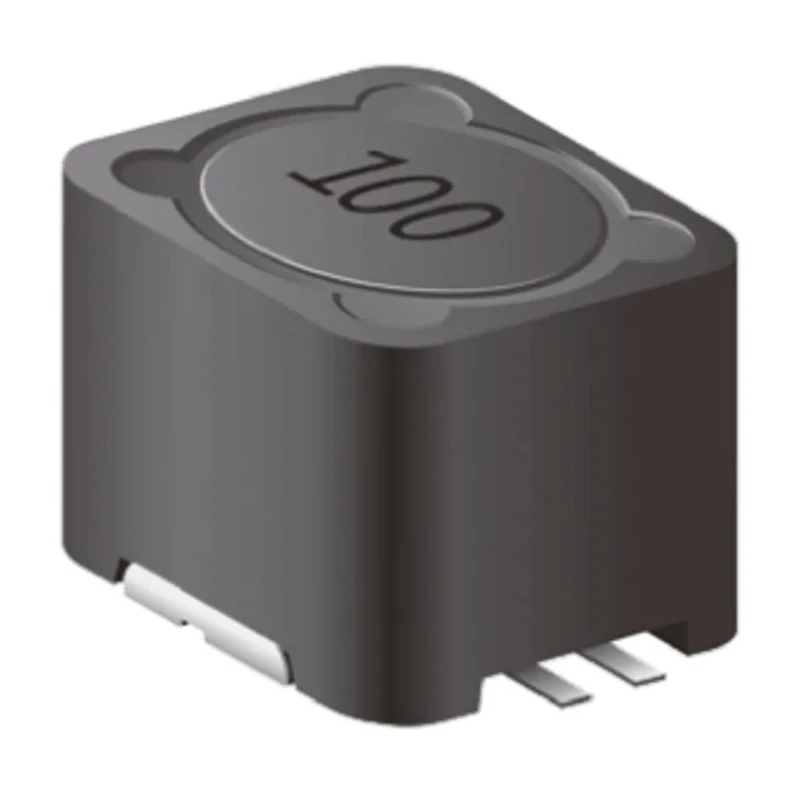

Bourns Shielded Wirewound Surface Mount Inductor 56μH ±20% 3.4A IDC Ferrite Core 1210 Package SRR1210
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 10mm |
| Length | 12mm |
| Model | SRR1210 |
| Depth | 12mm |
| Packaging | Reel |
| Series | SRR1210 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 56μH |
| Standards/Approvals | RoHS |
| Package/Case | 1210 |
| Maximum DC Current | 3.4A |
| Maximum DC Resistance | 90mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 4MHz |
| Minimum Quality Factor | 8 |
| Inductor Construction | Wirewound |
Key Features
- Magnetically shielded wirewound construction reduces EMI.
- Low profile 1210 package size with a height of 10mm.
- Reel packaging optimizes high-volume production.
- RoHS compliant and environmentally safe.
- Operating temperature range from -40°C to 125°C.
- Ferrite core for stable inductance and performance up to 4MHz.
- Maximum DC current rating of 3.4A.
- Maximum DC resistance of 90mΩ for efficient operation.
Product Description
Bourns SRR1210 is a shielded wirewound surface mount inductor designed with a ferrite core, providing an inductance of 56μH ±20% and a maximum DC current rating of 3.4A. The compact 1210 package size measures 12mm in length, 12mm in depth, and 10mm in height, making it suitable for space-constrained electronic assemblies.
This inductor utilizes a magnetically shielded wirewound construction, effectively reducing electromagnetic interference and improving performance in sensitive applications. The device is moulded for durability and comes in reel packaging to facilitate efficient high-volume automated assembly processes.
Operating over a temperature range from -40°C to 125°C, it meets RoHS standards, ensuring environmental compliance. The maximum DC resistance is 90mΩ, maintaining low power loss during operation, while the ferrite core supports operation up to a self-resonant frequency of 4 MHz and a minimum quality factor of 8.
The SRR1210 series is typically used in the input/output stages of DC/DC converters, power supplies, portable communication devices, camcorders, LCD TVs, and car radios. Its surface mount termination style ensures reliable mounting on printed circuit boards.
Magnetically shielded wirewound construction reduces EMI. Compact 1210 package size with low profile height of 10mm. Suitable for DC/DC converters and power supplies. Ferrite core material provides stability and high frequency performance.
Wide operating temperature range from -40°C to 125°C. Reel packaging supports automated manufacturing. RoHS compliant for environmental safety. Low DC resistance of 90mΩ for efficiency. Minimum quality factor of 8 ensures reliable inductance.
Moulded design for mechanical robustness.
This Bourns inductor is an essential component for industrial, consumer electronics, telecommunications, and automotive electronic systems. Explore more Surface Mount Inductors and related electronic components on EnvMart to find compatible parts for your projects and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductor has an inductance value of 56μH with a tolerance of ±20%.
This model has a maximum DC current rating of 3.4A.
The maximum DC resistance is 90mΩ, which helps maintain efficient operation.
The dimensions of this inductor are 12mm in length, 12mm in depth, and 10mm in height.
It operates over a temperature range from -40°C to 125°C.
The maximum self-resonant frequency for this inductor is 4MHz.
This inductor uses a ferrite core, which provides stability and performance at high frequencies.
The termination style is surface mount, ensuring reliable mounting on printed circuit boards.
Yes, this inductor is RoHS compliant, ensuring it meets environmental safety standards.
It comes in reel packaging, which optimizes it for high-volume automated assembly processes.
This inductor is typically used in the input/output stages of DC/DC converters, power supplies, and various consumer electronics.
The minimum quality factor is 8, which ensures reliable inductance performance.
