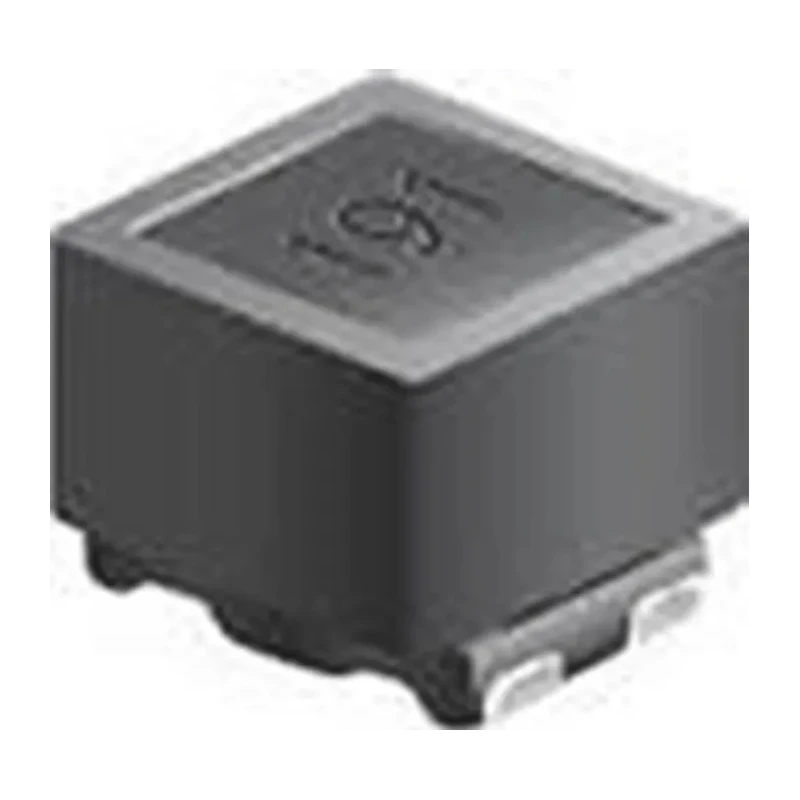

Bourns Shielded Surface Mount Common Mode Line Filter 600 nH ±35% 5 A Idc 0504 Package SRF0504
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 4.7mm |
| Length | 5mm |
| Model | SRF0504 |
| Depth | 5.2mm |
| Packaging | Reel |
| Series | SRF0504 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance Range | 0.60 to 6.0 μH |
| Inductance | 600nH |
| Standards/Approvals | RoHS |
| Package/Case | 0504 |
| Maximum DC Current | 5A |
| Pin Count | 2 |
| Maximum DC Resistance | 20mΩ |
| Inductance Tolerance | ±35 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 1.2GHz |
| Inductor Construction | Wirewound |
Key Features
- Features a ferrite core for EMI suppression in electronic circuits.
- Inductance value of 600 nanohenries with ±35% tolerance.
- Supports a maximum DC current of 5 amperes.
- Package size is 0504 with dimensions approximately 5 mm length, 4.7 mm height, and 5.2 mm depth.
- Wire-wound inductor construction ensures stable electrical characteristics.
- Maximum DC resistance is 20 milliohms, minimizing power loss.
- Operates reliably over a temperature range from -40°C to 125°C.
- Shielded design reduces electromagnetic interference for sensitive signal applications.
Product Description
Bourns SRF0504 is a shielded surface mount common mode line filter designed for EMI suppression applications in electronic circuits. It features a ferrite core and wire-wound inductor construction for stable inductance and current handling.
This inductor has an inductance rating of 600 nH with ±35% tolerance and supports a maximum DC current of 5 A. Its package size is 0504, with typical dimensions of 5 mm length, 4.7 mm height, and 5.2 mm depth, making it suitable for compact PCB layouts in consumer electronics, industrial, and automotive electronics.
The device operates over a wide temperature range of -40°C to 125°C, making it reliable for harsh environmental conditions. The inductors' maximum DC resistance of 20 mΩ ensures low power loss and high efficiency. Furthermore, the maximum self-resonant frequency of 1.2 GHz makes it suitable for high-frequency EMI filtering in power line circuits.
This component is supplied in a reel packaging format, facilitating automated PCB assembly processes and improving production efficiency.
Key features include RoHS compliance, solder termination style for ease of mounting, and a shielded design to minimize electromagnetic interference, supporting performance in sensitive electronic applications.
Features a ferrite core for EMI suppression in electronic circuits. Inductance value of 600 nanohenries with ±35% tolerance. Supports a maximum DC current of 5 amperes. Package size is 0504 with dimensions approximately 5 mm length, 4.7 mm height, and 5.2 mm depth.
Wire-wound inductor construction ensures stable electrical characteristics. Maximum DC resistance is 20 milliohms, minimizing power loss. Operates reliably over a temperature range from -40°C to 125°C. Shielded design reduces electromagnetic interference for sensitive signal applications.
RoHS compliant and uses solder termination style for easy PCB mounting. Maximum self-resonant frequency of 1.2 GHz suitable for high-frequency applications.
This product is ideal for use in electronic manufacturing, telecommunications, automotive electronics, industrial power line EMI filtering, and any application requiring reliable surface mount inductors to suppress common mode noise.
Explore more Surface Mount Inductors and line filters at EnvMart for diverse electronics design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Bourns SRF0504 has an inductance value of 600 nanohenries with a tolerance of ±35%.
This model supports a maximum DC current of 5 amperes.
The dimensions of the 0504 package are approximately 5 mm in length, 4.7 mm in height, and 5.2 mm in depth.
The maximum DC resistance of this inductor is 20 milliohms, which helps to minimize power loss.
It operates reliably over a temperature range from -40°C to 125°C.
The maximum self-resonant frequency of this component is 1.2 GHz, suitable for high-frequency applications.
This inductor features a wire-wound construction, ensuring stable electrical characteristics.
The core material of this inductor is ferrite, which aids in EMI suppression.
Yes, the Bourns SRF0504 is RoHS compliant, ensuring it meets environmental standards.
It uses a solder termination style, facilitating easy mounting on PCBs.
This model is suitable for applications in electronic manufacturing, telecommunications, automotive electronics, and industrial power line EMI filtering.
The Bourns SRF0504 is supplied in a reel packaging format, which facilitates automated PCB assembly processes.
