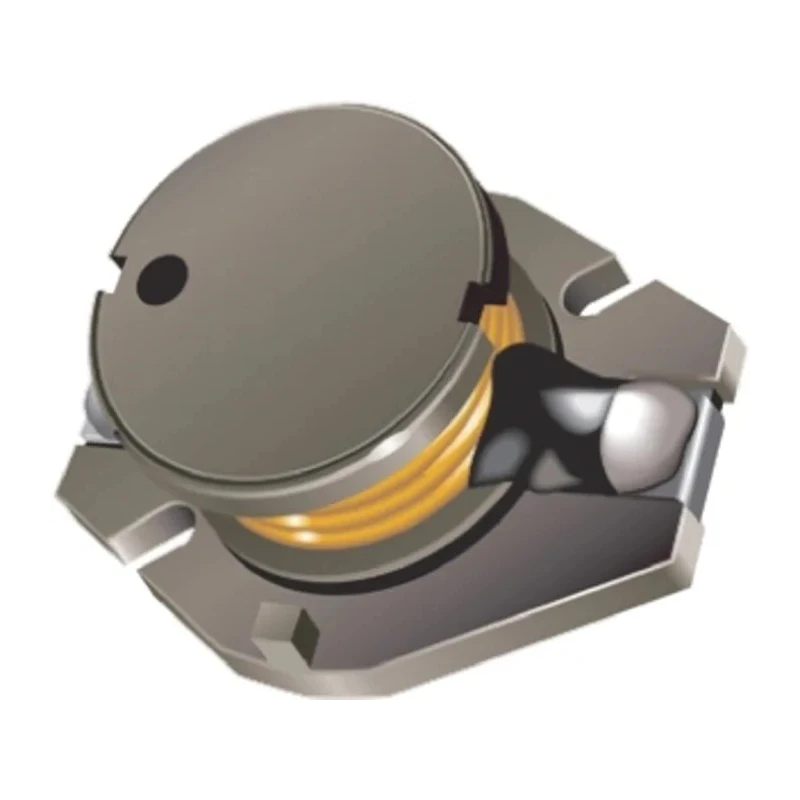

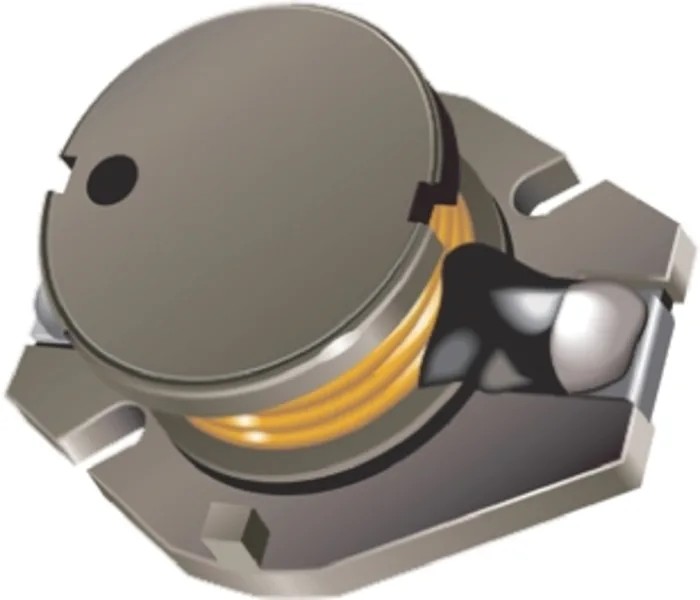

Bourns Wirewound Surface Mount Inductor SDR1005 33μH ±10% Ferrite DR Core 1.8A DC 14MHz Q29 SDR1005

Bourns SDR1005 wirewound surface mount inductor is engineered for industrial and electronic applications requiring stable inductance and current handling capabilities. Featuring a 33μH inductance with ±10% tolerance and a ferrite DR core, it performs reliably in high-frequency environments up to 14MHz with a quality factor of 29.

This inductor is housed in a compact 1005 package with dimensions 12.7mm length, 5mm height, and 10mm depth, making it suitable for space-constrained PCB applications. The construction is moulded and wirewound with surface mount terminations to facilitate automated assembly.

Key performance metrics include a maximum DC current rating of 1.8A and a DC resistance of 120mΩ, ensuring efficient power management and minimal losses. It operates reliably across a wide temperature range from -40°C to 125°C, fulfilling requirements for both consumer and industrial electronic devices.

The device complies with JEDEC standards and RoHS directives, ensuring environmental safety and quality assurance. Its robust construction and specifications make it an excellent choice for usage in DC/DC converters, power supplies, and input/output filtering.

Ferrite DR core improves magnetic performance and efficiency. Compact 1005 package ideal for surface mount technology. Maximum DC resistance minimizes power loss during operation. Wide operating temperature range extends usability in various environments.

High quality factor ensures low signal loss at high frequencies. Compliance with JEDEC and RoHS standards guarantees reliability and sustainability. Moulded wirewound design provides durability for electronic circuits. Suitable for power supply and signal filtering applications.

Facilitates compact, efficient designs in modern electronics manufacturing.

This Bourns surface mount inductor is widely applicable in electronics manufacturing, industrial power supply design, telecommunications equipment, and automotive electronic circuits. Its high current rating and quality construction support demanding applications requiring reliable energy storage and filtering components.
