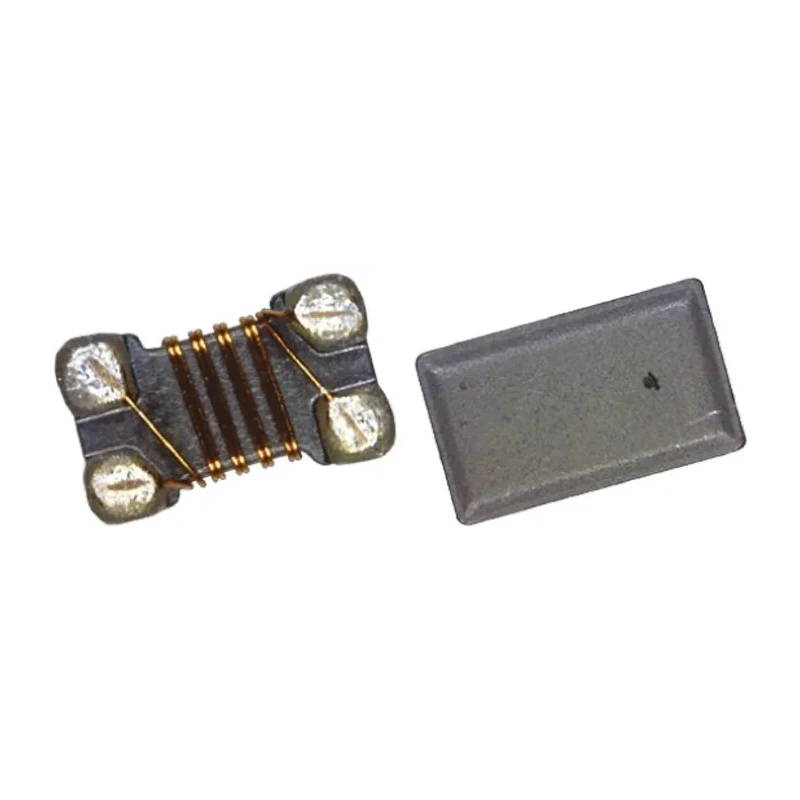

Murata 0805 Shielded Surface Mount Common Mode Choke ±25% Inductance Tolerance 330mA Idc DLW21S
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 1.2mm |
| Length | 2mm |
| Model | DLW21S |
| Depth | 1.2mm |
| Packaging | Embossed Tape |
| Series | DLW21S |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Package/Case | 0805 |
| Maximum DC Current | 330mA |
| Pin Count | 4 |
| Maximum DC Resistance | 350mΩ |
| Inductance Tolerance | ±25 % |
| Termination Style | Tin plating |
| Inductor Construction | Wirewound |
Key Features
- Compact 0805 package size ideal for PCB mounting.
- Shielded design ensures minimal interference and high noise suppression.
- Wirewound inductor construction with tin-plated terminations.
- Operating temperature range from -40°C to 85°C for versatile applications.
- Maximum DC resistance of 350 milliohms ensures efficient performance.
- Embossed tape packaging supports automated assembly processes.
- Four-pin configuration facilitates stable electrical connections.
- Complies with RoHS standards for environmental safety.
Product Description
Murata DLW21S Surface Mount Common Mode Choke is engineered for noise suppression in differential signal lines without causing distortion, making it suitable for high-speed data transmission applications.
This 0805 size choke supports a maximum DC current of 330mA and offers an inductance tolerance of ±25%, ensuring reliable performance in compact circuit designs. The device features a shielded, wirewound construction with tin plating for terminations, contributing to enhanced durability and minimal electromagnetic interference.
Operating temperature range of -40°C to 85°C allows deployment in various industrial and consumer electronics, including USB lines for PCs, peripheral devices, LVDS lines of notebook PCs, LCDs, and small digital AV equipment such as digital cameras.
Supplied in embossed tape packaging, this component is ideal for automated insertion in manufacturing environments. It complies with RoHS regulations, ensuring compliance with environmental and safety standards. The product is made in Japan, reaffirming its quality and reliability.
Compact 0805 package size ideal for PCB mounting. Shielded design ensures minimal interference and high noise suppression. Wirewound inductor construction with tin-plated terminations. Operating temperature range from -40°C to 85°C for versatile applications.
Maximum DC resistance of 350 milliohms ensures efficient performance. Embossed tape packaging supports automated assembly processes. Four-pin configuration facilitates stable electrical connections. Complies with RoHS standards for environmental safety.
This surface mount common mode choke is extensively used in electronics manufacturing, laboratory equipment, computing devices, and automotive electronics for EMI noise reduction and signal integrity preservation.
Explore more advanced electronic components and inductors in the Surface Mount Inductors category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum DC current rating for this model is 330mA, ensuring it can handle significant current levels in various applications.
This common mode choke operates within a temperature range of -40°C to 85°C, making it suitable for diverse industrial and consumer electronics applications.
The inductor comes in a compact 0805 package size, which is ideal for PCB mounting in space-constrained designs.
It features a wirewound inductor construction, which contributes to its performance in noise suppression applications.
The inductance tolerance for this model is ±25%, ensuring reliable performance in circuit designs.
The maximum DC resistance is 350 milliohms, which supports efficient performance in electronic circuits.
It is supplied in embossed tape packaging, which facilitates automated assembly processes in manufacturing environments.
This model has a four-pin configuration, which helps ensure stable electrical connections in applications.
Yes, it complies with RoHS standards, ensuring it meets environmental safety regulations.

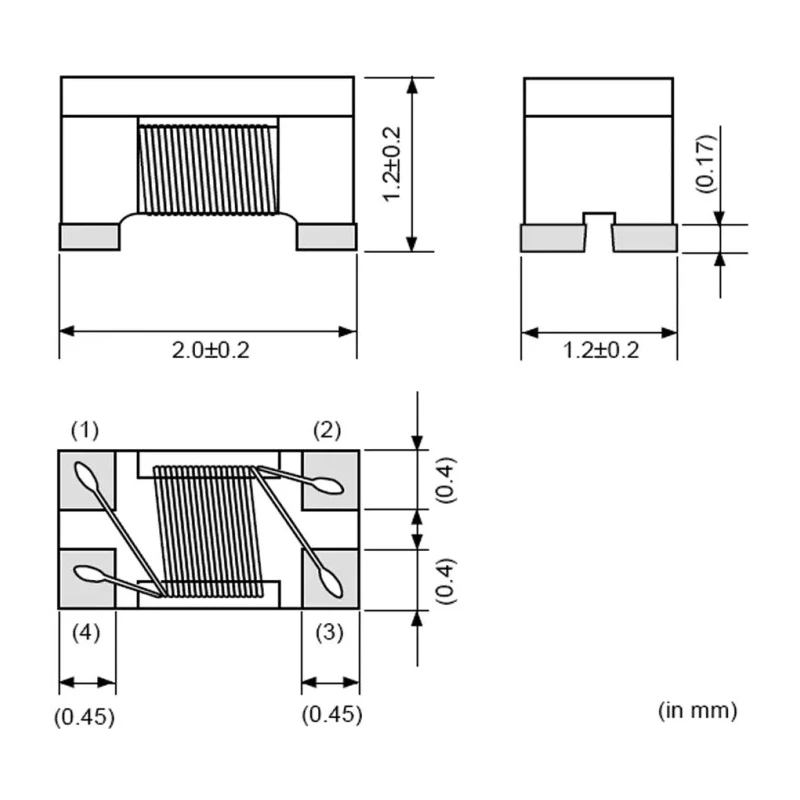

The dimensions of this common mode choke are 2mm in length, 1.2mm in height, and 1.2mm in depth.
It is suitable for applications in high-speed data transmission, including USB lines for PCs, LVDS lines of notebook PCs, and small digital AV equipment.
This component is manufactured in Japan, reaffirming its quality and reliability in electronic applications.
