TDK Surface Mount Common Mode Line Filter with Ferrite Core 150mA Maximum DC Current ACM2520-801-3P-T

Free Delivery in India | Lowest Global Shipping Charges

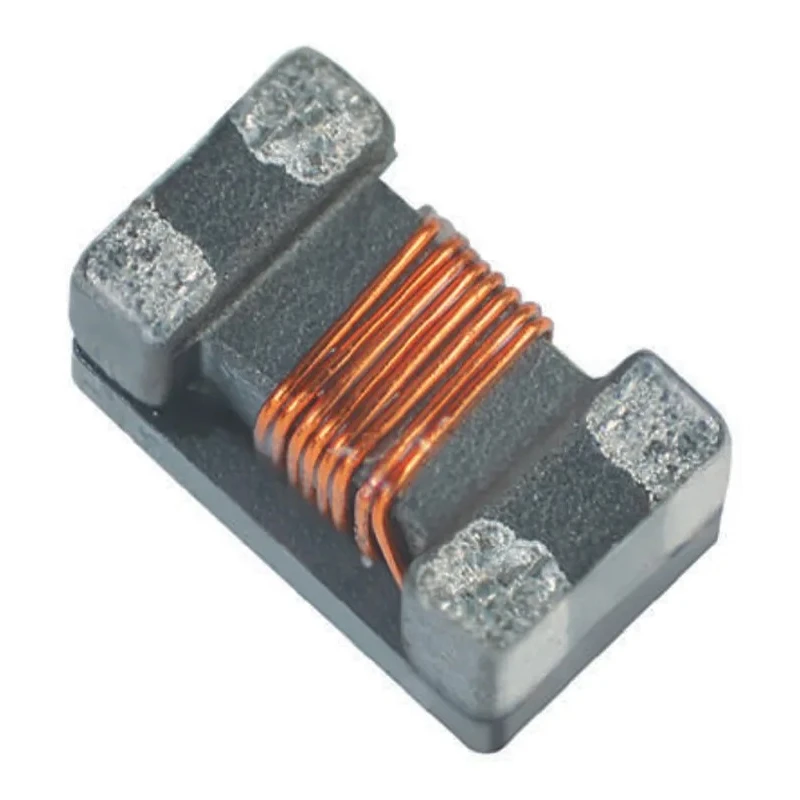

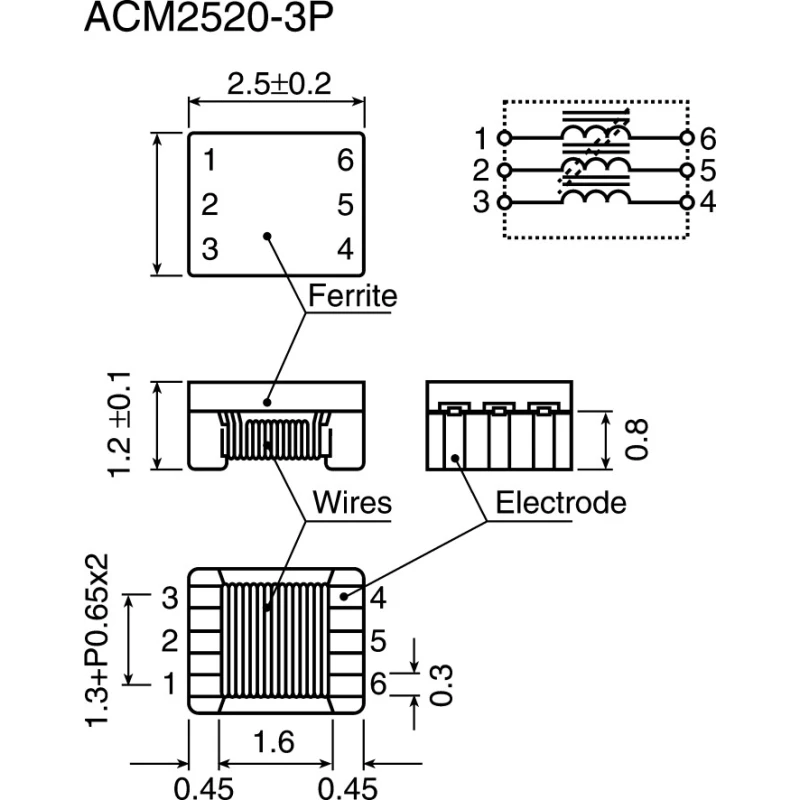

TDK Surface Mount Common Mode Line Filter with Ferrite Core 150mA Maximum DC Current ACM2520-801-3P-T



Category Surface Mount Inductors Brand TDK Condition New

Specifications

Country of Origin	Japan
Brand	TDK
Height	1.2mm
Length	2.5mm
Model	ACM2520-801-3P-T
Depth	2mm
Packaging	Reel
Series	ACM
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Interfaces	USB and IEEE1394 computer lines, LVDS panel link lines
Core Material	Ferrite
Standards/Approvals	RoHS
Package/Case	2520
Maximum DC Current	150mA
Pin Count	6
Maximum DC Resistance	1.6Ω
Termination Style	Wire
Inductor Construction	Wirewound

Key Features

Equipped with a wirewound inductor construction for high performance.
Compact 2520 package case dimensions ideal for surface mounting.
Maximum DC resistance of 1.6 ohms ensures minimal voltage drop.
Wire termination style facilitates reliable electrical connections.
Operates efficiently within a temperature range of -25°C to 85°C.
RoHS compliant, ensuring adherence to environmental standards.
Suitable for suppression of radiation and common-mode noise on USB and IEEE1394 lines.
Compatible with LVDS panel link lines, enhancing signal integrity in electronics.

Product Description

The TDK ACM2520-801-3P-T is a surface mount common mode line filter designed with a ferrite core and wirewound inductor construction, optimized for effective noise suppression in electronic circuits. It supports a maximum DC current of 150mA and has a compact 2520 package size with dimensions featuring 2.5mm length, 1.2mm height, and 2mm depth, making it suitable for high-density PCB applications.

It exhibits a maximum DC resistance of 1.6 ohms, which ensures minimal voltage drop, and operates efficiently within an industrial temperature range from -25°C to 85°C. The termination style is wire-based, providing secure and reliable electrical connectivity for integration into various electronic assemblies.

This filter is RoHS compliant, ensuring it meets important environmental and safety standards. Its common mode impedance exceeds 1000 ohms at 100MHz due to the ferrite core, effectively suppressing common mode noise.

Typical applications include radiation and common-mode noise suppression on USB, IEEE1394 computer lines, and LVDS panel link lines, making it valuable in industrial, computer, telecommunications, and consumer electronics sectors.

Manufactured in Japan by TDK, this component is built to meet rigorous quality norms. It is supplied on a reel, ready for automated insertion, facilitating efficient production processes.

Equipped with a wirewound inductor construction for high performance. Compact 2520 package case dimensions ideal for surface mounting. Maximum DC resistance of 1.6 ohms ensures minimal voltage drop. Wire termination style facilitates reliable electrical connections.

Operates efficiently within a temperature range of -25°C to 85°C. RoHS compliant, ensuring adherence to environmental standards. Suitable for suppression of radiation and common-mode noise on USB and IEEE1394 lines. Compatible with LVDS panel link lines, enhancing signal integrity in electronics.

Manufactured in Japan, assuring high quality and performance standards. Explore more Surface Mount Inductors from EnvMart for reliable EMI filtering solutions in various industrial and electronics applications.
