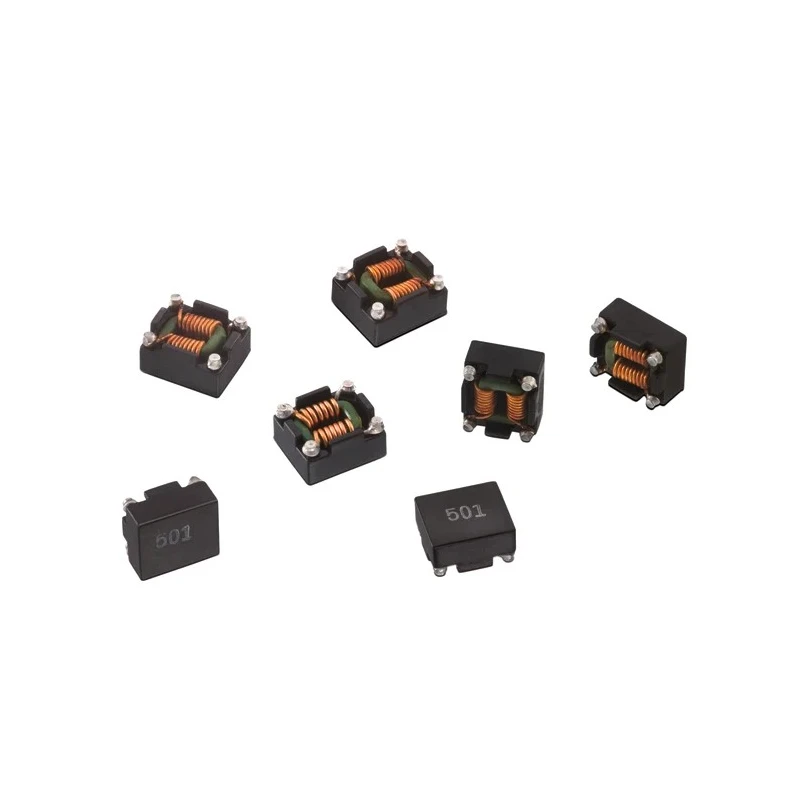

Wurth Elektronik Unshielded Surface Mount Common Mode Line Filter WE-SL5 HC , Ferrite Core, 30 μH, 1.4A, 9.5mm x 744273222
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 5.3mm |
| Length | 9.5mm |
| Depth | 8.3mm |
| Packaging | Tape & Reel |
| Series | WE-SL5 HC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 30μH |
| Standards/Approvals | IEC 61249-2-21, JEDEC JS709B, REACH, RoHS |
| Package/Case | 744273 |
| Maximum DC Current | 1.4A |
| Pin Count | 4 |
| Maximum DC Resistance | 60mΩ |
| Inductance Tolerance | ±25 % |
| Termination Style | Surface Mount |
| Inductor Construction | Sectional Winding |
Key Features
- Compact size with dimensions 9.5mm length, 8.3mm depth, and 5.3mm height.
- Maximum DC current of 1.4A ensuring robust performance.
- Includes four pins for secure surface mounting on PCBs.
- Inductance tolerance of ±25% suitable for various applications.
- Operating temperature range from -40°C to +125°C for extended durability.
- Constructed with a sectional winding in a ferrite core material.
- Complies with IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS standards.
- Packaging is tape and reel for efficient automation in manufacturing.
Product Description
Wurth Elektronik 744273222 is a compact unshielded surface mount common mode line filter from the WE-SL5 HC series. It features a ferrite core with a 30 μH inductance and is designed for use in electronic circuits requiring noise suppression and EMI protection.
This surface mount component measures 9.5mm in length, 8.3mm in depth, and 5.3mm in height, making it suitable for compact PCB layouts. The device supports a maximum DC current of 1.4A, ensuring it can handle moderate currents effectively in various industrial and commercial electronic applications.
The inductor construction utilizes sectional winding wrapped around a ferrite core, delivering high impedance up to 2200 Ω and enhanced noise filtering capabilities. Its inductance tolerance of ±25% accounts for manufacturing variations while maintaining functional reliability.
Operational parameters include a wide temperature range from -40°C to +125°C, enabling use in harsh environments such as industrial electronics, power supplies, telecommunications, and automotive electronics where stability under temperature fluctuation is critical.
Compliance with standards such as IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS guarantees its adherence to international safety and environmental regulations. The component is supplied in tape and reel packaging, optimized for automated assembly processes to improve production efficiency.
Compact size with precise dimensions for space-constrained designs. High current capability and low DC resistance for reliable performance. Industry-standard certifications ensuring quality and compliance. Surface mount termination style for modern PCB assembly.
Suitable for noise suppression and EMI filtering in electronic designs. Explore the full range of Wurth Elektronik Surface Mount Inductors and related components on EnvMart for reliable industrial and commercial electronics solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 30 μH, providing effective noise suppression and EMI filtering capabilities.
This unit measures 9.5mm in length, 8.3mm in depth, and 5.3mm in height, making it suitable for compact PCB layouts.
It supports a maximum DC current of 1.4A, ensuring it can handle moderate currents effectively in various applications.
The operating temperature range is from -40°C to +125°C, allowing it to function in harsh environments.
This model features a surface mount termination style, which is standard for modern PCB assembly.
It complies with IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS standards, ensuring adherence to international safety and environmental regulations.
The component is supplied in tape and reel packaging, which is optimized for automated assembly processes.
The inductance tolerance is ±25%, accounting for manufacturing variations while maintaining functional reliability.
The core material used is ferrite, which contributes to its noise filtering capabilities.
It includes four pins for secure surface mounting on PCBs, ensuring stable installation.
It features sectional winding construction, which helps in delivering high impedance and enhanced noise filtering capabilities.
This model is suitable for applications requiring noise suppression and EMI protection in electronic circuits, including industrial electronics and telecommunications.
