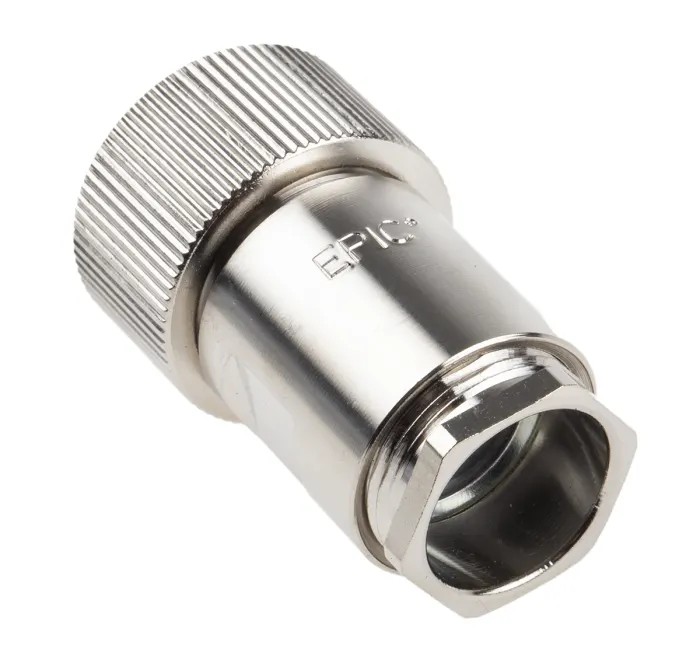

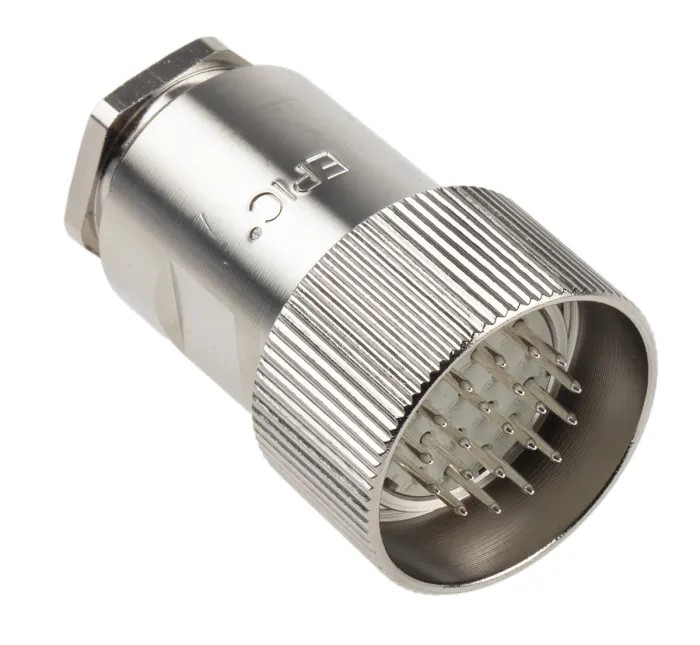

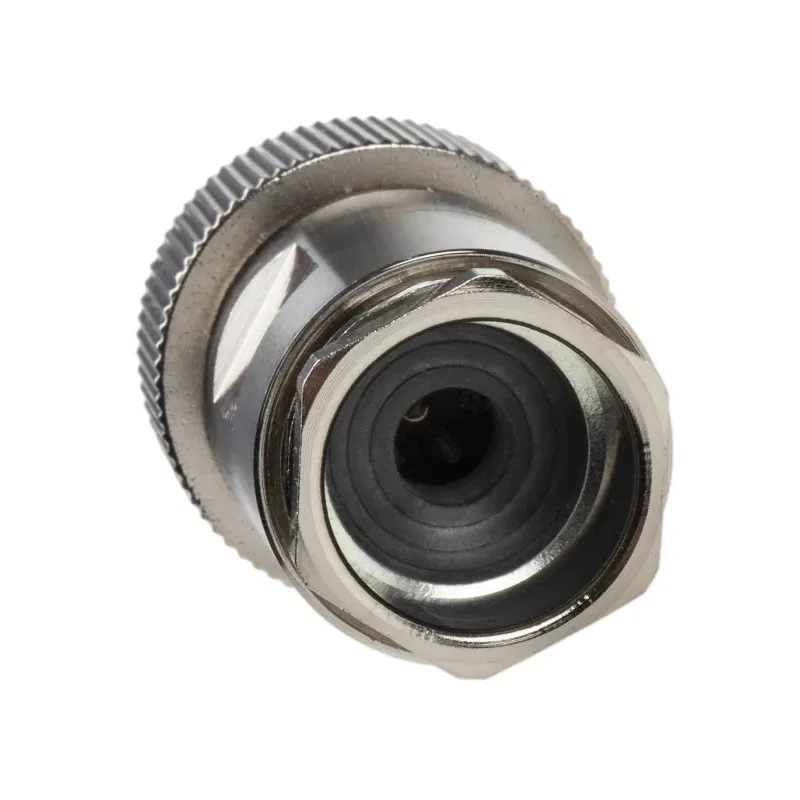

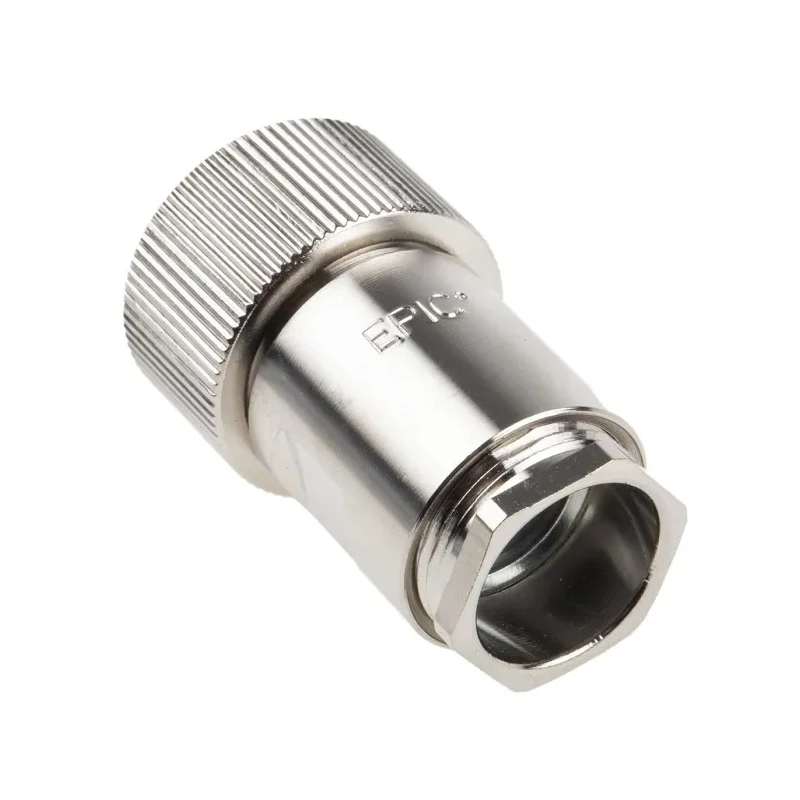

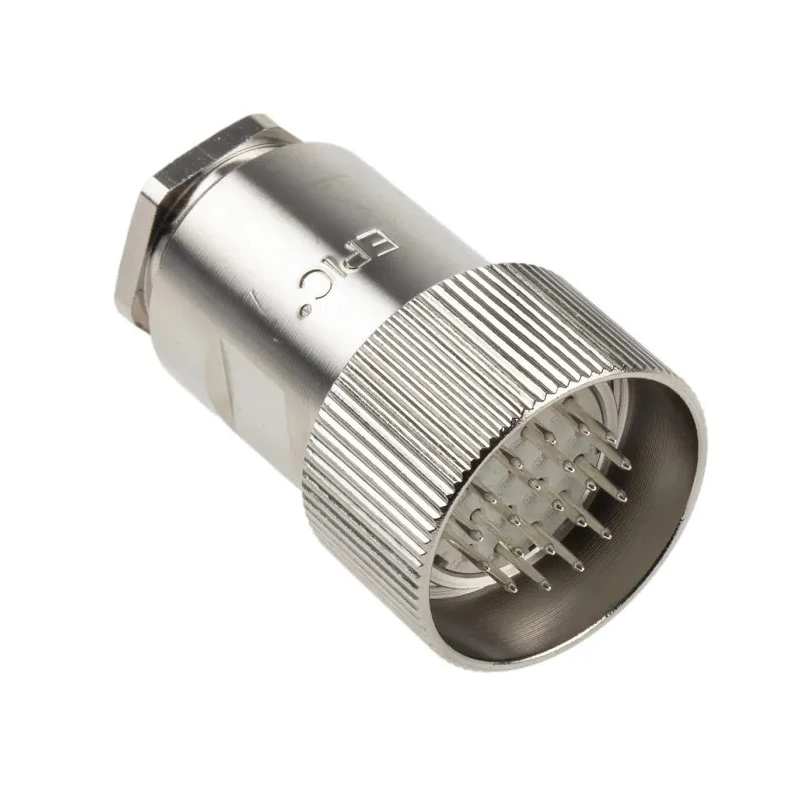

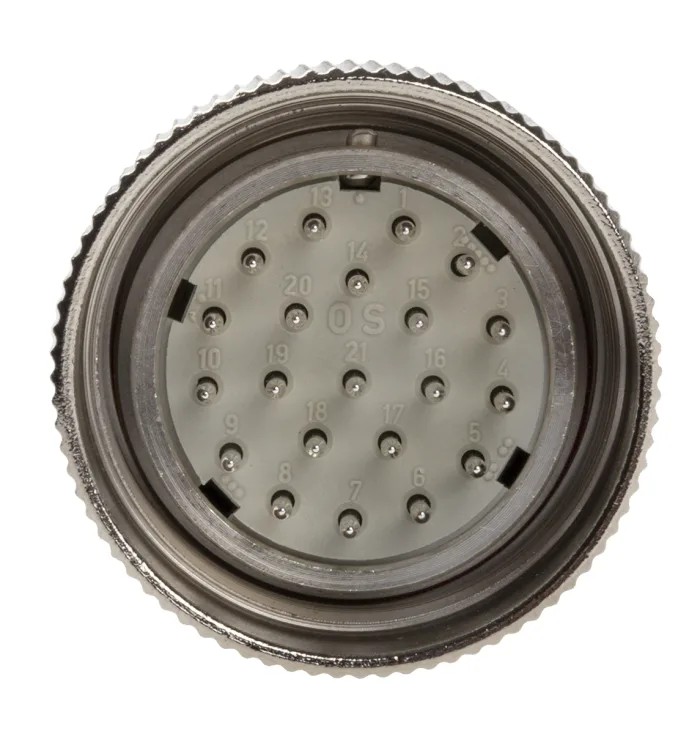

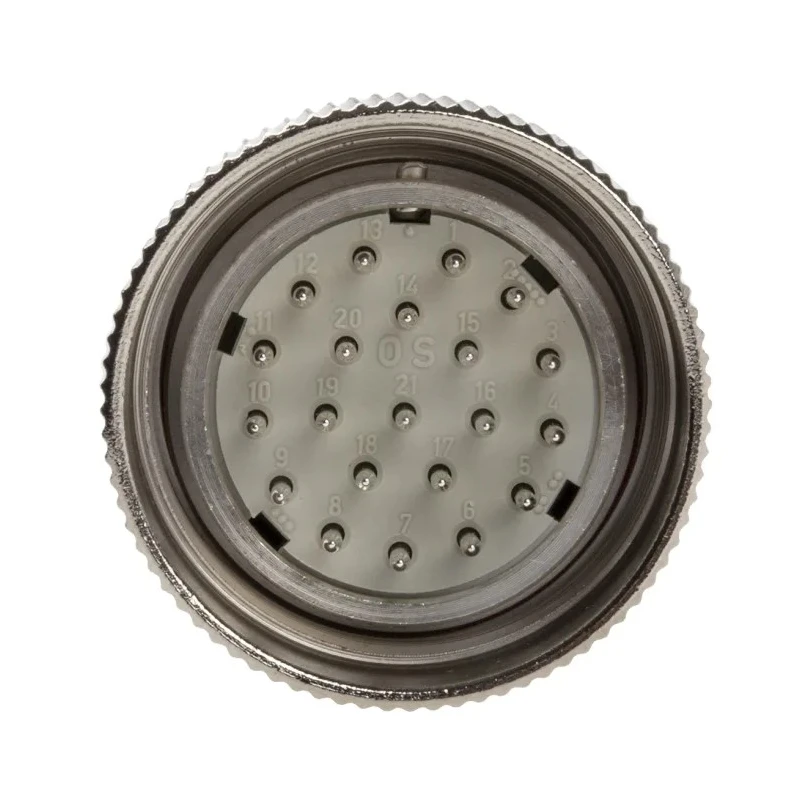

Lapp Circular Connector 21 Contacts, 7.5A, 380V, Cable Plug, Male, IP65, EPIC Series 00009245

The Lapp 00009245 Circular Connector is engineered for high-density signal and power applications requiring a compact form factor and robust environmental resilience. With a configuration of 21 contacts, this cable plug delivers reliable performance in demanding industrial settings.

Designed as a straight cable-mounted plug with a male contact layout and solder termination, this connector is backed by an impressive current rating of 7.5A and a voltage rating of up to 380V. Its IP65 ingress protection ensures resistance against dust and low pressure water jets, making it suitable for both indoor installations and certain open-air configurations. The connector is part of the EPIC Series, known for its mechanical durability and ability to perform under challenging conditions.

The connector’s body is constructed from high-grade thermoplastic material, providing mechanical strength and thermal stability between -40°C and +125°C. Its silver-plated copper contacts optimize conductivity and resist corrosion over time. The integrated PG cable gland ensures secure retention of the cable, prevents ingress of dirt and moisture, and provides strain relief, greatly extending the longevity of both the connector and the attached assembly.

The Lapp 00009245 connector employs a screw-locking mating system, offering secure engagement and a strong, vibration-resistant connection. A 30-shell size design allows high contact density in a compact footprint. The connector is oriented straight for direct cable runs and features high-quality construction ideal for industrial environments where space and reliability are critical factors.

This product finds application across machine building, automation, measurement, and control technology. Typical scenarios include equipment interconnection, robust signal or low-voltage power supply delivery, and any environment where industrial-grade protected terminations are required. It is part of a family of compatible hardware, allowing flexible panel, inline, and cable coupler configurations for comprehensive system integration.

Additional features include easy solder termination for efficient assembly processes, and a housing designed for optimal corrosion resistance and long-term mechanical protection. Lapp’s EPIC R Series accessories such as dust caps and mating couplers are available to support maintenance and system reliability.

Known for reliability and low maintenance, the Lapp 00009245 Circular Connector is a dependable solution wherever secure, sealed, and high-density cabling is a must. Explore more Lapp and industrial connectors in the Electronics & Electricals and Industrial Circular Connector categories on EnvMart.
