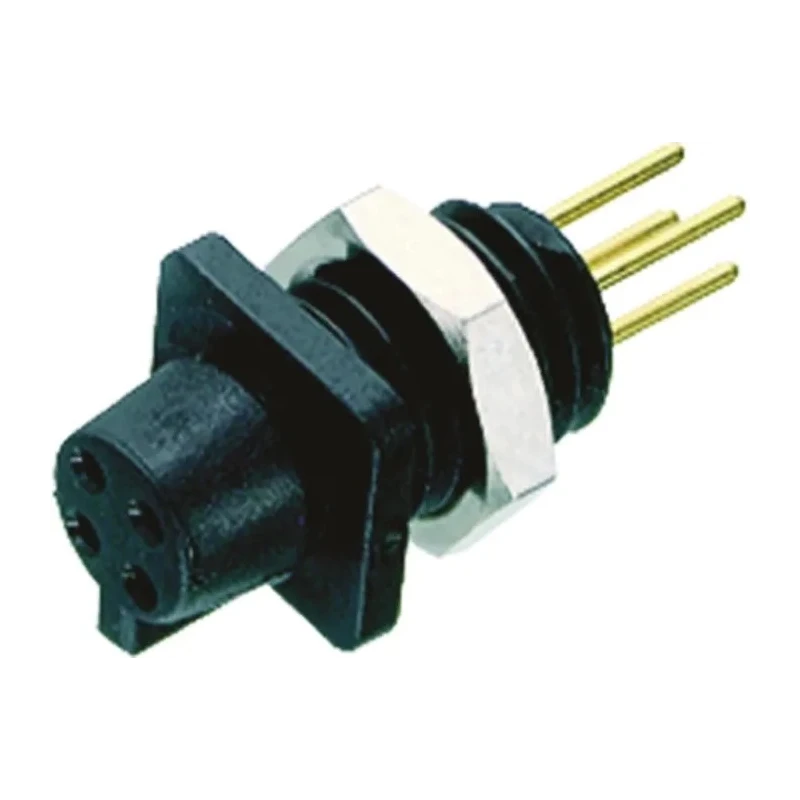

binder Circular Connector, 4 Contacts, Panel Mount, Subminiature Plug Female IP40 709 Series 09-9766-20-04
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 60V |
| Brand | binder |
| Orientation | Straight |
| Current | 3A |
| IP Rating | IP40 |
| Mount Type | Panel Mount |
| Housing Material | Polymer |
| Contact Material | Brass |
| Series | 709 |
| Termination Type | Solder |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Shell Size | 8 |
| Mating Type | Snap-In |
| Connector Size | Subminiature |
| Plug/Socket | Plug |
Key Features
- Features a panel mount design for secure installation.
- Includes four gold plated brass contacts providing high corrosion resistance.
- Rated for 60 V voltage and 3 A current handling capacity.
- Connector shell made from durable polymer material for long-lasting use.
- Supports mating via snap-in type with straight orientation.
- Designed to operate in temperatures ranging from -25°C to 70°C.
- Termination type is solder, ensuring strong electrical connection.
- Compact subminiature shell size 8 suitable for space-constrained applications.
Product Description
binder 09-9766-20-04 circular connector is a high-quality subminiature connector from the 709 Series, featuring 4 gold plated brass contacts arranged in a panel mount, plug female configuration with an IP40 rating.
The connector operates reliably with a rated current of 3 A and voltage rating of 60 V, suitable for a variety of industrial electronic applications. Its polymer housing offers durability and protection withstanding temperatures from -25°C to 70°C. The solder termination ensures a secure and stable electrical connection.
The snap-in mating type and straight orientation provide ease of assembly and reliable connection stability. Its compact size (shell size 8) enables use in compact systems such as medical electronics, power supplies, portable instrumentation, and consumer electronic devices.
Binder’s 709 Series connectors are specifically designed for industrial environments requiring dependable connectivity solutions with moderate protection against ingress to IP40 standard. The 4-contact configuration and gold plating enhance conductivity and corrosion resistance for enhanced performance.
Panel mount installation for secure and robust connection. Gold plated brass contacts ensuring excellent conductivity and corrosion resistance. Rated 60 V, 3 A operation for versatile industrial use. Durable polymer housing suitable for harsh environmental conditions.
Operates from -25°C to 70°C for temperature resilience. Solder termination provides solid and reliable electrical joints. Snap-in mating with straight orientation eases assembly and maintenance. Compact subminiature shell size 8 fits space-restricted applications.
IP40 protection rating ideal for indoor environments requiring dust protection. Applications include medical, instrumentation, power supply systems, and consumer electronic devices.
This product is proudly made in Germany and represents binder’s commitment to quality and innovation in industrial circular connector technology. For further exploration, browse more in the Electronics & Electricals category or specifically within Industrial Circular Connectors on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a voltage of 60 V and a current handling capacity of 3 A.
It has an IP40 rating, providing moderate protection against dust ingress for indoor environments.
The connector operates reliably in temperatures ranging from -25°C to 70°C.
It features a solder termination type, ensuring a strong and stable electrical connection.
This connector has 4 contacts, arranged in a female configuration.
The contacts are made of brass with gold plating, while the housing is constructed from durable polymer material.
It is designed for panel mount installation, providing secure and robust connection.
The connector features a compact subminiature shell size 8, suitable for space-constrained applications.
It supports snap-in mating with a straight orientation for ease of assembly.
This model is suitable for applications in medical electronics, power supplies, portable instrumentation, and consumer electronic devices.
This product is proudly made in Germany, reflecting the brand's commitment to quality.
It belongs to the 709 Series of connectors, designed for industrial environments requiring dependable connectivity solutions.
