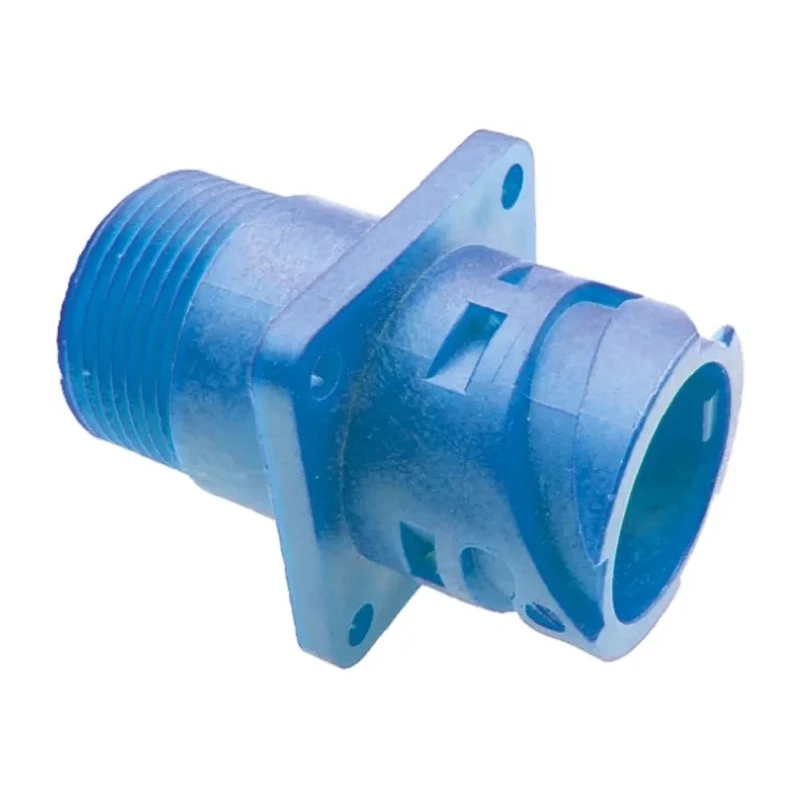

ITT Cannon Industrial Circular Connector Panel Mount 1 Contact 23.5 mm Socket Female IP67 APD Series 121583-0014
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 48V |
| Brand | ITT Cannon |
| Orientation | Straight |
| IP Rating | IP67 |
| Mount Type | Panel Mount |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | APD |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 1 |
| Contact Plating | Silver |
| Number of Contacts | 1 |
| Contact Gender | Female |
| Shell Size | 30 mm |
| Mating Type | Bayonet |
| Connector Size | 23.5 mm |
| Plug/Socket | Socket |
Key Features
- Features a panel mount configuration suitable for industrial applications.
- Single female contact with crimp termination ensures secure connectivity.
- Connector size of 23.5 mm with a 30 mm shell and straight orientation.
- Designed with IP67 rating for excellent dust and water protection.
- Operates at 48 V with bayonet mating type for quick lock.
- Housing made of thermoplastic ensures durability up to 125°C.
- Suitable for harsh environments including transportation and off-road uses.
- Contact plating of silver and contact made from copper alloy for excellent conductivity.
Product Description
ITT Cannon 121583-0014 Industrial Circular Connector is a panel mount socket connector designed for high power applications requiring a single female contact. The connector measures 23.5 mm with a 30 mm shell size and features a bayonet mating type ensuring a secure and quick connection. It operates at 48 V and withstands operating temperatures from -40°C to 125°C, making it suitable for industrial and transportation environments.
This APD Series connector offers IP67 ingress protection, providing reliable sealing against dust and water ingress. The housing is made of durable thermoplastic materials, and contact surfaces are silver plated with copper alloy core, enhancing conductivity and resistance to corrosion.
The connector meets the requirements of DIN EN 60529, ISO 15170-2 sec.6.2, 6.3, 6.6, and EN 60512 standards, making it ideal for harsh environment use cases such as military, industrial, and automotive applications.
These connectors are widely used in industrial power supplies, antennas, base stations, and heavy automotive power connections. The compact design allows for up to 50 mating cycles, balancing durability with compactness.
Panel mount socket with 1 female contact and crimp termination. 23.5 mm connector size with a 30 mm shell size and straight orientation. IP67 rated for dust-tight and water immersion protection. Operates at 48 V with bayonet type mating for secure connections.
High temperature tolerance from -40°C to 125°C ensures reliability. Durable thermoplastic housing and silver-plated copper alloy contacts improve performance. Complies with DIN EN 60529, ISO 15170, and EN 60512 harsh environment standards.
Set your industrial equipment with ITT Cannon’s trusted APD series connectors to ensure high integrity power connections in challenging environments. Browse the Electronics & Electricals category on EnvMart for more connectors and related components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector has an IP67 rating, providing excellent protection against dust and water immersion.
It operates at a voltage of 48V, suitable for high power applications.
The connector can operate in temperatures ranging from -40°C to 125°C, making it suitable for harsh environments.
This model features crimp termination, ensuring secure connectivity for the single female contact.
The housing is made of thermoplastic, while the contacts are copper alloy with silver plating for enhanced conductivity.
The shell size of this connector is 30 mm, accommodating its design and functionality.
This connector has a single female contact, designed for specific applications requiring one connection point.
It features a bayonet mating type, which allows for quick and secure connections.
This model is suitable for industrial power supplies, antennas, base stations, and heavy automotive power connections.
The connector is designed with a straight orientation, facilitating easy installation in panel mount configurations.
The connector is manufactured in Germany, ensuring adherence to quality standards.
It complies with DIN EN 60529, ISO 15170-2, and EN 60512 standards, making it suitable for harsh environment use cases.
