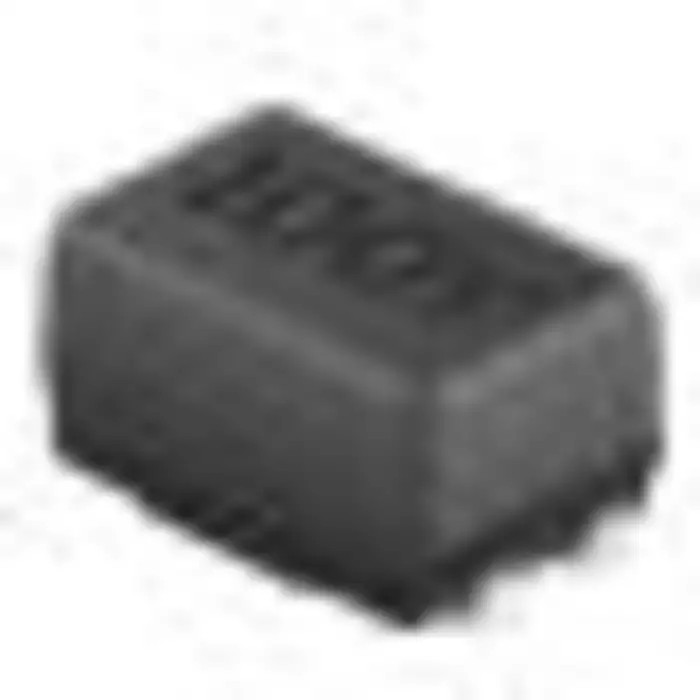

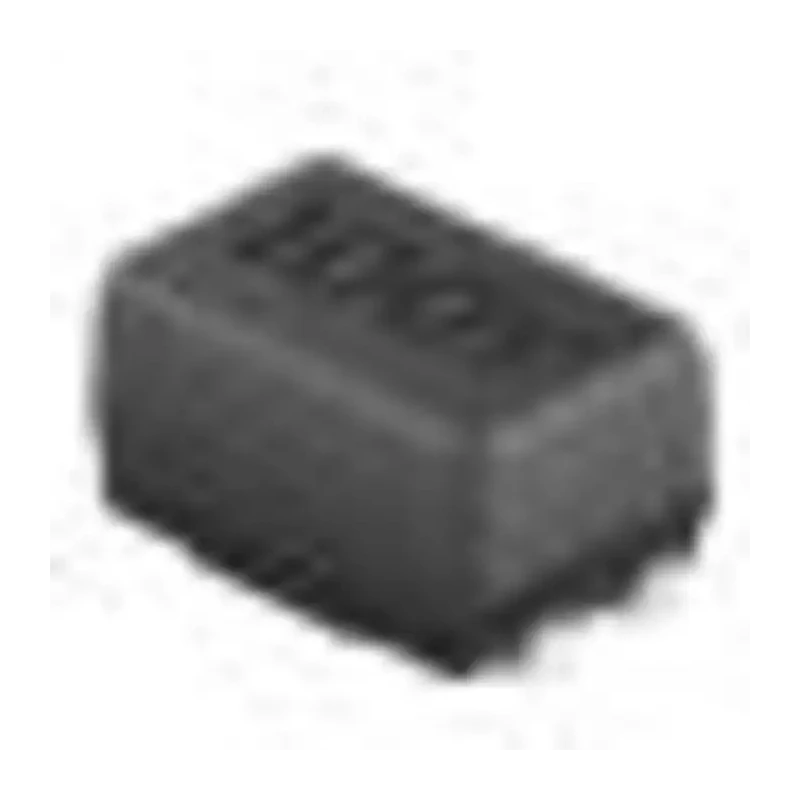

Bourns 0905 Surface Mount Common Mode Line Filter Ferrite Core 500μH ±50% Inductance 1A Max DC Current SRF0905
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 5mm |
| Length | 9.2mm |
| Model | SRF0905 |
| Depth | 6mm |
| Packaging | 1000 pieces per 13 in Reel |
| Series | SRF0905 |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance Range | 10 to 6500 μH |
| Inductance | 500μH |
| Standards/Approvals | RoHS |
| Package/Case | 0905 |
| Maximum DC Current | 1A |
| Maximum DC Resistance | 150mΩ |
| Inductance Tolerance | ±50 % |
| Termination Style | Surface Mount |
| Inductor Construction | Ferrite Core |
Key Features
- Constructed with a ferrite core to provide effective EMI suppression.
- Inductance tolerance is ±50% suitable for various electronic applications.
- Compact 0905 package size with dimensions 9.2mm length, 5mm height, and 6mm depth.
- Designed to operate between -40°C and 105°C temperatures.
- Maximum DC resistance is 150mΩ ensuring efficient performance.
- Packaged as 1000 pieces on a 13-inch reel for high-volume manufacturing.
- Complies with RoHS standards for environmental safety.
- Inductance range suitable from 10 to 6500 μH across the SRF0905 series.
Product Description
Bourns SRF0905 0905 Surface Mount Common Mode Line Filter is designed with a ferrite core providing 500μH inductance and a maximum DC current rating of 1 ampere. This surface mount inductor is suitable for applications requiring effective electromagnetic interference (EMI) suppression, helping improve electronic device performance.
The compact 0905 package measures 9.2mm in length, 5mm in height, and 6mm in depth, making it ideal for PCB assembly in tight spaces. The inductance tolerance of ±50% supports flexibility across diverse use cases, with the series covering a wide inductance range from 10 to 6500 μH and frequency performance up to 300 MHz.
Operating temperature range from -40°C to 105°C ensures reliability in demanding industrial, automotive, and consumer electronics environments. The maximum DC resistance of 150mΩ helps reduce power losses during operation.
RoHS compliant and provided on a 13-inch reel carrying 1000 pieces, it facilitates efficient production workflows and compliance with environmental regulations. Typical applications include EMI noise filtering in power supplies, signal line conditioning, and other electronic circuits requiring common mode noise suppression.
Effective EMI suppression with ferrite core construction. Wide operating temperature ensures industrial and automotive suitability. Compact surface mount design supports modern PCB layouts. High reliability and compliance with environmental standards.
Flexible inductance tolerance for various circuit requirements. Low DC resistance enhances energy efficiency. Delivered in large quantity reels for manufacturing efficiency.
This product is widely used in industrial tools and electronics, offering robust noise filtering solutions. Browse EnvMart's comprehensive Electronics Components and Inductors categories for more quality products by Bourns and others.
Explore more products in our Surface Mount Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 500μH with an inductance tolerance of ±50%.
This inductor has a maximum DC current rating of 1 ampere.
The dimensions of this unit are 9.2mm in length, 5mm in height, and 6mm in depth.
It operates within a temperature range of -40°C to 105°C.
The maximum DC resistance is 150mΩ, which helps in reducing power losses.
It is packaged as 1000 pieces on a 13-inch reel, facilitating high-volume manufacturing.
The inductor is constructed with a ferrite core, providing effective EMI suppression.
This product complies with RoHS standards for environmental safety.
It is suitable for applications requiring EMI noise filtering in power supplies and signal line conditioning.
The inductance range of the SRF0905 series spans from 10 to 6500 μH.
This model features a surface mount termination style, making it suitable for modern PCB layouts.
This inductor can perform at frequencies up to 300 MHz, enhancing its effectiveness in various applications.
