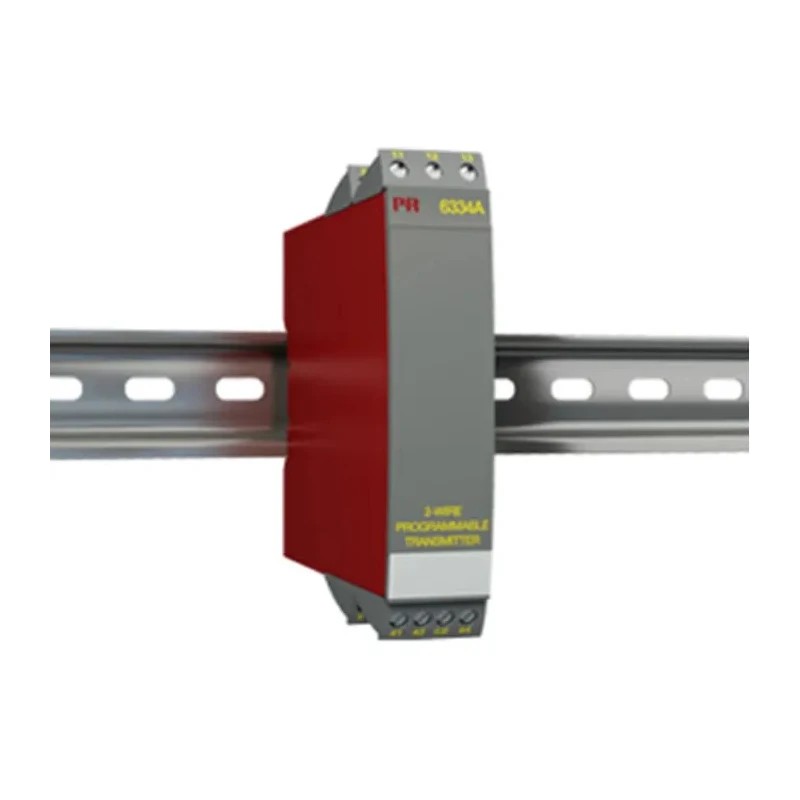

PR Electronics 2-Wire Programmable 4 to 20 mA Temperature Transmitter Thermocouple Voltage Input 35V 6334A2B
Specifications
| Country of Origin | Denmark |
|---|---|
| Voltage | Input 35V, 85 °C, -40 °C RS Stock No |
| Diameter | 23.5mm |
| Brand | PR Electronics |
| Model | 6334A2B |
| Depth | 104mm |
| Output type | 4 to 20 mA |
| Series | 6334A |
| Input Type | Thermocouple, Voltage |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Hazardous Area Certification | ATEX, Ex |
| Standards/Approvals | EAC TR-CU 020/2011, EMC 2014/30/EU |
| Maximum Supply Voltage | 35V |
| High immunity to conducted noise | tested against 10 Vrms in the range 15 Hz - 100 MHz |
Key Features
- Suitable for thermocouple and voltage input types to support multiple sensor options.
- Provides 4 to 20 mA output for standard process control systems.
- Compact design with 23.5 mm diameter and 104 mm depth allows DIN rail mounting.
- Operates reliably between -40 °C and 85 °C ambient temperatures.
- High immunity to conducted noise ensures stable readings in industrial environments.
- Galvanic isolation up to 1.5 kVAC protects against electrical interference.
- Programmable via free PReset software for flexible configuration.
- Features sensor redundancy for increased safety and availability.
Product Description
PR Electronics 6334A2B 2-wire programmable temperature transmitter is designed for high-accuracy conversion of thermocouple and voltage input signals into a standardized 4 to 20 mA output, suitable for industrial and laboratory process control applications.
This compact transmitter features a diameter of 23.5 mm and a depth of 104 mm, making it easily mountable on DIN rails in control cabinets. It is capable of operating in demanding environments with ambient temperatures ranging from -40 °C to 85 °C.
Equipped with galvanic isolation of up to 1.5 kVAC, it ensures signal integrity and safety by preventing ground loops and electrical noise interference. Its high immunity to conducted noise, tested against 10 Vrms in the 15 Hz to 100 MHz range, guarantees reliable measurements in electrically noisy industrial settings.
The transmitter supports a wide variety of thermocouple types and bipolar millivolt signals, providing unmatched versatility. Its sensor redundancy function enhances process availability and safety by automatically detecting primary sensor failure and switching to backup sensors.
Configuration is fast and user-friendly via the standard PC software, PReset, downloadable for free, allowing customization of input parameters, output modes, sensor error detection, and process calibration.
Thermocouple and voltage input compatibility. 4 to 20 mA standard current output. Compact DIN rail mount design. Wide operating temperature range from -40 °C to 85 °C. Galvanic isolation for safe operation. Sensor drift detection for measurement reliability.
High immunity against electromagnetic noise. Sensor redundancy to maintain uptime. ATEX and Ex hazardous area certifications. Conforms to EMC and EAC standards.
This transmitter is suitable for industrial, laboratory, HVAC, manufacturing, and process automation applications where precise temperature measurement and signal transmission are critical.
Explore more Temperature Transmitters and related instrumentation on EnvMart for your engineering and industrial needs.
