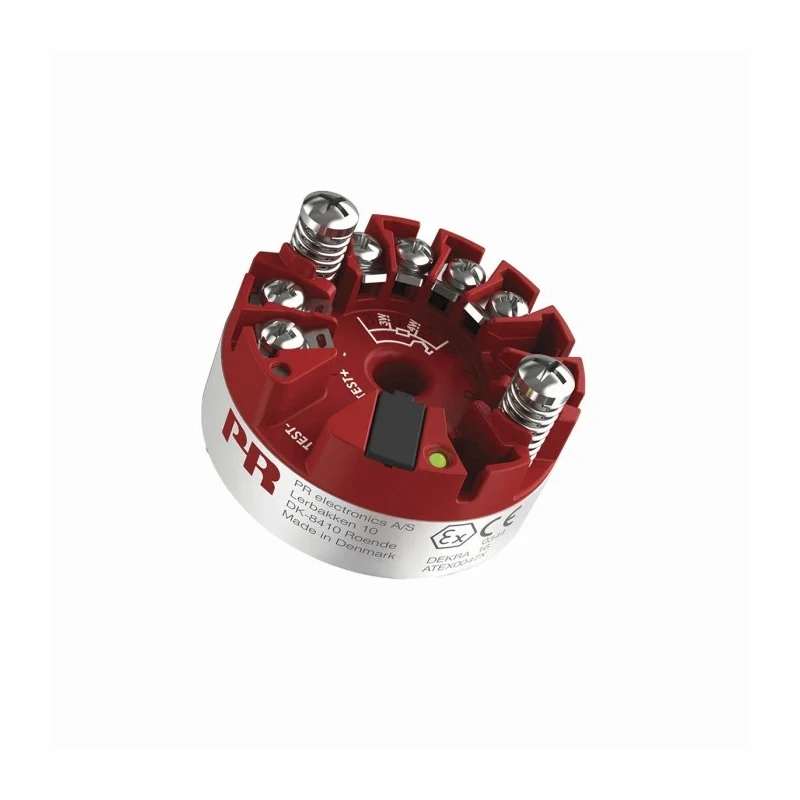

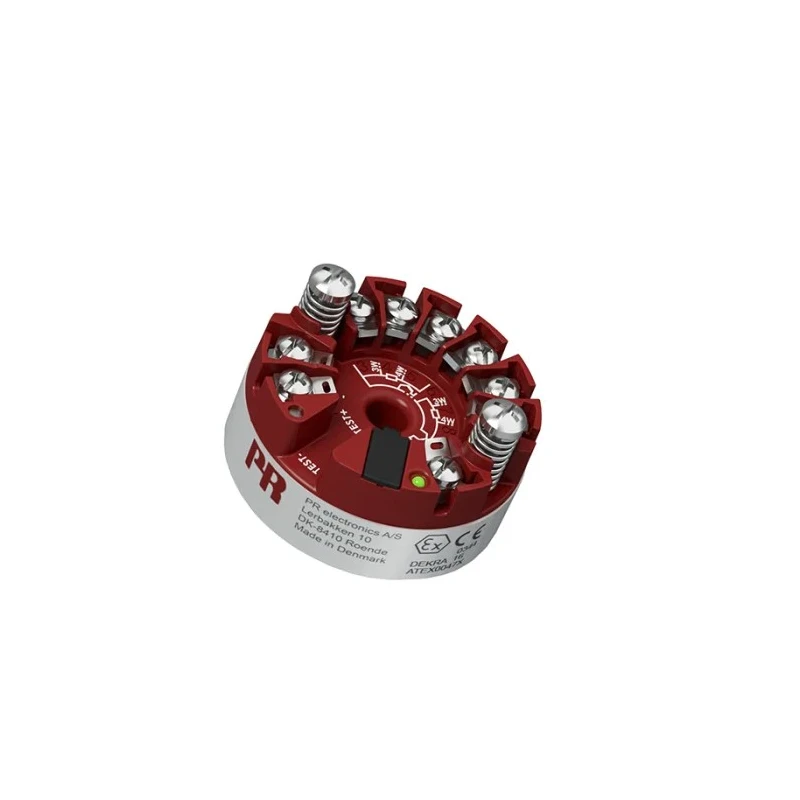

PR Electronics 4500 Single Input Temperature Transmitter 48V, Operating Temperature -40 to 80 °C 5437A1S
Specifications
| Country of Origin | Denmark |
|---|---|
| Diameter | 44mm |
| Brand | PR Electronics |
| Model | 5437A1S |
| Depth | 20.2mm |
| Output type | Relay |
| Series | 4500 |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -40°C |
| Hazardous Area Certification | Zone 2, ATEX |
| Standards/Approvals | NE 43, NE 21 |
| Maximum Supply Voltage | 48V |
| Minimum Temperature Input | -200°C |
| Maximum Temperature Input | 850°C |
Key Features
- Supports multiple sensor types including thermocouples and RTDs up to 100 kΩ resistance.
- Provides 4-20 mA output signal with HART 5 and HART 7 communication protocols.
- Equipped with sensor redundancy for improved safety and maintenance scheduling.
- Innovative housing design allows wiring from both inside and outside of terminals.
- On-board LED status indicators comply with NAMUR standards NE44 and NE107.
- High galvanic isolation protects against ground loops and transient voltages.
- Certified for hazardous areas Zone 2, ATEX with SIL 2 / SIL 3 functional safety certification.
- Compact dimensions with 44mm diameter and 20.2mm depth enable easy integration.
Product Description
PR Electronics 5437A1S single input temperature transmitter operates with a 48V supply voltage and supports a wide operating temperature range from -40°C to 80°C. Designed for demanding industrial and process control environments, it converts multiple input sensor types into a standardized 4-20 mA output signal suitable for real-time temperature monitoring.
The transmitter accepts two, three, or four wire RTDs, thermocouples, linear resistance, potentiometer, and bipolar mV inputs up to 100 kΩ. Sensor redundancy enhances process availability by allowing secondary sensors to maintain operation in case the primary sensor fails, with fault alerts transmitted through the HART protocol for predictive maintenance.
Installation is simplified with an innovative housing that permits wiring from inside or outside terminal access and a large central mounting hole compatible with a range of probe diameters. Loop test pins enable direct current measurements without interrupting process control loops, and an onboard LED indicates operational faults according to NAMUR NE44 and NE107 standards.
High galvanic isolation up to 2.5 kVAC protects against electrical disturbances, supporting robust industrial operation. Supports thermocouples, RTDs, and resistance inputs with flexible sensor compatibility. 4-20 mA analog output with HART 5 and 7 digital communication options.
On-board diagnostics via LED indicators for fault detection. Compact form factor, 44mm diameter by 20.2mm depth, optimized for probe mounting. Functional safety certified to SIL 2 / SIL 3 standards for risk mitigation. ATEX Zone 2 certification enables hazardous area deployment.
Robust galvanic isolation and test facilities enhance process reliability.
This transmitter is ideal for process control, industrial automation, HVAC, laboratory instrumentation, and other industrial temperature monitoring applications requiring precise and reliable sensor data transmission.
Explore the PR Electronics range of Temperature Transmitters for advanced measurement solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range of this transmitter is from -40°C to 80°C.
It supports multiple sensor types including thermocouples, RTDs, linear resistance, potentiometers, and bipolar mV inputs up to 100 kΩ.
This temperature transmitter provides a 4-20 mA output signal and supports HART 5 and HART 7 communication protocols.
The transmitter has a diameter of 44mm and a depth of 20.2mm, making it compact for easy integration.
It is certified for hazardous areas Zone 2 and complies with ATEX standards, along with SIL 2 / SIL 3 functional safety certification.
Sensor redundancy allows for secondary sensors to maintain operation if the primary sensor fails, with fault alerts transmitted through the HART protocol for predictive maintenance.
The maximum supply voltage for this model is 48V.
This transmitter complies with standards NE 43 and NE 21, ensuring reliable operation in industrial settings.
Yes, it features onboard LED indicators for fault detection, complying with NAMUR NE44 and NE107 standards.
The minimum temperature input is -200°C and the maximum temperature input is 850°C.
The innovative housing design allows for wiring from both inside and outside of the terminals, and it includes a large central mounting hole for various probe diameters.
It offers high galvanic isolation up to 2.5 kVAC, protecting against electrical disturbances and enhancing operational reliability.
