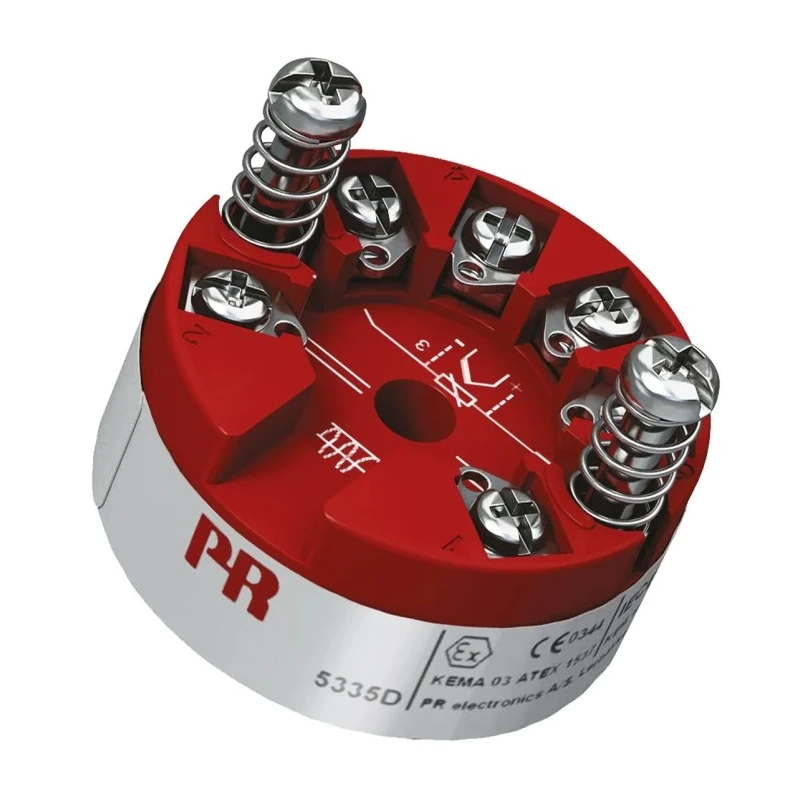

PR Electronics Temperature Transmitter 30V DC Input, -40°C to 85°C Operating Range 5335D

PR Electronics 5335D Temperature Transmitter is a high-performance device designed for industrial and process control applications requiring precise temperature measurement and control. Supporting a wide range of sensor inputs, including thermocouples and RTDs, it operates on 30 V DC supply and withstands operating temperatures from -40°C up to 85°C, making it suitable for diverse environments.

This transmitter offers exceptional input versatility, accepting virtually any thermocouple type or 2, 3, and 4-wire RTD sensors, alongside linear resistances up to 700 Ohms and bipolar millivolt signals. Its sensor redundancy function maintains process availability and enhances safety by alerting via HART communication in case of primary sensor failure, allowing timely maintenance scheduling.

Equipped with HART protocol support, the transmitter facilitates low-speed digital communication carried over the industry-standard 4 - 20 mA current loops, widely used across automation industries. This ensures integration simplicity and ease of diagnostics.

The 5300 series model provides superior accuracy, low temperature coefficient, and fast response times, critical for safety-sensitive and cost-efficient processes. It demonstrates high immunity to conducted electrical noise (tested to 10 Vrms in the 15 Hz to 100 MHz spectrum) and performs continuous data integrity checks for ongoing reliability.

Designed for DIN form B sensor head mounting, the compact transmitter features a diameter of 44 mm and a depth of 20.2 mm, enabling flexible installation in constrained spaces. It complies with rigorous safety certifications including ATEX for hazardous areas and adheres to EAC, RoHS, CE, and IEC standards, ensuring compliance and industrial-grade robustness.

Typical applications include industrial process control, manufacturing environments, HVAC systems, water treatment facilities, and laboratory instrumentation requiring precise and reliable temperature monitoring.

Explore PR Electronics and the 5300 series product range for advanced Temperature Transmitters designed to meet demanding industrial requirements with ease.
