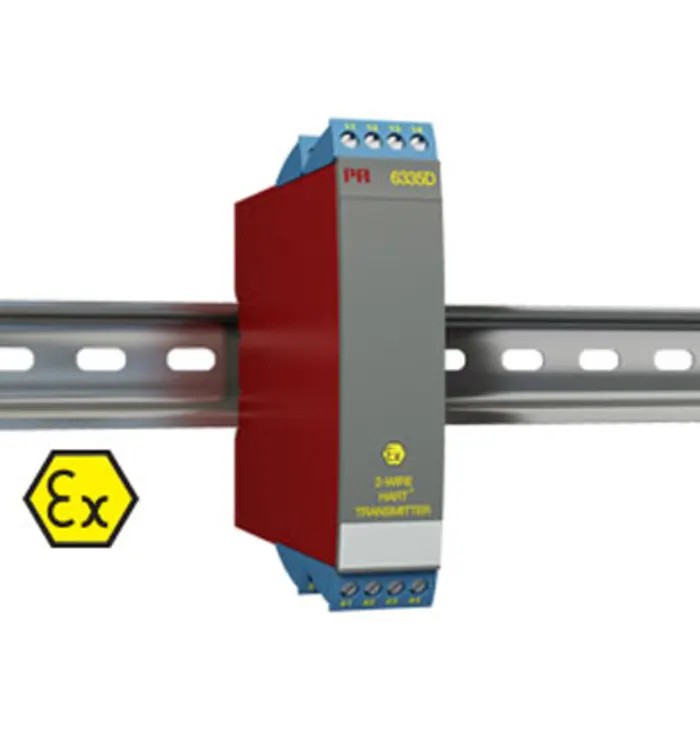

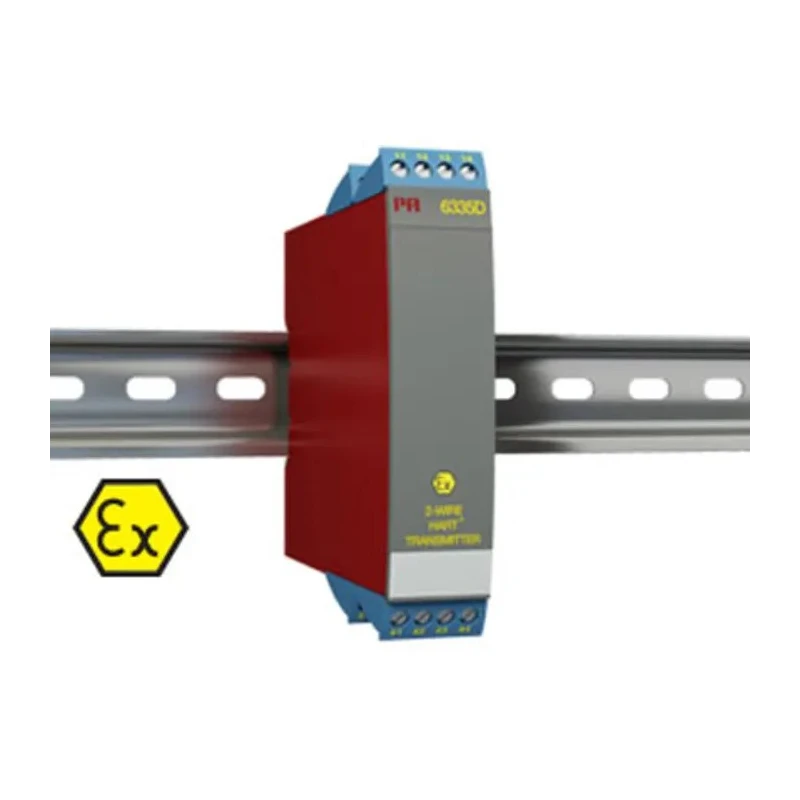

PR Electronics 2-Wire HART Temperature Transmitter 30V DC, -40°C to 85°C Operating Range 6335D2B

PR Electronics 6335D2B is a highly versatile 2-Wire HART Temperature Transmitter designed for industrial process control applications requiring rigorous accuracy and reliability. Operating on a supply voltage of up to 30 V DC, it supports a wide temperature input range from -200°C to 850°C, making it suitable for various thermocouples and RTD sensor types.

This transmitter provides galvanic isolation of 1.5 kVAC to safeguard measurement signals and reduce interference. Sensor drift detection feature enhances the longevity and accuracy of measurements by alerting users of potential sensor degradation. The device's compact dimensions of 23.5 mm diameter and 104 mm depth facilitate easy installation on DIN rails in control panels.

Certified for use in hazardous environments with ATEX and IECEX approvals, the 6335D2B also complies with FM, CSA, EMC 2014/30/EU, and EAC Ex TR-CU standards. Its high noise immunity, tested against 10 Vrms in the frequency range of 15 Hz to 100 MHz, ensures stable operation in electrically noisy industrial settings.

Programming the transmitter is simplified by the PReset software, allowing users to configure input parameters, output modes, sensor error detection, and calibration efficiently via a PC interface. The 4 to 20 mA analog output coupled with HART 5 communication facilitates integration with modern process control systems, providing both analog signal and digital diagnostic capabilities.

Ideal for applications in industrial automation, manufacturing, HVAC systems, water treatment, and chemical processing, this temperature transmitter combines precision, safety, and ease of use for critical process measurement and control.

The transmitter supports 4 to 20 mA output signal with HART 5 digital communication protocol. Input types include thermocouples, 2, 3 & 4 wire RTDs, linear resistance, and bipolar mV signals. Galvanic isolation of up to 1.5 kVAC ensures signal integrity and safety.

Robust operation with a supply voltage up to 30 V DC and operating temperatures from -40°C to 85°C. Features sensor drift detection to maintain measurement reliability over time. Designed for hazardous environments with ATEX certification and compliance to FM, CSA, IECEX standards.

Quick programming with user-friendly software PReset for application-specific configuration. High immunity to conducted noise tested against 10 Vrms from 15 Hz to 100 MHz. Compact design with a diameter of 23.5 mm and depth of 104 mm for easy DIN rail mounting.
