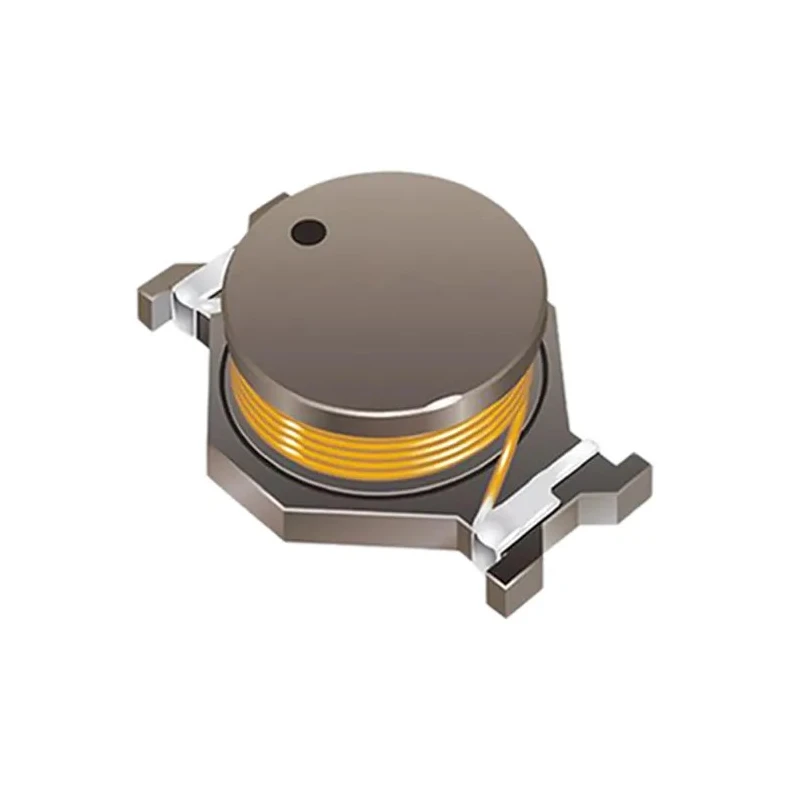

Bourns Wirewound Surface Mount Inductor SDR2207 with Ferrite DR Core 10 μH ±20% 6.5 A IDC Q:53 SDR2207
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 7mm |
| Length | 22mm |
| Model | SDR2207 |
| Depth | 15mm |
| Packaging | Reel |
| Series | SDR2207 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite DR |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Package/Case | 2207 |
| Maximum DC Current | 6.5A |
| Maximum DC Resistance | 17.2mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 20MHz |
| Minimum Quality Factor | 53 |
| Inductor Construction | Wirewound |
Key Features
- The inductor has an inductance tolerance of ±20% for reliable performance.
- Compact SMT package size measuring 22 mm length, 15 mm depth, and 7 mm height.
- Constructed as a wirewound inductor with a ferrite DR core for efficient magnetic characteristics.
- Supports a maximum DC resistance of 17.2 milliohms, ensuring low power loss.
- Operates within a temperature range of -40°C to 125°C, suitable for various environments.
- Features a high-quality factor (Q) of 53 and maximum self-resonant frequency of 20 MHz.
- Termination style is surface mount for easy PCB assembly and automated production.
- RoHS compliant, ensuring adherence to environmental standards.
Product Description
Bourns SDR2207 is a wirewound surface mount inductor featuring a ferrite DR core with an inductance of 10 μH ±20 %, designed to handle a maximum DC current of 6.5 A. It is housed in a compact 2207 SMT package with dimensions of 22 mm length, 15 mm depth, and 7 mm height, making it suitable for high-density circuit designs. The inductor construction uses wirewound technology, providing low DC resistance of 17.2 mΩ and a high-quality factor (Q) of 53, which helps in effective power filtering and energy storage.
This inductor supports a wide operating temperature range from -40°C up to 125°C, ideal for industrial and automotive applications requiring robustness under various environmental conditions. Its maximum self-resonant frequency is 20 MHz, allowing its use in a variety of RF and power supply filtering circuits. The surface mount termination style facilitates automated assembly and reliable PCB mounting.
Being RoHS compliant, the SDR2207 meets environmental directives and is supplied in reel packaging, which assists in efficient production handling. Typical applications include power supply filtering, EMI suppression, and energy storage in commercial, industrial, and automotive electronics.
The inductor has an inductance tolerance of ±20% for reliable performance. Compact SMT package size measuring 22 mm length, 15 mm depth, and 7 mm height. Constructed as a wirewound inductor with a ferrite DR core for efficient magnetic characteristics.
Supports a maximum DC resistance of 17.2 milliohms, ensuring low power loss. Operates within a temperature range of -40°C to 125°C, suitable for various environments. Features a high-quality factor (Q) of 53 and maximum self-resonant frequency of 20 MHz.
Termination style is surface mount for easy PCB assembly and automated production. RoHS compliant, ensuring adherence to environmental standards. Packaged in reels, facilitating efficient handling and usage in manufacturing.
Explore Bourns inductors and other electronic components at EnvMart for reliable sourcing and advanced technical solutions.
Explore more products in our Surface Mount Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SDR2207 inductor has an inductance value of 10 μH with an inductance tolerance of ±20%.
This model supports a maximum DC current of 6.5 A, making it suitable for various applications requiring significant current handling.
The dimensions of the SDR2207 are 22 mm in length, 15 mm in depth, and 7 mm in height.
The maximum DC resistance of this inductor is 17.2 milliohms, which helps minimize power loss during operation.
This inductor operates within a temperature range of -40°C to 125°C, suitable for a variety of environments.
The maximum self-resonant frequency of this model is 20 MHz, allowing its use in RF and power supply filtering applications.
The SDR2207 is constructed with a ferrite DR core, which provides efficient magnetic characteristics.
This inductor features a surface mount termination style, facilitating easy PCB assembly and automated production.
Yes, the SDR2207 is RoHS compliant, ensuring adherence to environmental directives.
This model has a minimum quality factor (Q) of 53, which contributes to its effective performance in filtering applications.
The SDR2207 is supplied in reel packaging, which assists in efficient handling and usage during manufacturing.
Typical applications for the SDR2207 include power supply filtering, EMI suppression, and energy storage in various electronic devices.
