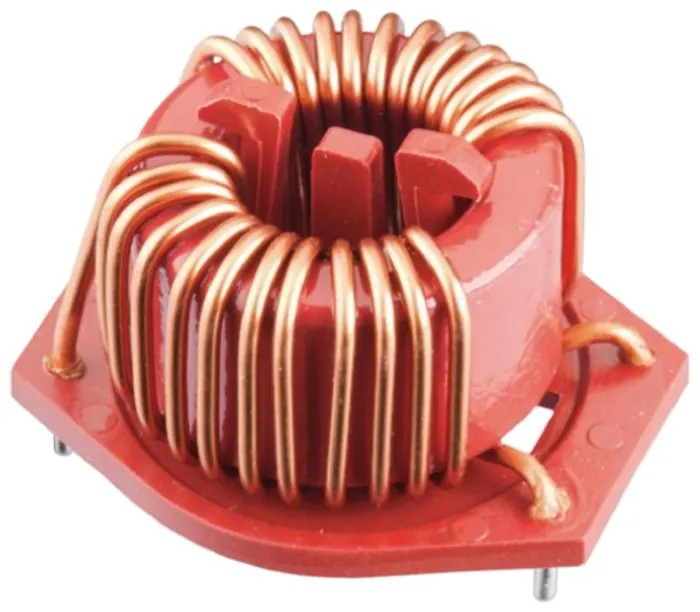

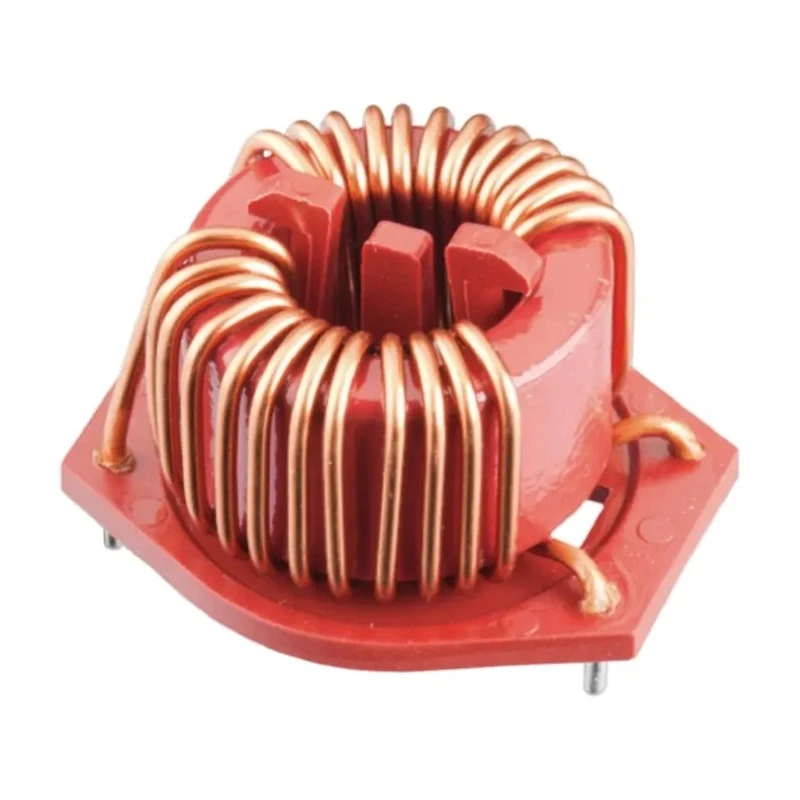

Wurth Elektronik Surface Mount Common Mode Choke WE-CMBH Series, 3.3 mH ±30%, 5 A, Ferrite Core, Moulded 744834433
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Operating Temperature | -40°C to +125°C |
| Height | 22mm |
| Length | 32.5mm |
| Depth | 28mm |
| Packaging | Tray |
| Series | WE-CMBH |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 3.3mH |
| Standards/Approvals | RoHS, REACH, IEC 61249-2-21 |
| Package/Case | L |
| Maximum DC Current | 5A |
| Pin Count | 4 |
| Maximum DC Resistance | 37mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Surface Mount |
| Inductor Construction | Moulded |
Key Features
- This surface mount choke features a moulded construction for durability and reliability.
- It provides broadband screening and effective suppression of common mode noise in power electronics.
- The inductance tolerance is ±30%, suitable for robust electronic designs.
- Package dimensions are 32.5 mm length, 28 mm depth, and 22 mm height.
- Designed to operate between -40°C and 125°C for demanding industrial applications.
- It supports up to 5 A maximum DC current with a maximum DC resistance of 37 mΩ.
- RoHS and REACH compliant with IEC 61249-2-21 standard approval.
- The termination style is surface mount, enabling easy PCB integration.
Product Description
Wurth Elektronik 744834433 surface mount common mode choke from the WE-CMBH series features a ferrite core and a moulded construction delivering 3.3 mH inductance with a tolerance of ±30% and supports a maximum DC current of 5 A. Designed for power line filtering and radio interference suppression, this component is ideal for industrial, automotive, and power electronic applications requiring noise attenuation and signal integrity.
The WE-CMBH series incorporates a horizontal design with low capacitance winding style that provides broadband screening and low frequency noise suppression. It operates reliably in harsh environments within a broad temperature range of -40°C to 125°C.
This common mode choke has a package size of 32.5 mm in length, 28 mm in depth, and 22 mm in height, with a 4-pin surface mount termination style enabling easy installation on PCBs. Its maximum DC resistance is 37 mΩ, ensuring minimal power loss during operation.
The product complies with RoHS and REACH regulations and meets IEC 61249-2-21 standards, assuring environmental and quality standards are upheld. This choke is designed to suppress common mode noise effectively in power electronics circuits and motor radio interference suppression.
Its horizontal, moulded design enhances durability and performance stability under operational stress. Non-shielded construction allows for broadband suppression while maintaining small package size. It is suitable for use in industrial machinery, automotive electronics, power supplies, and general EMI filter applications.
The ferrite core material supports high-frequency performance and thermal endurance.
EnvMart offers this Wurth Elektronik WE-CMBH Series Common Mode Choke for OEMs, electronic component manufacturers, and design engineers seeking reliable Surface Mount Inductors with proven noise suppression characteristics. Explore our full range of inductors and EMI filter components for comprehensive electronic design solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this common mode choke is 3.3 mH with a tolerance of ±30%.
This model supports a maximum DC current of 5 A.
The package dimensions are 32.5 mm in length, 28 mm in depth, and 22 mm in height.
It operates reliably within a temperature range of -40°C to +125°C.
The choke features a moulded construction, enhancing its durability and reliability.
The maximum DC resistance is 37 mΩ, which helps minimize power loss during operation.
This product complies with RoHS, REACH, and IEC 61249-2-21 standards.
The termination style is surface mount, allowing for easy integration onto PCBs.
The choke utilizes a ferrite core material, which supports high-frequency performance.
It is suitable for industrial machinery, automotive electronics, power supplies, and EMI filter applications.
This model has a pin count of 4.
The choke is packaged in a tray for distribution.
