Storm IP65 12 Key Die Cast Zinc Keypad IP65

Storm IP65 12 Key Die Cast Zinc Keypad model IP65 by Storm is designed for demanding industrial, commercial, and public outdoor environments requiring a reliable, rugged keypad solution. Ideal for electrical, automation, and control system applications, this keypad delivers durability and long-term operational performance.

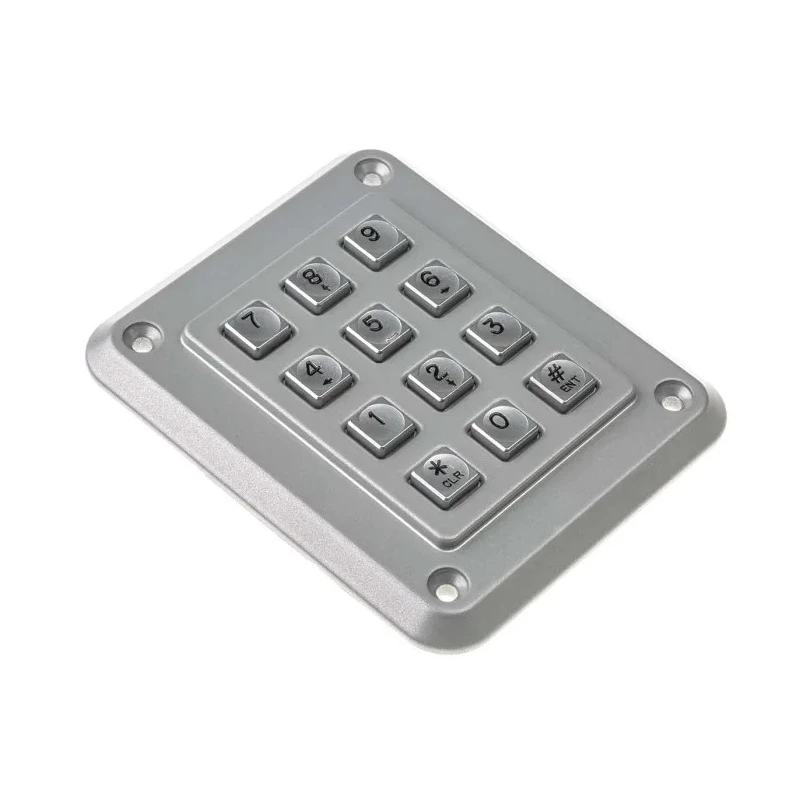

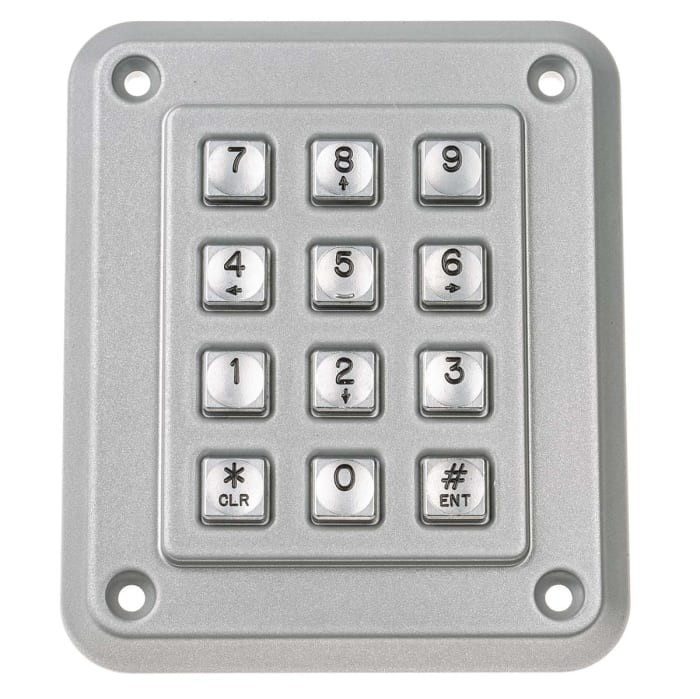

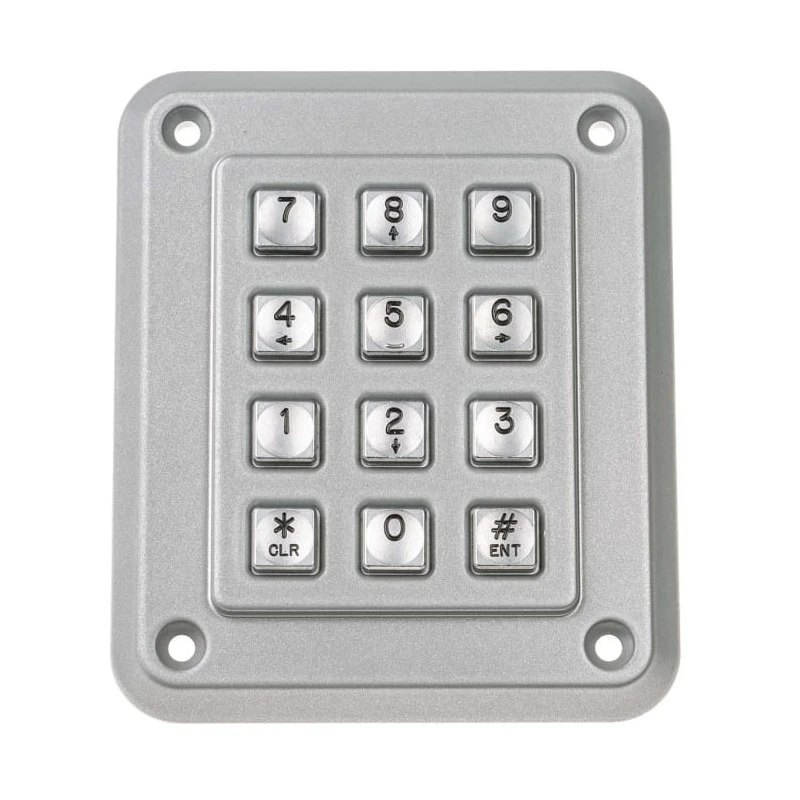

The keypad features a 3x4 matrix layout with 12 keys, crafted from robust die cast zinc for both housing and actuator materials, ensuring vandal resistance in exposed environments. It is fully sealed to an IP65 rating to protect against dust ingress and water jets, suitable for outdoor installations.

The device operates reliably across a wide temperature range of -40°C to 100°C and offers a mechanical life of over 4 million cycles per key, making it suitable for heavy-duty use. It incorporates a gold on nickel plated FR4 contact PCB to enhance contact reliability, rated for 50mA at 24Vdc with a contact resistance of 100Ω. The keypad’s engraved keytops and silver housing provide clear visibility and aesthetic appeal.

This Storm 1000 series keypad complies with CE and RoHS certifications, affirming its quality and environmental standards. Additional features include dielectric strength of 500Vac and insulation resistance of 50MΩ. The keypad also offers compatibility with back boxes and privacy shrouds for enhanced installation flexibility.

This rugged keypad is perfect for electrical automation systems, public access controls, industrial machinery interfaces, and outdoor kiosks where durability and resistance to harsh environments are essential.

The keypad features a 3x4 matrix layout with 12 keys for versatile input. The housing and actuator materials are die cast zinc, providing strength and vandal resistance. Fully sealed to IP65, it is dust tight and protected against water jets for outdoor usage.

Each key has an operational mechanical life exceeding 4 million cycles for long durability. The keypad functions reliably over a temperature range of -40°C to 100°C. Gold on nickel plated FR4 contact PCB ensures reliable electrical functioning.

Contact rating is 50mA at 24Vdc with 100Ω contact resistance for stable operation. Engraved keytop characters improve durability and readability in outdoor settings. CE and RoHS compliant, meeting international quality and safety standards.

Suitable for industrial, construction, electrical automation, and outdoor public applications. Explore more from the Keypad Switches category at EnvMart for additional industrial and commercial keypad solutions.
