EOZ 12 Key Illuminated Plastic Keypad IP67 Rated Matrix Output Yellow Housing

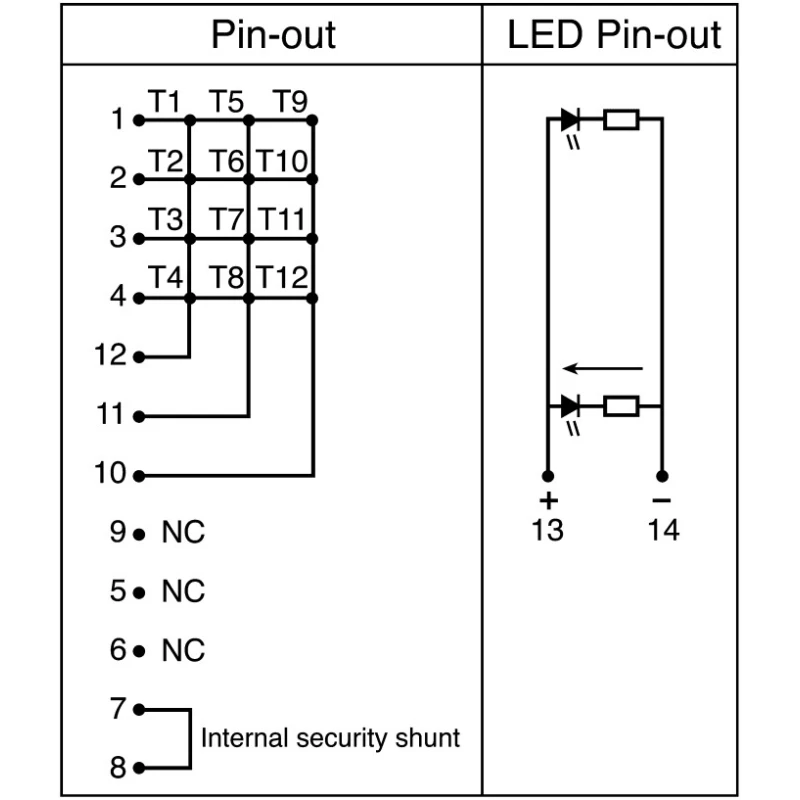

The EOZ M12iARSAYSMT 12 Key Illuminated Plastic Keypad is a rugged, cost-effective solution tailored for industrial, public, and automation applications requiring a durable input interface. Featuring a matrix output and a 4 x 3 layout, the keypad houses 12 yellow illuminated keys that provide clear visibility in low light conditions.

Constructed with a plastic housing and anodised aluminium actuators, it delivers a robust tactile feel through a silicone membrane with carbon pills on a gold-coated PCB, supporting a mechanical life of one million operations. It operates at 5V DC with a maximum current of 240mA and requires an actuation force of 1.9N ± 30% with travel distance between 0.8mm to 1.3mm.

Designed for extreme environments, the keypad features an IP67 rated front face ensuring protection against dust and water ingress, alongside IK09 impact resistance behind a 3mm thick panel to withstand vandalism. The mounting kit includes a silicone sealing gasket and ABS polycarbonate mounting brackets for secure rear mounting either by mounting holes or the included kit.

The keypad’s actuator properties include anti-twist and anti-wrench resistance with 12mm diameter aluminium keys finished in yellow color. The panel cutout supports mounting with precise dimensions of 14.4mm width and 79mm height, making installation straightforward.

Operating temperature ranges from -25°C to a maximum of 85°C, with the unit complying with RoHS and CE regulatory standards. Originating from France and part of the M series, this keypad is ideal for industrial automation, security systems, public access controls, and other environments requiring high durability and reliable input performance.

The keypad features a 4 x 3 layout with 12 illuminated yellow keys for clear visibility. Constructed with durable plastic housing and anodised aluminium actuators for enhanced longevity. Membrane operation with tactile silicone membrane and carbon pills ensures reliable tactile feedback.

Designed to withstand a mechanical life of 1,000,000 operations and supports a maximum operating temperature of 85°C. The keypad offers IP67 front face protection and IK09 impact resistance behind a 3mm thick panel. Includes mounting kit with silicone sealing gasket and ABS polycarbonate brackets for secure and watertight installation.

The device operates on a 5V DC supply with maximum current of 240mA and requires an actuation force of 1.9N ± 30%. Suitable for applications requiring vandal resistance, anti-twist and anti-wrench protection with 12mm diameter aluminium keys.

Panel cutout dimensions are 14.4mm width by 79mm height for precise mounting. Complies with RoHS and CE standards, originating from France with a robust M series design.

This keypad is suitable for electrical automation, industrial machinery control panels, public access systems, and other demanding environments requiring high reliability and protection against environmental factors.
