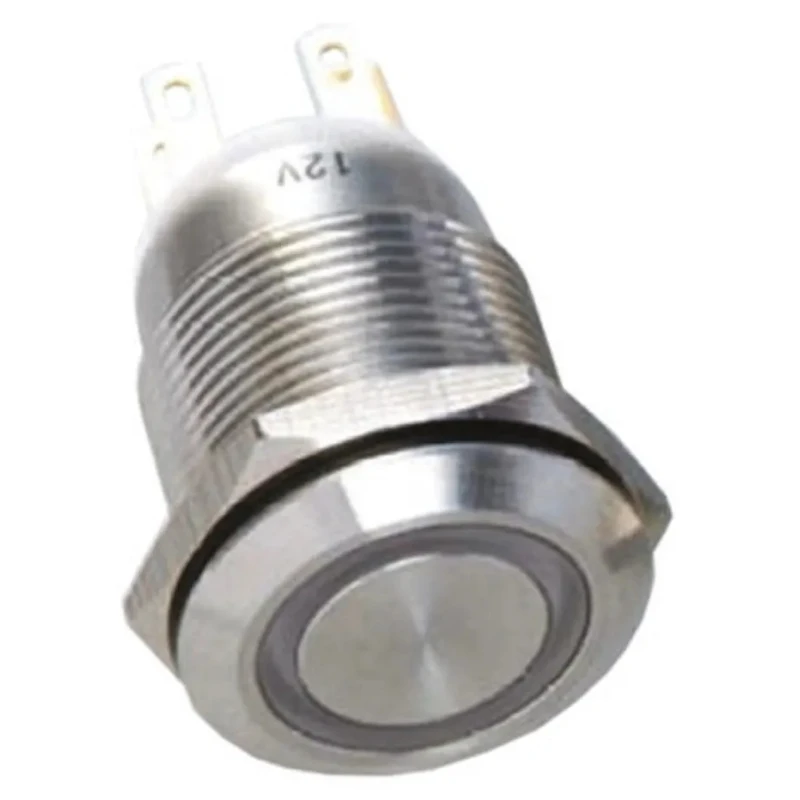

EOZ R Series Illuminated Push Button Switch Panel Mount Momentary Silver Actuator 19.2 mm Cutout SPDT White R19FFSSPAGRW6



Category Push Button Switch Brand EOZ Condition New

Specifications

Country of Origin	France
Brand	EOZ
Model	R19FFSSPAGRW6
IP Rating	IP65
Mount Type	Panel
Series	R
Maximum Operating Temperature	55°C
Contact Configuration	SPDT
Switch Configuration	1 NO/1 NC
Minimum Operating Temperature	-20°C
Panel Cutout Size	19.2 mm
Terminal type	Solder
Standards/Approvals	RoHS
LED Colour	White
Switch Operation	Momentary
Actuator Colour	Silver
Actuator Style	Button
Switch Contact Current	5A
Contact AC Voltage	250V ac

Key Features

This switch is vandal resistant and impact rated to IK09, ideal for harsh industrial environments.
It features a long service life making it suitable for public spaces and exposed applications.
The white LED illumination activates when the button is pressed enhancing visibility.
The panel cutout size is 19.2 mm with solder terminal connections.
The switch supports a 5 A contact current and 250 V ac contact voltage.
Operation temperature range from -20°C to 55°C suits many industrial conditions.
The switch configuration is 1 NO/1 NC with SPDT contacts for versatile circuit control.
IP65 protection ensures dust-tight and water jet resistance.

Product Description

EOZ R19FFSSPAGRW6 illuminated push button switch is a high-quality, momentary panel mount switch engineered for industrial and commercial applications requiring durability and reliability. Featuring a silver actuator style button with a 19.2 mm cutout, this switch is designed to withstand heavy usage and environmental exposure.

The switch uses SPDT contact configuration with 1 NO/1 NC contacts rated for 5 A current at 250 V ac, making it suitable for various electrical control circuits. The white LED illumination adds clear visual feedback, ensuring the switch status is easily identifiable in low light or public environments.

The IP65 rating provides full protection against dust ingress and resistance against low-pressure water jets from any direction, assuring longevity even in aggressive or exposed industrial environments. Additionally, the IK09 impact rating guarantees vandal resistance, sustaining impacts equivalent to 10 joules which corresponds to a 5 kg mass dropped from approximately 200 mm.

This product operates reliably within a temperature range from -20°C to 55°C, covering various environmental conditions typical of machinery, factory equipment, access control systems, and public kiosks or vending machines.

Vandal resistant with IK09 impact protection. Sealed to IP65 for dust and water resistance. Illuminated momentary operation with white LED. Panel mount installation with 19.2 mm cutout. SPDT contact configuration with 5A current rating at 250V ac.

Silver actuator button style for industrial use. Operates reliably between -20°C and 55°C. Ideally suited for access control, factory equipment, public ticketing, and kiosks.

The EOZ R Series illuminated Push Button Switch is manufactured in France and meets RoHS compliance standards, ensuring high quality and environmental standards. Its robust design and reliable operation make it a preferred choice for heavy-duty industrial and commercial use cases.

Explore more electrical switch options and EOZ brand products at EnvMart to find tailored solutions for your automation and control needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The switch features a SPDT (Single Pole Double Throw) contact configuration with 1 NO (Normally Open) and 1 NC (Normally Closed) contact, allowing for versatile circuit control.

This model operates reliably within a maximum temperature of 55°C, making it suitable for various industrial conditions.

The required panel cutout size for installation is 19.2 mm.

The switch has an IP65 rating, providing full protection against dust ingress and resistance to low-pressure water jets from any direction.

It features white LED illumination that activates when the button is pressed, enhancing visibility in low light conditions.

The switch supports a contact current rating of 5 A at 250 V ac, making it suitable for various electrical control circuits.

The minimum operating temperature for this switch is -20°C, allowing it to function in colder environments.

The actuator style is a button with a silver color, designed for industrial use.

Yes, the switch's IP65 rating and impact resistance (IK09) make it suitable for outdoor and harsh industrial environments.

The switch uses solder terminal connections for installation.

This switch is manufactured in France, ensuring adherence to quality and environmental standards.

The switch meets RoHS compliance standards, ensuring it adheres to environmental regulations.
