EOZ Industrial IP67 4 Key Plastic Keypad with Anodised Aluminium Actuator IP67

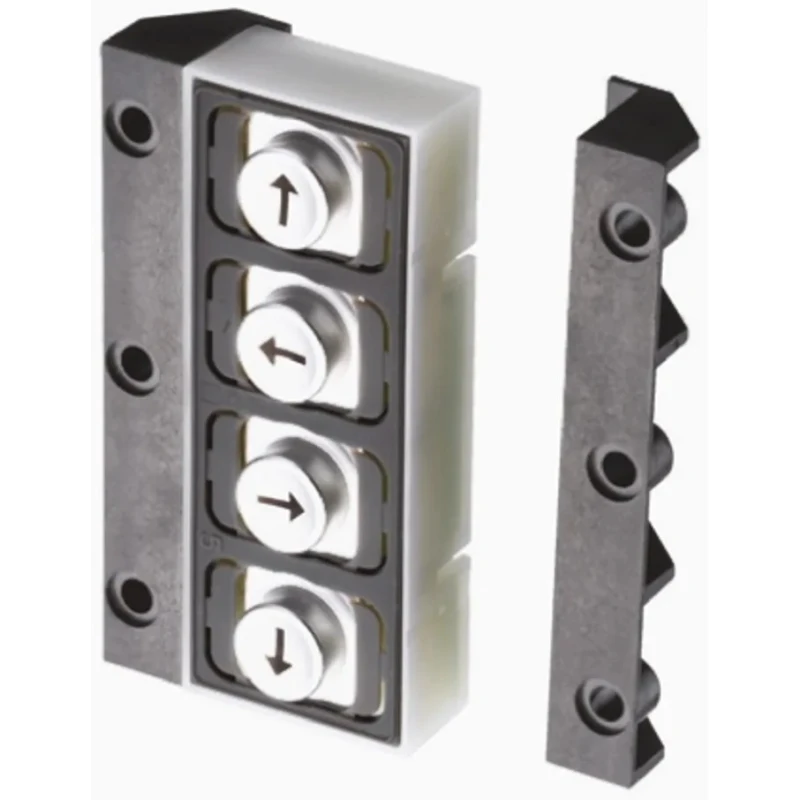

EOZ M04PARSANLPX040 IP67 4 Key Plastic Keypad is engineered for reliability and ruggedness, suited for industrial and public use requiring a durable, vandal-resistant interface with tactile feedback. This series M keypad features a 4 x 1 keyboard layout with anodised aluminium actuators colored black for clear visibility and robust operation.

The keypad has an IP67 ingress protection rating on the front face, ensuring protection against dust and water ingress, combined with an IK09 impact resistance when mounted behind a 3mm thick panel. The silicone membrane with carbon pills on a gold-coated PCB guarantees an exceptionally long mechanical life of 4 million actuations providing consistent tactile feedback.

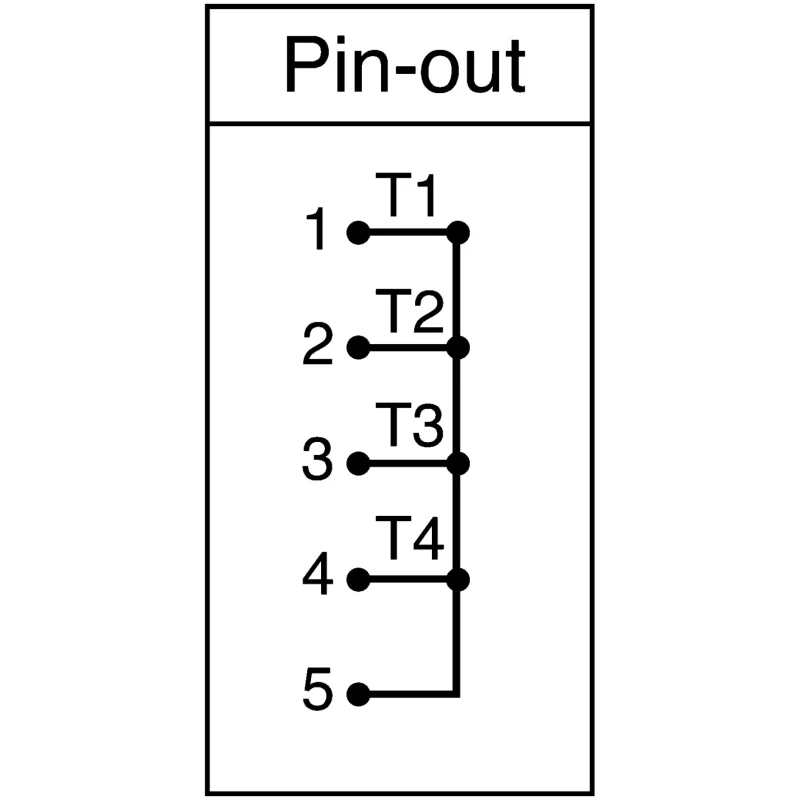

This model can be securely mounted from the rear through integrated mounting holes using the supplied ABS polycarbonate brackets and silicone sealing gasket mounting kit, making installation flexible and reliable. The keypad features a common point output and does not support illumination, suitable for applications where ruggedness is prioritized over lighting.

Powered by a 5V DC supply with maximum current of 240mA, it offers responsive operation with an actuation force of 1.9N (+/- 30%) and a key travel range of 0.8 to 1.3 mm. The maximum operating temperature is 85°C while the minimum operating temperature is -25°C, making it ideal for a variety of industrial, automation, and control environments.

The plastic housing offers robust mechanical protection and is available in multiple colours to suit design requirements. The tactile felt membrane operation enables precise and reliable actuation. IP67 rating protects the keypad against dust and temporary immersion in water.

Strong anodised aluminium keys resist twisting and wrenching. Mounting kit includes silicone sealing gasket and ABS polycarbonate brackets for secure installation. Typical applications include industrial automation, control panels, machinery operation, and public interfaces.

Manufactured to comply with RoHS and CE standards ensuring environmental and safety compliance.

Choose EOZ IP67 4 Key Plastic Keypad for demanding industrial and public applications requiring ruggedness, longevity, and tactile reliability. Explore more in our Keypad Switches category for complementary control components.
