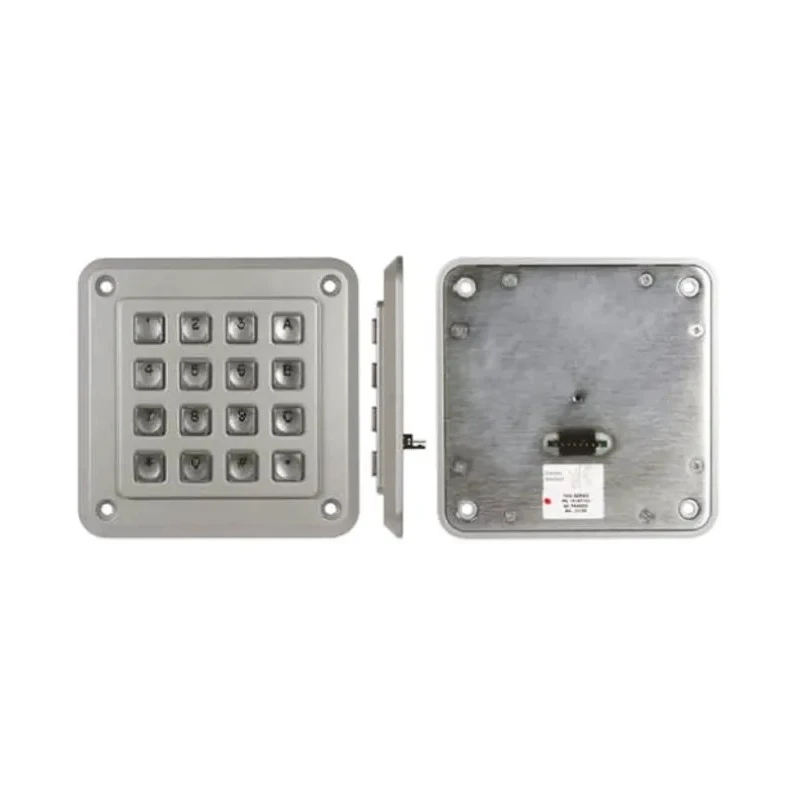

Storm IP65 16 Key Die Cast Zinc Keypad Matrix Output Silver Housing 4x4 Layout

The Storm IP65 16 Key Die Cast Zinc Keypad model 1K160102 is a robust and sealed input device designed for industrial and outdoor environments. Featuring a durable metal housing and keytops made from chromed die cast zinc, this keypad offers vandal resistance and operational reliability in challenging conditions.

The keypad has a 4x4 layout with 16 keys arranged in a matrix output configuration. It does not employ membrane operation but instead relies on gold on nickel plated FR4 PCB contacts for consistent performance and electrical reliability. The operational life per key exceeds 4 million cycles, making it suitable for high-use applications.

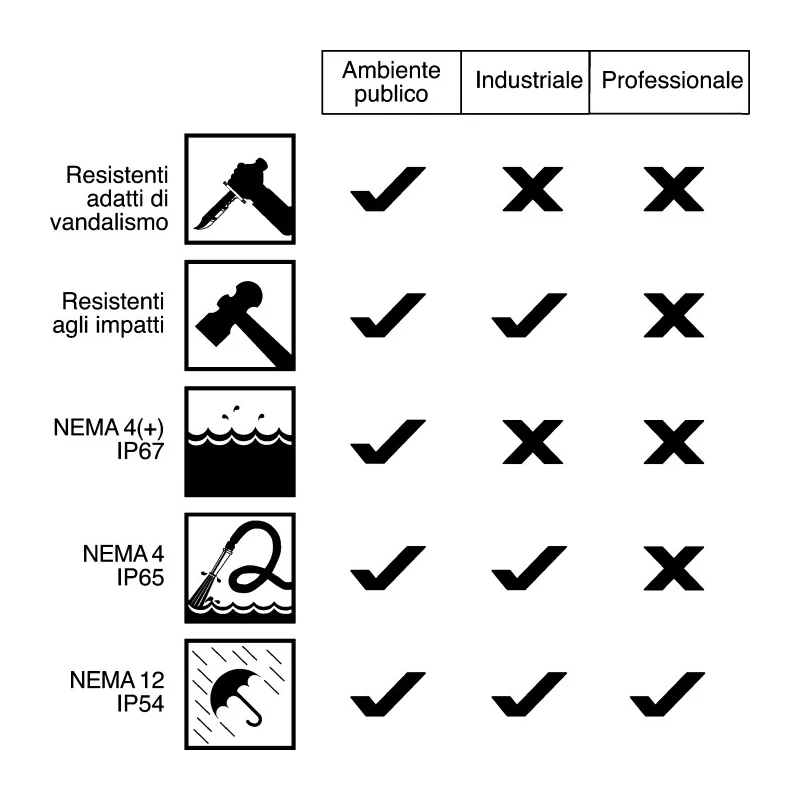

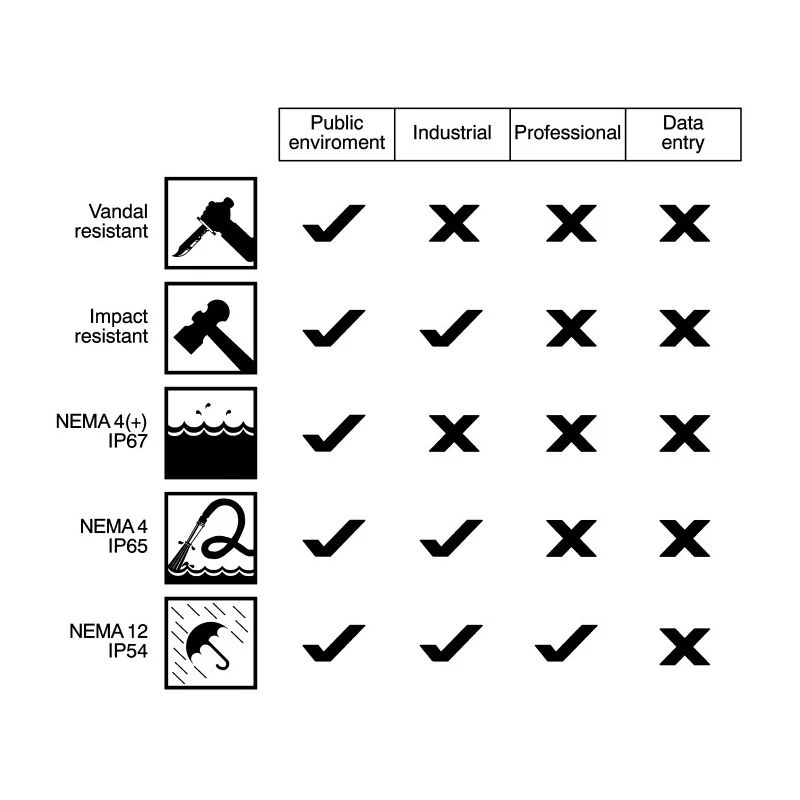

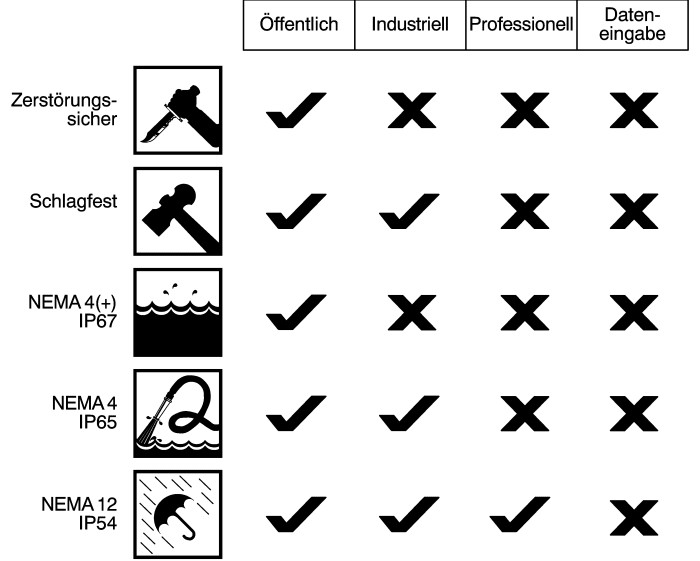

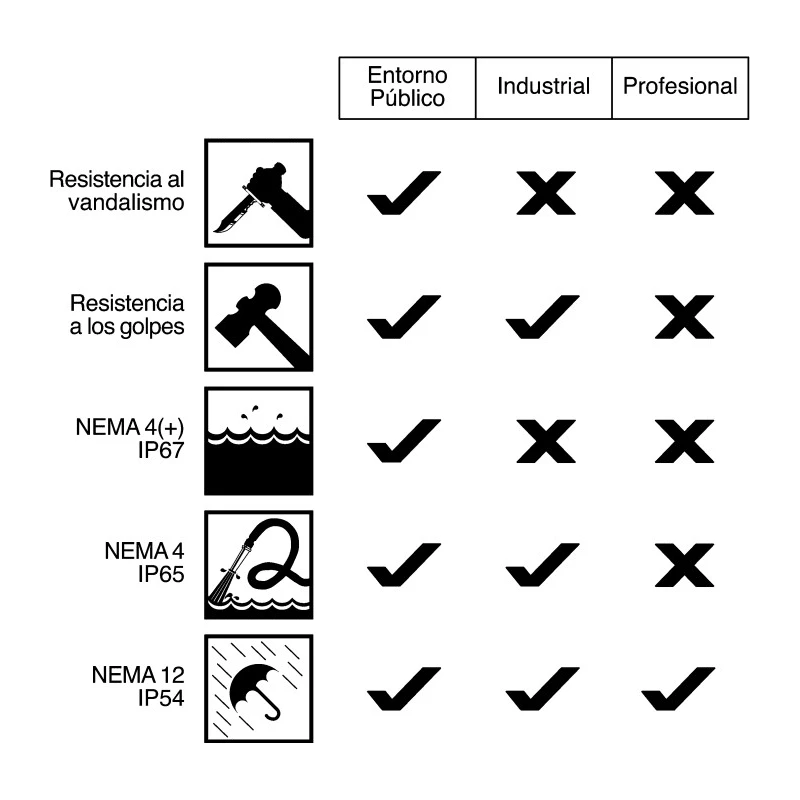

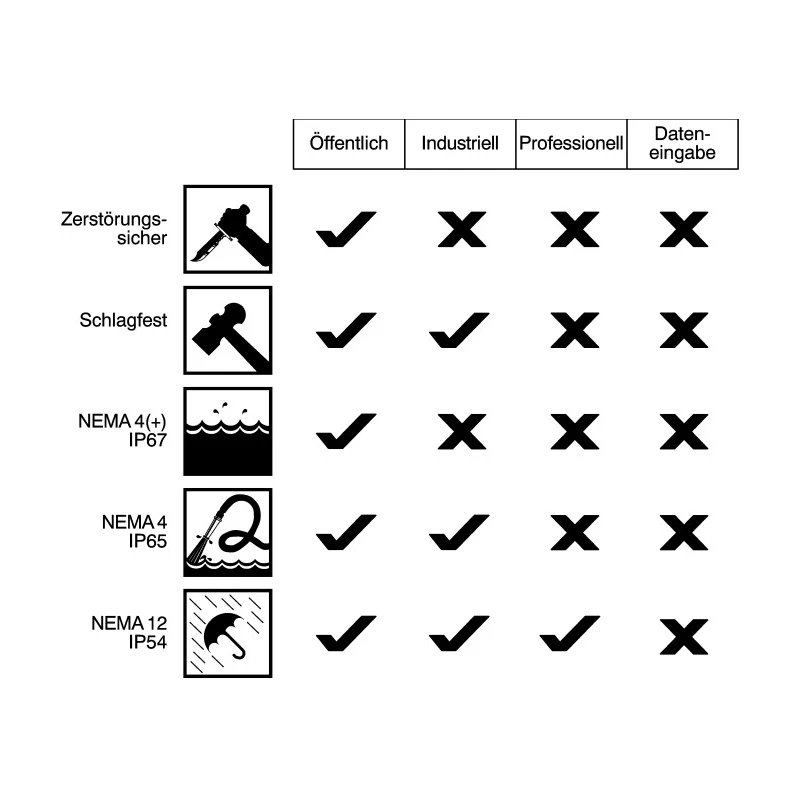

With an IP65 rating, the keypad is fully sealed to protect against dust ingress and water jets, allowing deployment in exposed outdoor installations, industrial automation controls, and public access panels. The housing and actuator materials are high-quality die cast zinc colored silver and black, respectively. This keypad can operate in extreme temperatures from -40°C to +100°C, supporting a wide range of industrial applications.

Performance specifications include a contact rating of 50mA at 24V DC, contact resistance of 100 ohms, dielectric strength of 500 Vac, and insulation resistance of 50 megaohms, ensuring safe and reliable operation. The keypad conforms to RoHS and CE directives, reflecting adherence to environmental and quality standards.

The device requires a panel cutout of 118.5 mm by 118.5 mm for installation, simplifying integration into control systems. Optional accessories such as back boxes and privacy shrouds are available for enhanced security and installation convenience.

This Storm keypad is ideal for industrial automation, electrical and control panels, outdoor equipment, public kiosks, and other applications where a rugged, vandal-resistant, and sealed keypad is essential. It combines robust mechanical engineering with precise electrical performance to deliver durable, long-lasting input functionality.

The keypad features a 4 by 4 key layout made of die cast zinc for durability. It uses a matrix output without membrane operation to ensure reliable electrical contact. The housing is silver-colored die cast zinc with black die cast zinc actuators.

The unit is rated IP65, providing dust-tight and water jet resistance suitable for outdoor use. Mechanical life per key exceeds 4 million operations for extended service. Suitable for operating temperatures from -40°C to +100°C, ensuring performance in extreme conditions.

The keypad uses gold on nickel plated FR4 contact PCB technology to ensure low contact resistance and high reliability. Contact rating is 50mA at 24V DC with 100Ω contact resistance and dielectric strength of 500Vac. It complies with RoHS and CE standards, ensuring environmental and safety compliance.

Panel cutout dimensions are 118.5 mm by 118.5 mm for easy mounting in control panels. Browse the Electronics & Electricals > Switches & Sockets > Keypad Switches category for more specialized keypad solutions from trusted brands like Storm at EnvMart.
