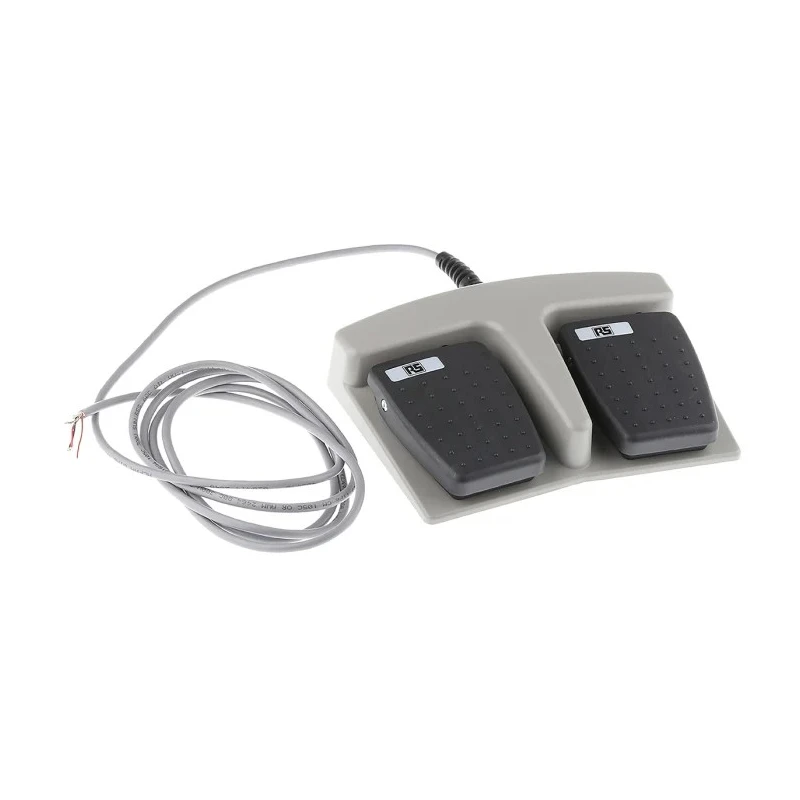

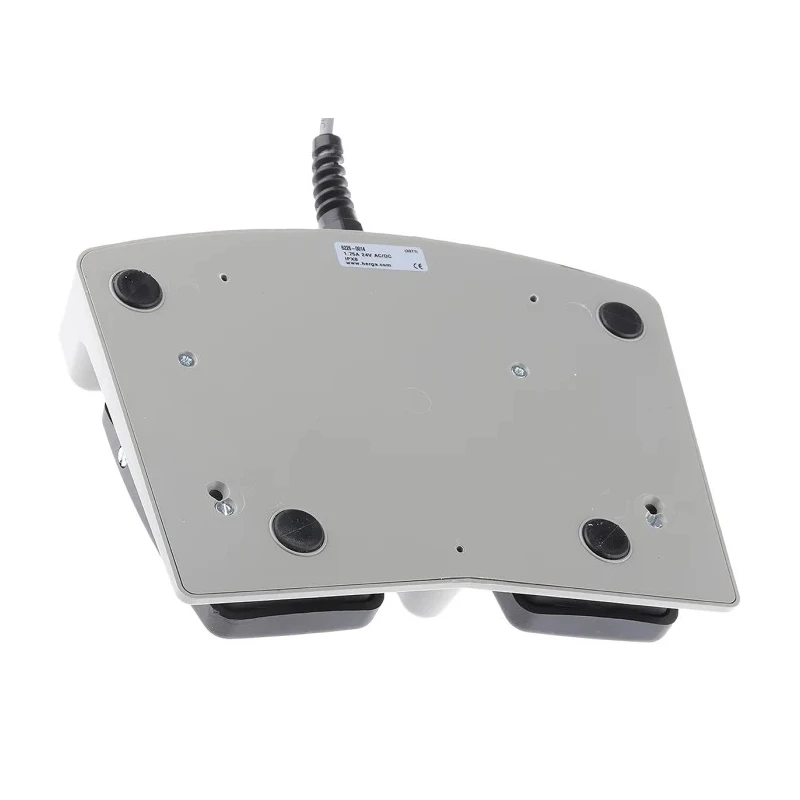

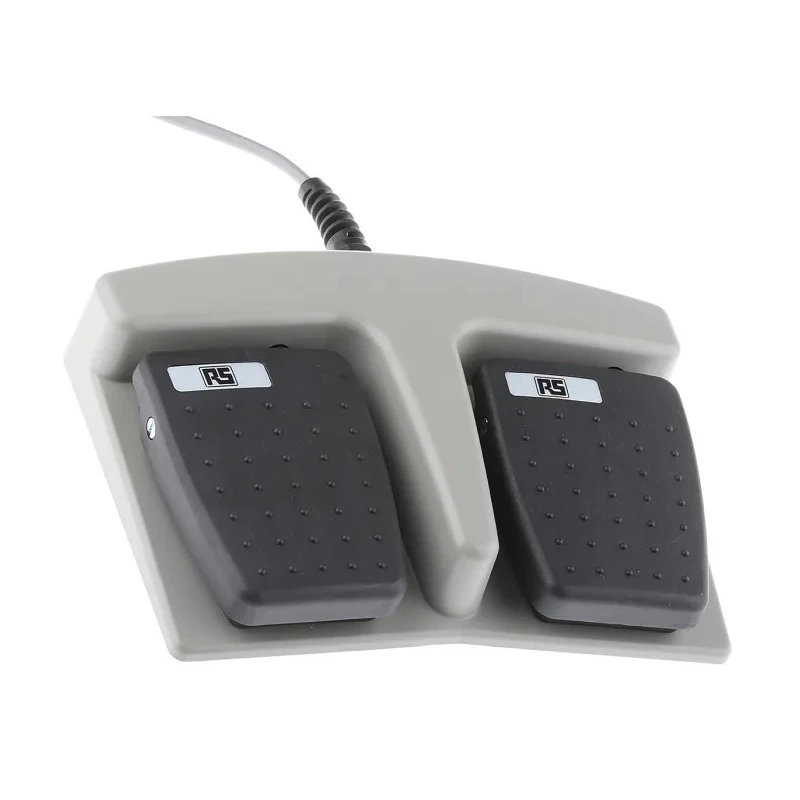

Schneider Electric General Purpose Momentary Foot Switch DPST Thermoplastic 3A Contact Current 24V AC 808-7005

RS PRO 808-7005 General Purpose Momentary Foot Switch is a high-quality DPST switch with momentary operation designed for reliable use in various industrial and electrical applications. Featuring a strong thermoplastic body, this foot switch can withstand rugged conditions and offers IPX7 waterproof protection, making it suitable for environments where accidental water exposure may occur.

This foot switch operates at 24V AC/DC voltage and supports a contact current of 3 A, enabling safe and effective circuit control. The device uses silver contacts with a double pole single throw configuration, controlled by foot pressure applied to double pedals, enhancing user safety and ease of operation.

The product is equipped with a 2-meter long black 3-core cable, facilitating flexible installations in automation, manufacturing, and electrical control settings. Its compact dimensions of 150 mm length, 207 mm width, and 42 mm height ensure space-efficient integration.

Designed with operator comfort in mind, the switch features a low-profile, rear-hinged mechanism with an anti-slip pad and raised tread pattern, improving foot traction and reducing fatigue during prolonged use.

This foot switch meets stringent safety and quality requirements, including IEC a60601-1 and UL 60601-1 medical safety standards, as well as RoHS compliance. It is ideal for use in industrial automation, machinery control, electrical switching, and other applications where reliable and ergonomic momentary foot activation is necessary.

The device is momentary with a DPST contact layout. Thermoplastic housing provides durability and safe operation. IPX7 rating ensures resistance to water ingress up to 1 meter for 30 minutes. Silver contacts optimize electrical conductivity and reliability.

Equipped with a 2 m black 3-core cable for versatile positioning. Compact size for convenient installation in diverse settings. Complies with CE and RoHS standards ensuring quality and environmental safety. Meets ANSI/AAMI ES60601-1:2005/(R)2012 and related medical safety standards.

Anti-slip pedal design improves safety and user comfort. Suitable for general-purpose and harsh environment use. Explore more high-quality Foot Switches and electrical components in the Electronics & Electricals category on EnvMart.
