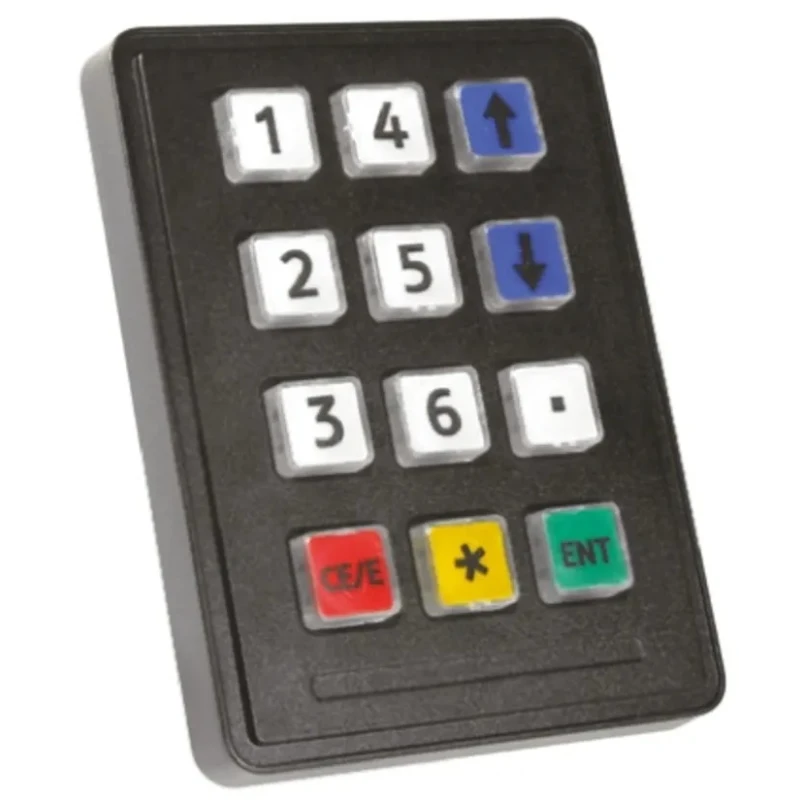

Storm IP65 12 Key Polymer Keypad with Matrix Output, 3x4 Layout, Plastic Actuator, IP65 Protection IP65
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Storm |
| Model | IP65 |
| IP Rating | IP65 |
| Housing Material | Polymer |
| Series | 720 GFX |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | RoHS |
| Number of Keys | 12 |
| Keypad Layout | 3 x 4 |
| Keypad Output | Matrix |
| Housing Colour | Black |
| Panel Cutout Width | 96mm |
| Actuator Material | Plastic |
| Mechanical Life Per Key | 2000000Operations |
| Maximum Switch Rating | 50 mA @ 24 V dc |
Key Features
- Features 12 polymer keys with matrix output for reliable interfacing.
- Durable plastic actuator material with over 2 million mechanical operations per key.
- Sealed design ensures IP65 water and dust ingress protection.
- Suitable for installation above or below panel with a panel cutout size of 96mm by 96mm.
- Operates reliably from -20°C up to 60°C ambient temperatures.
- Maximum switch rating is 50 mA at 24 V DC for low power applications.
- Includes Set ‘A’ legend tiles for customizable keytop graphics with snap-on transparent caps.
- Compliant with RoHS standards ensuring environmental safety.
Product Description
Storm IP65 12 Key Polymer Keypad IP65 is a high-durability input device engineered for industrial, automation, and electrical applications requiring robust, responsive keypad functionality. Featuring a 3x4 keypad layout with 12 tactile polymer keys, it employs a matrix output suitable for reliable digital interfacing.
The keypad uses plastic actuators that provide a positive "over centre" tactile feedback with over 2 million mechanical life cycles per key, ensuring long-lasting performance in demanding environments. The sealed design meets IP65 standards for water and dust ingress protection, making it ideal for use in harsh industrial or outdoor settings.
Installation flexibility is provided with options for above or below panel mounting, supported by a panel cutout dimension of 96 mm width by 96 mm height. It is rated for operation in a wide temperature range from -20°C to 60°C, supporting applications across diverse climatic conditions.
The maximum switch rating of 50 mA at 24 V DC suits low current control circuits commonly found in industrial automation systems. Customization options include a set of legend tiles (Set ‘A’) included with the product, allowing the end user to modify keytop symbols easily under the transparent snap-on key caps, enhancing usability and adaptability for various control functions.
Constructed to RoHS compliance, this keypad aligns with environmental standards for hazardous substance restrictions.
Applications span electrical panels, control systems, industrial automation equipment, and any environment requiring sealed tactile input devices with ergonomic design and durability.
Features 12 polymer keys with matrix output for reliable interfacing. Durable plastic actuator material with over 2 million mechanical operations per key. Sealed design ensures IP65 water and dust ingress protection. Suitable for installation above or below panel with a panel cutout size of 96mm by 96mm.
Operates reliably from -20°C up to 60°C ambient temperatures. Maximum switch rating is 50 mA at 24 V DC for low power applications. Includes Set ‘A’ legend tiles for customizable keytop graphics with snap-on transparent caps.
Compliant with RoHS standards ensuring environmental safety. Browse more products in the Keypads & Input Devices category at EnvMart for a wide range of electrical and automation interface solutions.
Explore more products in our Keypads & Input Devices category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The keypad has an IP65 rating, ensuring protection against water and dust ingress.
It operates reliably at a maximum temperature of 60°C.
This model features 12 polymer keys arranged in a 3x4 layout.
The maximum switch rating is 50 mA at 24 V DC, suitable for low power applications.
The housing material is polymer, providing durability and resistance to environmental factors.
Yes, it is suitable for installation both above and below a panel, with a cutout size of 96mm by 96mm.
Each key has a mechanical life expectancy of over 2 million operations.
It complies with RoHS standards, ensuring it meets environmental safety requirements.
The keypad employs a matrix output for reliable interfacing.
The minimum operating temperature is -20°C, allowing for use in various climatic conditions.
The keypad includes Set ‘A’ legend tiles for customizable keytop graphics with snap-on transparent caps.
It is suitable for use in electrical panels, control systems, and industrial automation equipment.
