Storm IP65 4 Key Die Cast Zinc Keypad IP65

Storm IP65 4 Key Die Cast Zinc Keypad IP65 is a robust keypad designed for industrial and outdoor electrical and automation applications. Crafted from high-quality die cast zinc material for both housing and actuators, this keypad is engineered to withstand challenging environments including public and outdoor use with vandal resistance.

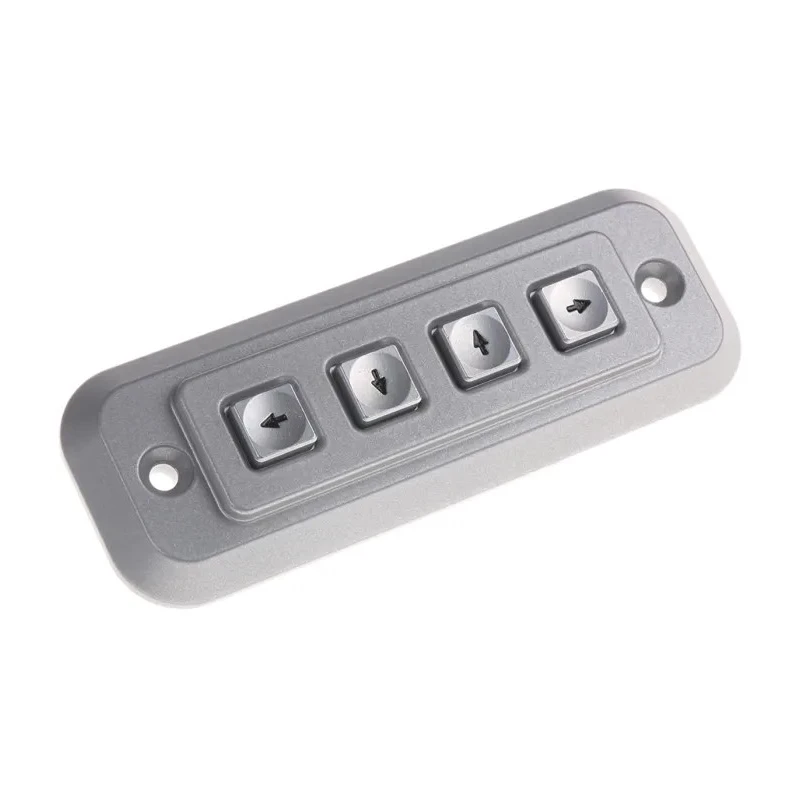

The keypad features a 4 x 1 key matrix layout with mechanically engraved keytop characters, gold-on-nickel plated FR4 contact PCB for superior contact reliability, and is sealed to an IP65 ingress protection rating ensuring dust-tight and water-resistant operation. The operational temperature range spans from -40°C to a maximum of 100°C, allowing it to perform excellently in extreme climatic conditions.

Each key supports a mechanical life exceeding 4 million operations, backed by electrical contact ratings of 50mA at 24Vdc, contact resistance of 100Ω, dielectric strength of 500Vac, and insulation resistance of 50MΩ. The keypad panel cutout dimensions are 42.5mm in width and 118.5mm in height, facilitating precise mounting in various panels.

This product is compliant with RoHS and CE standards, reflecting a commitment to environmental and safety regulations. Its silver metal housing and actuator, combined with engraved keytop characters, make it highly readable and reliable for critical control systems.

Suitable for installation in industrial, commercial building automation, HVAC control panels, outdoor kiosks, and other environments demanding robust keypad solutions with IP65 sealing. Additional accessories such as back boxes and privacy shrouds are available to further enhance installation flexibility and security.

Durable die cast zinc material for housing and actuators. Fully sealed IP65 rating for dust and water protection. Over 4 million mechanical operations life per key. Wide operating temperature range: -40°C to 100°C. 4-key matrix output suitable for control applications.

Engraved keytops with gold-plated contact PCB for reliability. Certified RoHS and CE compliant. Compact panel cutout size (42.5mm x 118.5mm). Designed for outdoor and vandal-resistant environments. Discover more industrial Keypad Switches and electrical automation components on EnvMart for optimized control solutions.
