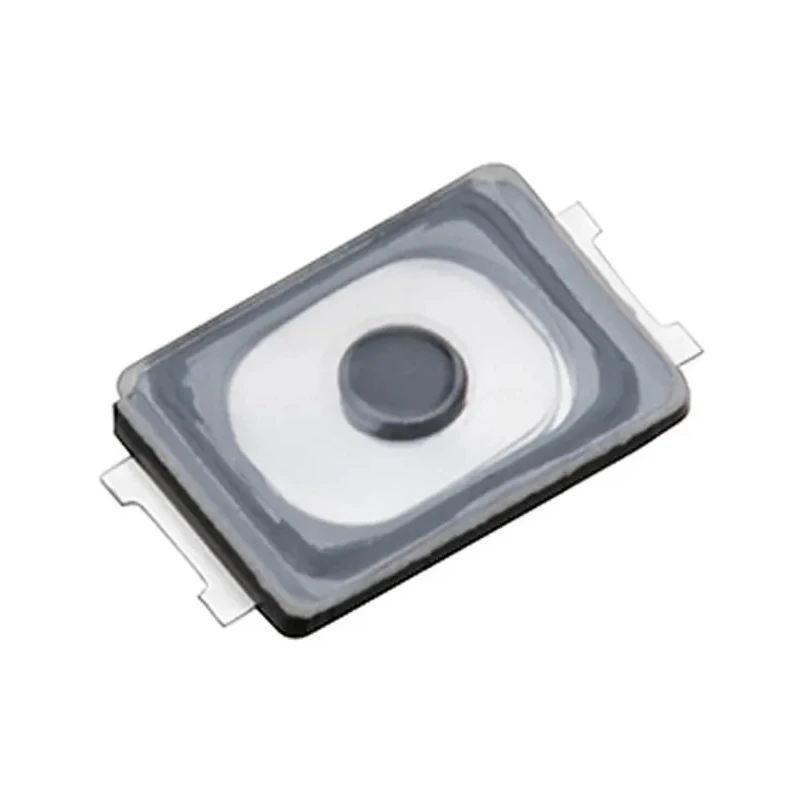

Panasonic Tactile Switch Push Plate SPST, 20mA 15V DC, Surface Mount, IP67, Black,

Panasonic EVPAWCD4A is a surface mount tactile switch engineered to provide precise momentary switching in compact electronic assemblies. As part of Panasonic's EVP series, this switch is tailored for industrial, consumer electronics, and automation applications where reliability, compact size, and long service life are essential.

Sporting an IP67 ingress protection rating, this switch can withstand exposure to dust and water, making it suitable for challenging environments such as industrial controls, medical devices, and laboratory instrumentation. The actuator is designed as a push plate in black color, delivering a clear tactile response for the user and guaranteeing accurate operation every cycle.

Single pole single throw (SPST) configuration ensures simple circuit control. Designed for maximum contact current of 20mA at 15V DC, compatible with sensitive logic-level applications. Surface mount package with straight terminal orientation enables automated placement and soldering on densely populated printed circuit boards.

Ultra-thin profile (0.6mm height) and minimal footprint (3mm × 2mm) facilitate use in portable electronics and miniature devices. High mechanical durability rated to 500,000 operations, minimizing maintenance and replacement in long-life products.

Withstands harsh environmental conditions with an operating temperature range from -40°C up to 85°C. Actuator provides a 2.4N operating force for pronounced tactile feel, enhancing user interaction and feedback.

The Panasonic EVPAWCD4A tactile switch finds widespread application in industrial automation panels, test equipment, security keypad modules, medical instrumentation, automotive controls, and professional electronic devices. Its compact profile, robust build, and dependable operation make it a preferred choice for engineers seeking quality and performance.
