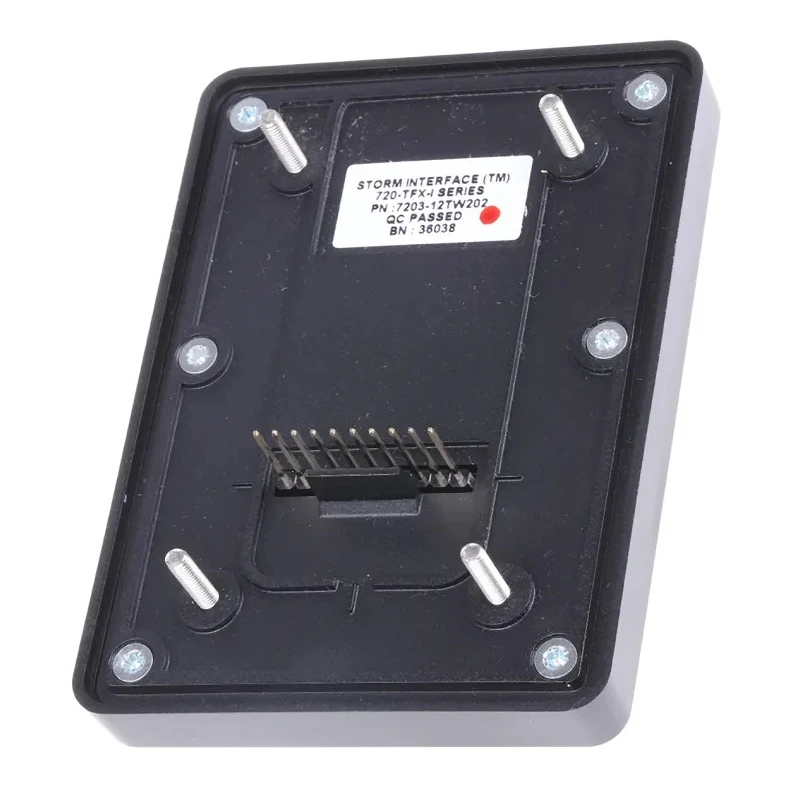

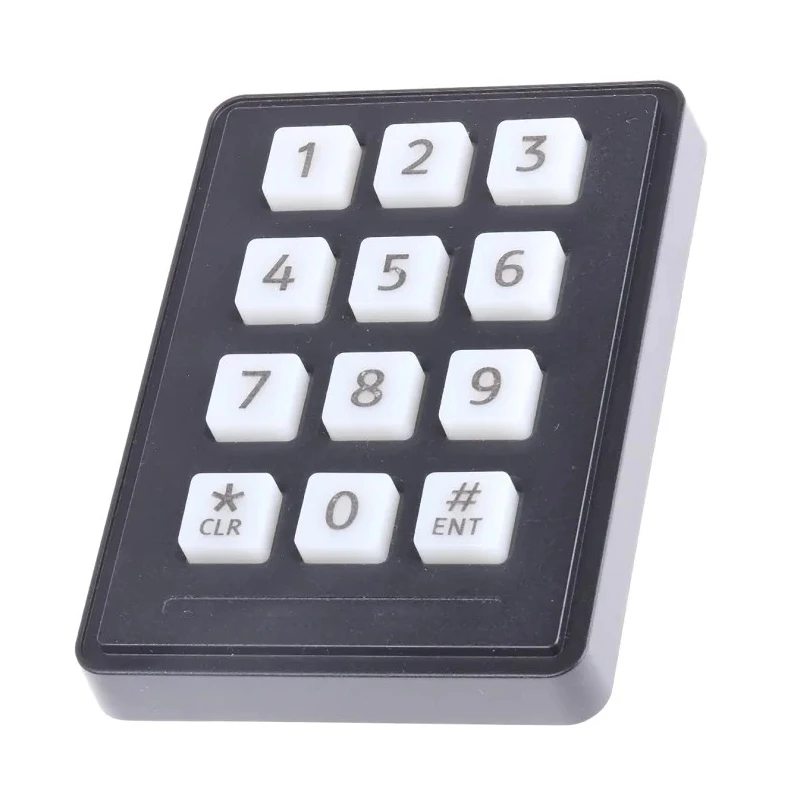

Storm IP65 12 Key Illuminated Polymer Keypad
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Storm |
| Model | IP65 |
| IP Rating | IP65 |
| Housing Material | Polymer |
| Series | 720 TFX- i |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | RoHS |
| Actuator Colour | White |
| Number of Keys | 12 |
| Keypad Layout | 3 x 4 |
| Keypad Output | Matrix |
| Housing Colour | Black |
| Panel Cutout Width | 70mm |
| Panel Cutout Height | 96mm |
| Actuator Material | Plastic |
| Mechanical Life Per Key | 2000000Operations |
| Maximum Switch Rating | 50 mA @ 24 V dc |
| EOZ IP40 12 Key Polycarbonate KeypadBrand | EOZ |
Key Features
- The keypad layout is 3 x 4 with 12 tactile, illuminated keys for ease of use in low light.
- Manufactured with durable polymer housing in black color for industrial environments.
- Supports matrix keypad output with no membrane operation and white plastic actuators.
- Offers a mechanical life of over 2 million operations per key ensuring durability.
- Suitable for installation above or below panels with a panel cutout size of 96mm height and 70mm width.
- Can operate within temperatures ranging from -20°C to 60°C for harsh environments.
- Water and dust resistance certified with IP65 ingress protection rating.
- Maximum switch rating is 50 mA at 24 V dc for control circuits.
Product Description
Storm 7203-12TW202 IP65 12 Key Illuminated Polymer Keypad is engineered for extended use in demanding industrial and automation environments. The keypad features a 3 by 4 layout with 12 tactile keys that provide a responsive 'over centre' action for accurate input. Its integral illumination supports operation in dark or partially lit locations, enhancing visibility and usability.
The robust polymer housing is black-colored with white plastic actuators, designed to withstand harsh industrial conditions. The keypad supports matrix output and does not utilize membrane operation, ensuring reliable electrical performance.
With an IP65 rating, the device offers protection against dust ingress and low-pressure water jets from any direction, making it suitable for outdoor and rugged applications. The keypad can be mounted above or below the panel surface with a panel cutout height of 96mm and width of 70mm for flexible installation options.
The mechanical life expectancy exceeds two million cycles per key, guaranteeing long-term durability in continuous use. It operates reliably within a temperature range of -20°C to 60°C, accommodating a variety of industrial environments and climatic conditions.
The maximum switch rating is 50 mA at 24 V dc, suitable for low voltage control circuits. The product complies with RoHS environmental standards, ensuring reduced hazardous substances.
This keypad is ideal for industrial automation systems, control panels, instrumentation, and harsh environment applications where ruggedness and reliability are critical. Its illuminated keys and IP65 rating allow effective use in challenging electrical and automation scenarios.
The keypad layout is 3 x 4 with 12 tactile, illuminated keys. Durable polymer black housing with white plastic actuators. Matrix keypad output with no membrane operation. Mechanical life of over 2 million operations per key.
IP65 water and dust ingress protection rating. Operates between -20°C and 60°C for harsh conditions. Panel cutout size: 96mm height x 70mm width. Maximum switch rating: 50 mA at 24 V dc. Meets RoHS environmental compliance.
Explore more reliable Keypad Switches and electrical components with EnvMart's extensive catalog to find solutions tailored to your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 60°C.
Each key has a mechanical life expectancy of over 2 million operations.
This keypad has an IP65 rating, providing protection against dust and low-pressure water jets from any direction.
The panel cutout size required for installation is 96mm in height and 70mm in width.
It supports matrix output and does not utilize membrane operation, ensuring reliable electrical performance.
The keypad layout is configured as 3 x 4, featuring 12 tactile keys.
The minimum operating temperature for this keypad is -20°C.
The maximum switch rating is 50 mA at 24 V dc, suitable for low voltage control circuits.
The housing of this keypad is made from durable polymer in a black color.
The actuators on this model are white in color.
Yes, it complies with RoHS environmental standards, ensuring reduced hazardous substances.
This keypad is manufactured in the United Kingdom.
