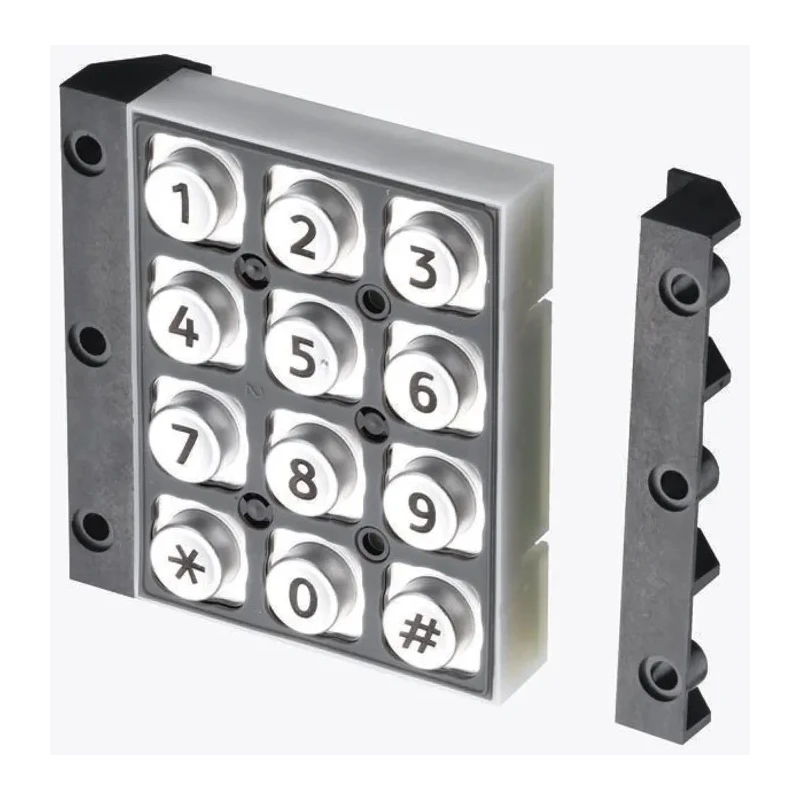

EOZ Industrial IP67 12 Key Plastic Matrix Keypad, 4 x 3 Layout, Anodised Aluminium Keys, IP67

The EOZ M12PARSANSMT IP67 12 Key Plastic Matrix Keypad is a rugged, cost-effective industrial keypad designed for demanding environments and public use. Featuring a 12-key layout arranged in a 4 by 3 matrix, this plastic keypad provides tactile feedback through a silicone membrane with carbon pills on a gold-coated printed circuit board, ensuring long-lasting reliability and precise actuation.

The keypad housing is built from durable plastic with anodised aluminium actuators in black, optimizing both durability and aesthetic appeal. Its front face carries an IP67 rating, providing complete protection against dust ingress and water immersion, making it ideal for outdoor or harsh industrial settings. With an IK09 impact resistance when mounted behind a 3mm thick panel, it offers enhanced protection against vandalism and mechanical impact.

Designed to operate over a wide temperature range from -25°C to 85°C, this keypad is suitable for use in extreme conditions. Each key is rated for 1,000,000 mechanical operations, ensuring longevity in high-use applications. The device is supplied with a mounting kit that includes a silicone sealing gasket and two ABS polycarbonate mounting brackets, allowing easy and secure rear mounting.

Its 12mm diameter aluminium keys are anti-twist and anti-wrench, improving user experience and durability. The keypad operates at a 5V DC supply voltage with a maximum current of 240mA and requires an actuation force of 1.9N ±30%, with a travel distance between 0.8mm and 1.3mm for consistent tactile feel.

This keypad is RoHS and CE compliant, meeting key industry standards for safety and environmental protection. The EOZ M12PARSANSMT keypad is ideal for industrial automation, control panels, public kiosks, and other applications demanding rugged and reliable keypad input solutions.

Contains 12 keys arranged in a 4 by 3 layout for versatile input. Features robust plastic housing with anodised aluminium actuators for durability. Complies with IP67 rating ensuring dust-tight and water immersion protection on the front face.

Durable mechanical life offering up to 1,000,000 operations per key. Includes mounting kit with silicone sealing gasket and ABS polycarbonate brackets for secure installation. Designed for operating temperatures from -25°C to 85°C suitable for harsh environments.

Tactile silicone membrane keys with carbon pills on gold-coated PCB for reliable contact. IK09 impact resistance behind a 3mm thick panel enhances vandal resistance. Requires a 5V DC supply with maximum current consumption of 240mA.

Anti-twist and anti-wrench 12mm diameter keys provide secure key operation. Explore the full range of EOZ industrial keypads and switchgear for reliable performance in demanding electrical and automation applications on EnvMart.
