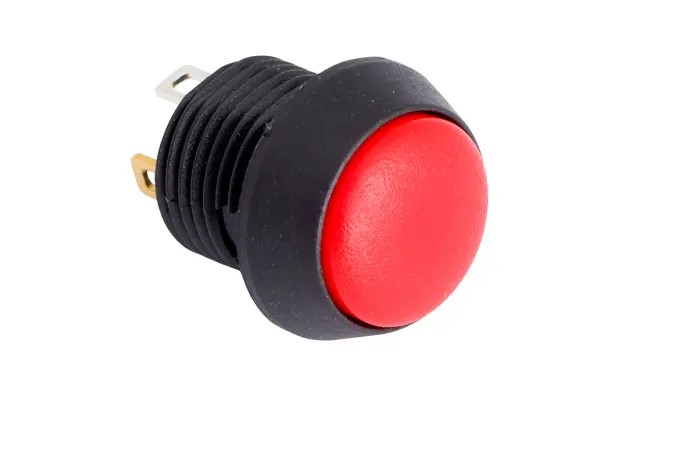

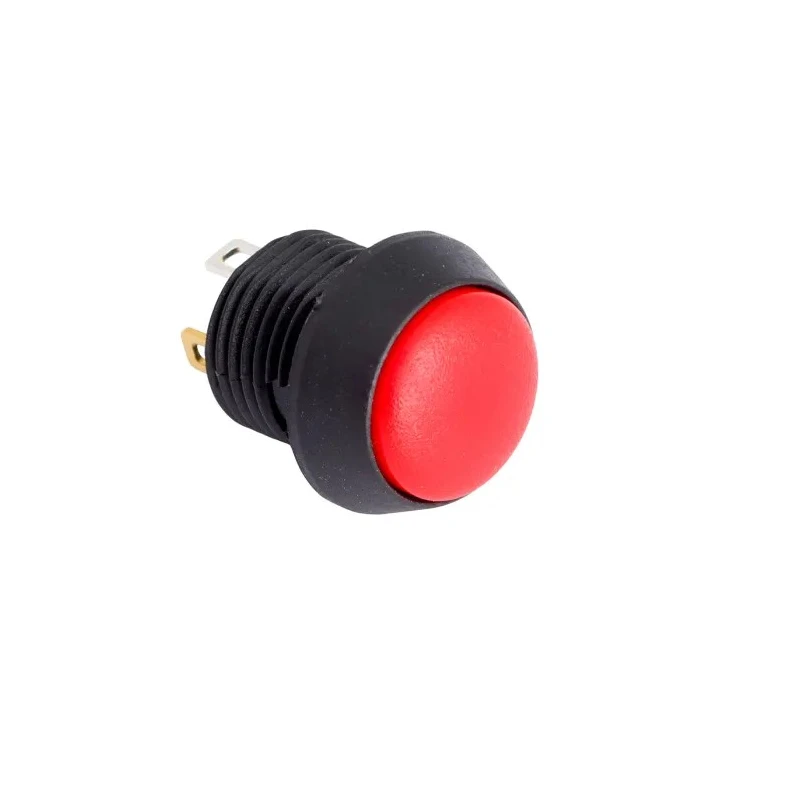

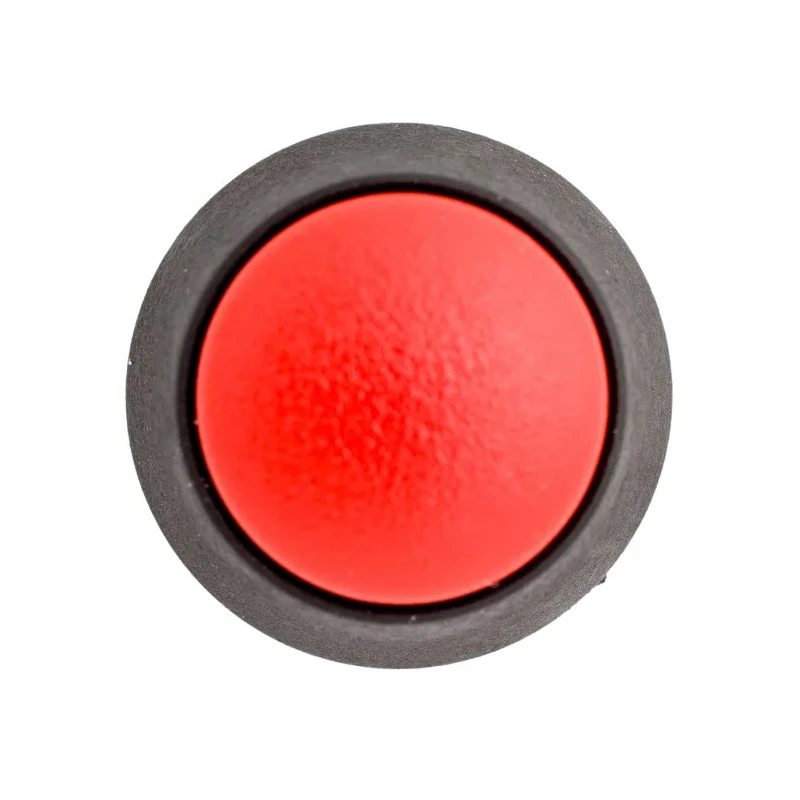

EOZ FL Series Push Button Switch SPST Momentary, 12 mm Cutout, IP67, Panel Mount FL12NR



Category Push Button Switch Brand EOZ Condition New

Specifications

Country of Origin	France
Brand	EOZ
Operating Temperature Range	-40 to +85°C
Model	FL12NR
IP Rating	IP67
Mount Type	Panel
Panel Thickness	1 mm to 6 mm
Ingress Protection	IP67
Series	FL
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Switch Configuration	Momentary
Minimum Operating Temperature	-40°C
Panel Cutout Size	12 mm
Terminal type	Plug-In
Standards/Approvals	RoHS
Switch Operation	Momentary
Actuator Colour	Red
Actuator Style	Cap
Switch Contact Current	65mA
Contact terminals	Gold plated nickel
LED terminals	Silver plated nickel

Key Features

Operates with a momentary switch action suitable for momentary control applications.
Features a red cap actuator with a cap style design providing tactile feedback.
Designed to fit panel thickness ranges from 1 mm to 6 mm.
Offers a sealed, vandal-resistant body with IP67 protection rating for harsh environments.
Gold plated nickel contact terminals ensure reliable conductivity and corrosion resistance.
Silver plated nickel LED terminals improve durability for illumination options, though this model is non-illuminated.
Rated operating temperature range from -40°C to +85°C for a wide variety of industrial conditions.
Contact current is rated for 65 mA suitable for low power control circuits.

Product Description

EOZ FL12NR FL Series Push Button Switch is a robust, panel mount SPST switch designed for momentary operation with a 12 mm panel cutout. It is engineered for industrial and automation applications requiring reliable switching with vandal resistance and ingress protection rated to IP67.

This push button switch is equipped with a red cap actuator of cap style providing users tactile operation feedback. It fits panels from 1 mm up to 6 mm thick, enabling installation versatility. The switch terminals are gold plated nickel for excellent electrical performance and corrosion resistance. LED terminals are silver plated nickel, designed for illumination variants though this specific model does not illuminate.

Operating reliably from -40°C up to +85°C, the switch suits harsh environments typically found in manufacturing, control panels, electrical enclosures, and industrial automation systems. The momentary action allows it to be used for control inputs that require temporary activation such as start/stop functions.

With a contact current capacity of 65 mA and a plug-in terminal type sized at 2.8 x 0.5 mm, it supports precise electrical connections commonly used in control circuit designs. The FL12NR model is RoHS compliant and manufactured in France, ensuring high quality and environmental compliance.

Operates momentarily for transient control circuits. 12 mm standard panel cutout size for compatibility. IP67 sealed and vandal resistant for reliability. Wide operating temperature range suits industrial use. Gold plated contacts provide durable conductivity.

Plug-in terminal style for easy installation. Red cap actuator for clear visual identification. Non-illuminated but compatible with LED terminal plating. Manufactured under RoHS compliance in France. Ideal for automation, electrical panels, and industrial equipment.

This product is part of the EOZ FL series of Push Button Switches offered on EnvMart, designed to meet stringent industrial and automation application standards. Browse more EOZ controls and switches on EnvMart for comprehensive electrical solutions.
