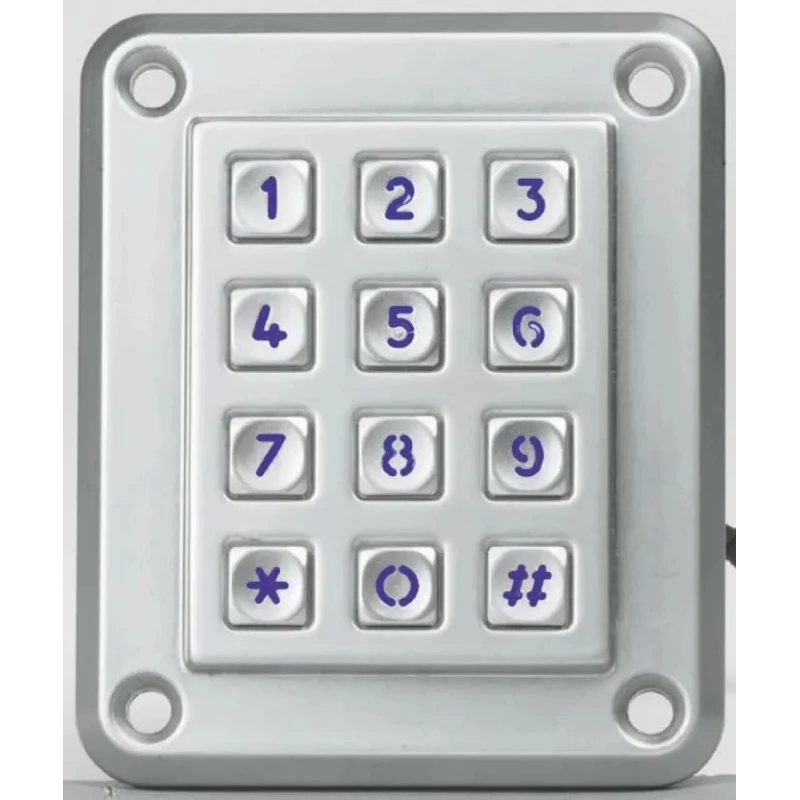

EOZ 12 Key Illuminated ABS Keypad Blue Housing IP67 Protection

Free Delivery in India | Lowest Global Shipping Charges

EOZ 12 Key Illuminated ABS Keypad Blue Housing IP67 Protection



Category Keypads & Input Devices Brand EOZ Condition New

Specifications

Country of Origin	France
Brand	EOZ
Model	IP67
IP Rating	IP67
Housing Material	ABS
Series	S
Maximum Operating Temperature	85°C
Contact Rating	5mA @ 5Vdc
Dielectric strength	1500Vrms
Insulation resistance	≥1000MΩ
Minimum Operating Temperature	-25°C
Contact Resistance	≤200Ω
Standards/Approvals	RoHS
Actuator Colour	Silver
Number of Keys	12
Keypad Layout	4 x 3
Keypad Output	Matrix
Housing Colour	Blue
Panel Cutout Width	13.5mm
Panel Cutout Height	115mm
Actuator Material	Polycarbonate
Mechanical Life Per Key	4000000Operations

Key Features

The keypad features a 4 x 3 layout with 12 keys, each with a mechanical life of 4 million operations.
Constructed with high-impact ABS housing and polycarbonate silver actuators for durability.
It offers a front or rear panel mounting and is fully sealed with gasket supplied to IP67 standard.
The illuminated keys enhance visibility in low light conditions.
Rated contact resistance is ≤200Ω with a contact rating of 5mA at 5Vdc.
Dielectric strength is 1500Vrms and insulation resistance is ≥1000MΩ, ensuring safe electrical operation.
Operates reliably between -25°C to 85°C operating temperature range.
Complies with RoHS directives and originates from France.

Product Description

EOZ SL.12150.211 12 Key Illuminated ABS Keypad is designed for demanding industrial, automation, and electrical applications requiring durability and reliability. Featuring a blue ABS housing with an IP67 rating, it is protected against dust and water ingress, suitable for harsh environments in manufacturing, control panels, and outdoor installations.

This keypad has a 4 x 3 layout with 12 illuminated keys for ease of use in dimly lit conditions. Each key is constructed from polycarbonate with a silver actuator finish providing an ergonomic and robust interface. The mechanical life per key is rated at 4 million operations, ensuring long-term durability in continuous use scenarios.

Sealing with the supplied gasket ensures compliance with IP67 standards, allowing front or rear mounting on panels with cutouts of 13.5mm width and 115mm height. The keypad connects via standard 0.1-inch pitch header (not included), simplifying integration into existing systems.

Electrical specifications include a contact rating of 5mA at 5Vdc and low contact resistance ≤200Ω. Its dielectric strength is rated at 1500Vrms and insulation resistance at ≥1000MΩ, ensuring safe and reliable operation in electrical circuits. The keypad complies with RoHS standards, confirming environmental compliance.

This product is manufactured in France to high quality standards and is ideal for applications in industrial automation, machinery controls, and instrumentation. Its robust construction and protective features make it suitable for equipment exposed to dust, moisture, and mechanical stresses.

The keypad’s high-impact ABS housing provides strong resistance to physical damage. Illuminated keys enable operation in low light or night-shift environments. Durable polycarbonate actuators deliver reliable tactile feedback and longevity.

The IP67 enclosure ensures protection against harsh environmental factors. Electrical safety ratings offer secure usage in sensitive electrical installations. Explore this keypad and other high-quality input devices in EnvMart’s Electronics & Electricals category for reliable industrial and commercial solutions.
