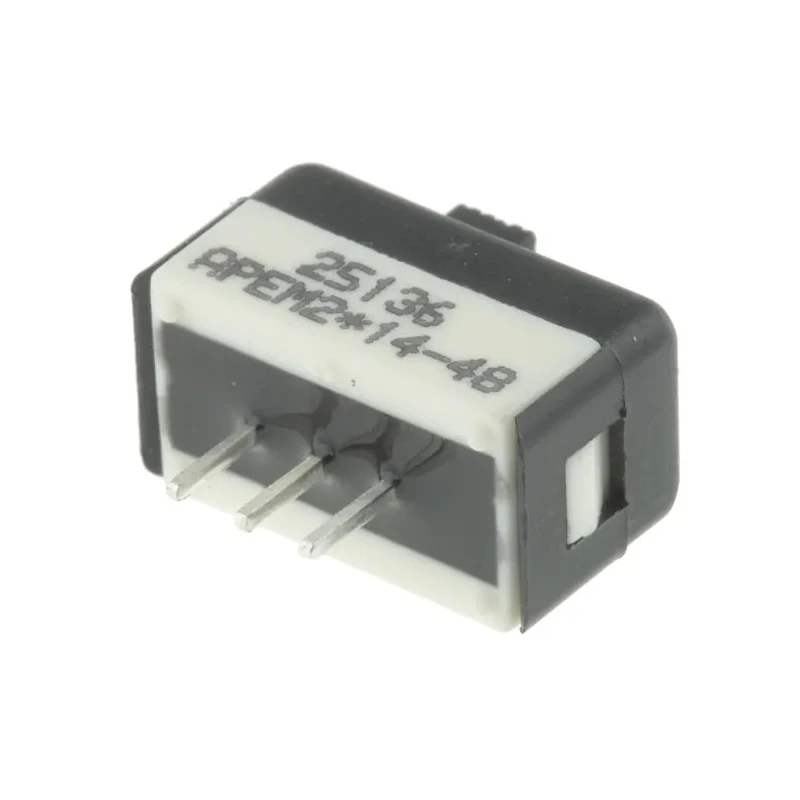

APEM PCB Slide Switch SPDT Latching 4A 30V Fibreglass Reinforced Polyamide 25136NAH
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Length | 14.1mm |
| Model | 25136NAH |
| Depth | 10.9mm |
| Width | 7.5mm |
| Mount Type | PCB |
| Series | 25 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-None-On |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Standards/Approvals | UL |
| Switch Operation | Latching |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 4A |
| Mechanical Life | 20000Operations |
| Electrical Life | 10000 cycles |
| Actuator Material | Fibreglass Reinforced Polyamide |
| APEM PCB Slide Switch SPDT Latching 1A Fibreglass Reinforced PolyamideBrand | APEM |
| KNITTER-SWITCH PCB Slide Switch SPST Latching 3A NylonBrand | KNITTER-SWITCH |
Key Features
- SPDT configuration with on-none-on switching capability.
- Latching operation supports up to 4A contact current at 30V DC.
- Fibreglass reinforced polyamide actuator for enhanced durability.
- Suitable for PCB mounting with through hole terminal design.
- Operating temperature range from -40°C to 85°C for versatile environments.
- High mechanical life of up to 20000 operations ensures reliable actuation.
- Sealed terminals protect against flux and contamination during soldering.
- Certified to UL standards for quality and safety compliance.
Product Description
The APEM 25136NAH model PCB Slide Switch is a precision-engineered SPDT (Single Pole Double Throw) latching switch designed for reliable circuit switching in compact and high-density electronic assemblies. Its fibreglass reinforced polyamide actuator ensures structural integrity while operating under demanding conditions.
This switch offers on-none-on switching configuration and provides a contact current capacity of up to 4A at 30V DC, making it ideal for both signal and low-voltage power applications on printed circuit boards. Its latching operation enables circuit retention without continuous operator intervention, which is particularly useful in digital, control, and automation circuits where swift selection and stable contact state are required.
Designed for ease of PCB integration, the 25136NAH uses through hole terminals and a compact footprint, with dimensions of 14.1mm (length), 7.5mm (width), and 10.9mm (depth). The switch body is constructed of high-temperature PBT thermoplastic case and actuator, providing resistance to soldering heat and flux ingress during assembly, as well as ensuring long-term performance in harsh or variable environments.
It is rated for mechanical life of up to 20000 actuations and an electrical life span of 10000 cycles. The unit is certified to UL standards, ensuring compliance with international norms for product safety. The operational temperature range extends from -40°C to +85°C, allowing suitability in industrial, laboratory, HVAC, instrumentation and commercial electronic device applications.
Sealed terminal design aids in preventing contamination and ensures a reliable solder and electrical connection over the lifetime of the product. The miniature slide actuator enables easy manual operation on densely populated PCBs, making this switch a practical choice for engineers requiring dependable, robust PCB-mounted controls in their systems.
Explore more slide switches and electronic components in our EnvMart catalogue to find the right solution for your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a contact current capacity of up to 4A at 30V DC.
The operating temperature range extends from -40°C to +85°C.
It has a mechanical life rating of up to 20000 operations.
This model features through hole terminals for PCB mounting.
It is an SPDT (Single Pole Double Throw) switch with an on-none-on configuration.
The actuator is made from fibreglass reinforced polyamide.
The electrical life span is rated for up to 10000 cycles.
Yes, it is certified to UL standards for quality and safety compliance.
The dimensions are 14.1mm in length, 7.5mm in width, and 10.9mm in depth.
It utilizes a latching operation, allowing circuit retention without continuous operator intervention.
It is suitable for industrial, laboratory, HVAC, instrumentation, and commercial electronic device applications.
The switch body is made from high-temperature PBT thermoplastic case, providing resistance to soldering heat and flux ingress.
