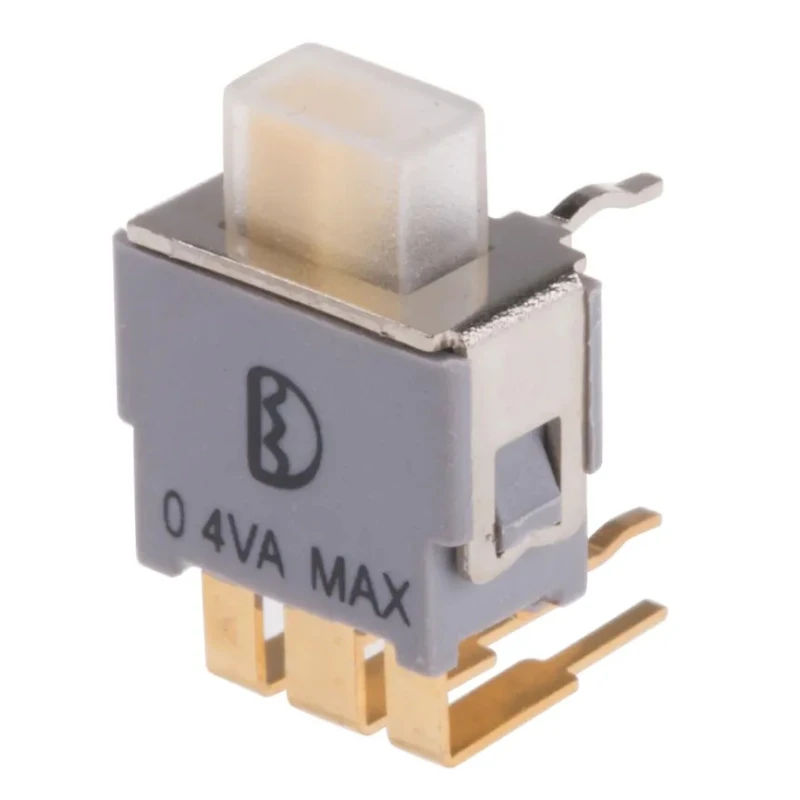

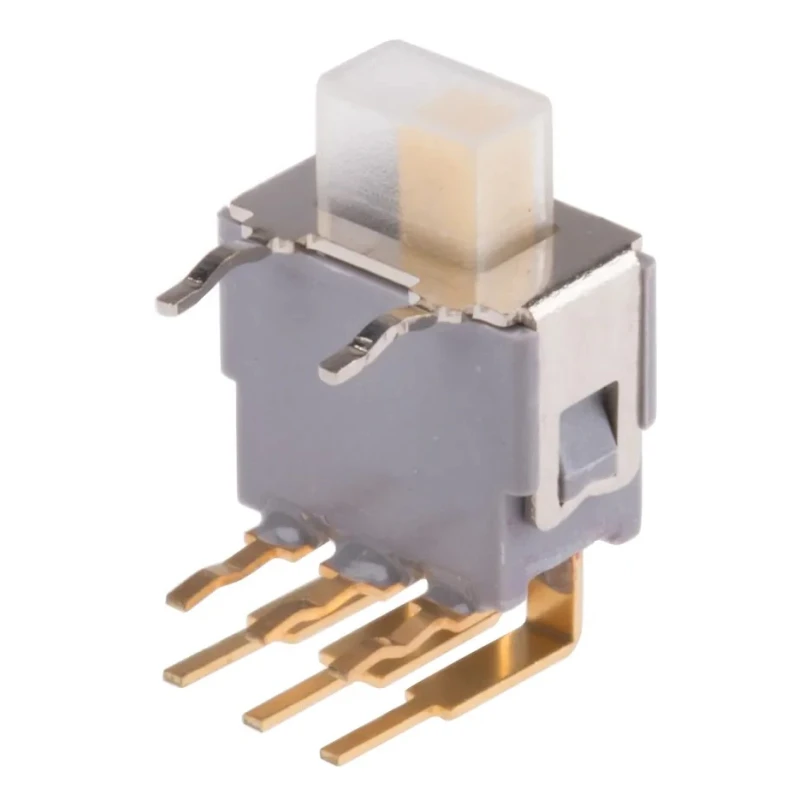

RS PRO IP67 PCB Slide Switch DPDT Latching 400mA Polybutylene Terephthalate IP67

RS PRO IP67 PCB Slide Switch DPDT Latching 400mA with Polybutylene Terephthalate actuator is a high-quality slide switch engineered for precise PCB control in various electrical and electronic applications. Its compact size and robust construction make it suitable for industrial, instrumentation, telecommunications, medical devices, and white goods industries.

The device provides a double-pole double-throw (DPDT) contact configuration with a latching switch operation, allowing for stable switching positions. Designed with a durable epoxy seal and actuator boot, this switch is washable and protected against dust and water ingress under IP67 rating.

The switch features a nickel-plated brass housing with yellow PBT actuator and white PBT case, offering excellent mechanical strength and insulation. It supports circuit requirements up to 400mA contact current and withstands AC and DC voltages of up to 48 volts.

With a mechanical life expectancy of 40000 cycles and compliance with RoHS and UL standards, this slide switch offers reliability and environmental safety. Typical applications include handheld products, instrumentation, white goods, medical equipment, IT, and telecommunications systems.

Its solder terminal type facilitates easy PCB mounting and assembly. The temperature range from -20°C to 80°C ensures performance stability in varied environments. This slide switch features a DPDT contact configuration for complex circuit control.

The IP67 rating ensures protection against dust and water ingress. It operates on a latching switch mechanism with a switch contact current of 400mA. The actuator material is robust polybutylene terephthalate providing durability and heat resistance.

Designed with a solder terminal type and suitable for 48V AC and DC voltage applications. Mechanical life supports up to 40000 cycles enhancing product reliability. The compact dimensions of 9.5mm length, 5mm width, and 8mm depth allow for PCB space efficiency.

The device complies with RoHS and UL standards ensuring quality and safety. Operating temperature range from -20°C to 80°C for versatile environmental use.

This RS PRO slide switch is ideal for use across industrial, laboratory, manufacturing, and commercial electronics requiring robust and compact PCB switch solutions. Find more RS PRO products and electronic switch solutions on EnvMart.
