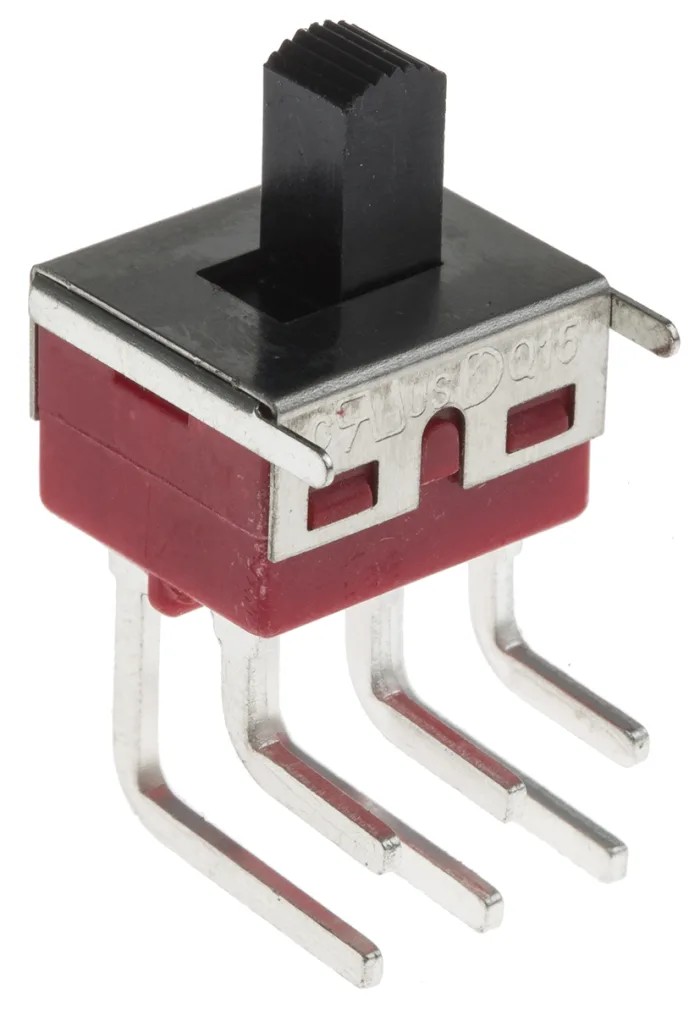

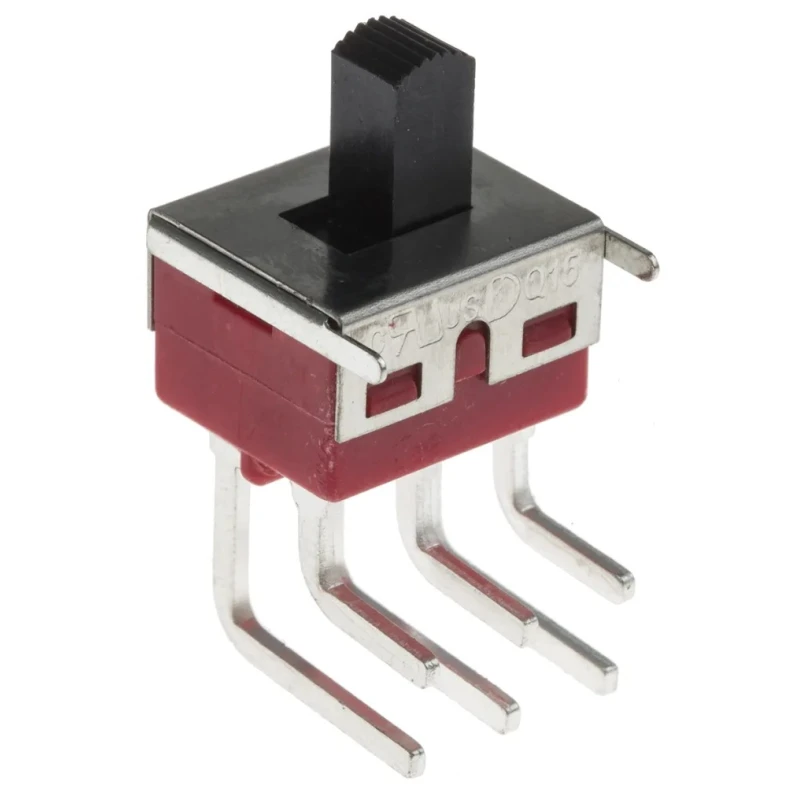

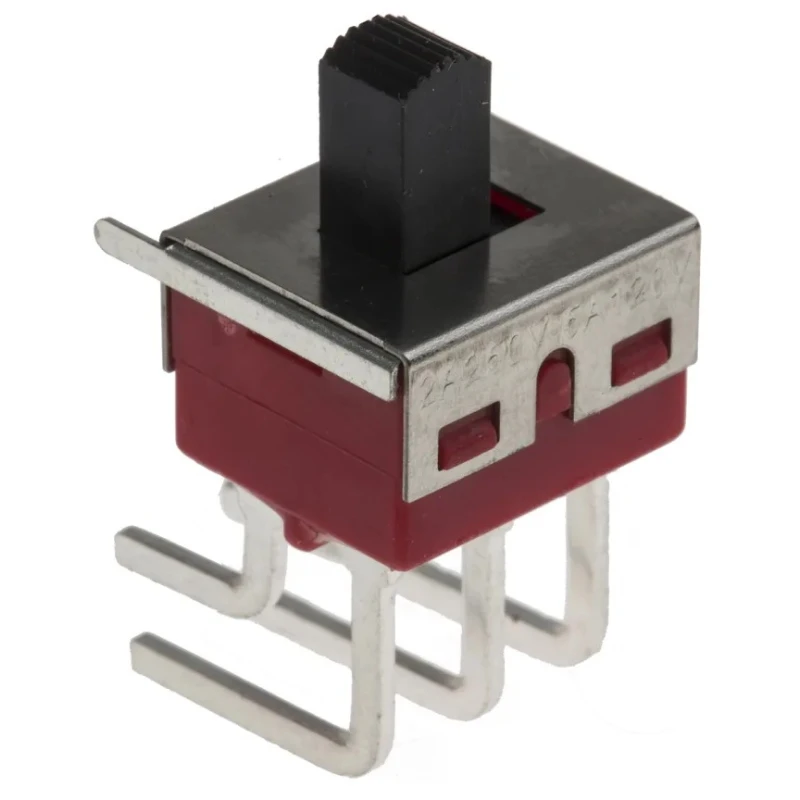

RS PRO PCB Slide Switch DPDT Latching 5A Silver Plated Brass 28V dc 7347274P

RS PRO 7347274P PCB Slide Switch DPDT Latching is a high-quality, miniature slide switch designed for precise control in electronic and electrical systems. This switch offers a robust contact rating of 5A at 28V DC, making it suitable for a wide range of industrial, manufacturing, and automation use cases. The switch is specifically designed for printed circuit board (PCB) mounting with through-hole terminals to facilitate reliable mechanical and electrical connection.

The silver plated brass actuator not only provides an attractive finish but also ensures excellent electrical conductivity and durability. Its latching switch operation with an on-none-on configuration allows users to maintain switch position securely during operation, ideal for control panels and instrumentation.

With a mechanical lifespan of 30,000 cycles, the RS PRO 7347274P offers durability for demanding applications in telecommunications, medical device controls, white goods, and handheld electronics. It withstands operating temperature ranges from -30°C to 85°C, providing versatility across various environments. Compliance with RoHS standards underscores its environmental safety.

The compact dimensions of approximately 12.7 mm length and 11.43 mm width make it suitable for space-constrained applications. This switch is designed to endure wave soldering processes at 260°C for 5 seconds, enabling integration into automated assembly lines. Its black nylon actuator and stainless steel housing add ruggedness to its operational stability.

Practical applications include PCB or front panel controls in industrial automation, laboratory equipment, telecommunications, and consumer electronics manufacturing. This component is a reliable solution for projects requiring precise slide switch operation with dependable mechanical and electrical performance.

This switch features a double pole double throw (DPDT) contact configuration enabling versatile circuit control. Designed for PCB mounting with through-hole terminals ensuring secure installation. Operates at a contact DC voltage of 28V with an on-none-on switch configuration and latching operation.

Made with a silver plated brass actuator material for corrosion resistance and longevity. Mechanical life expectancy of 30,000 cycles supports extended use in industrial applications. Suitable for operating temperatures from -30°C to a maximum of 85°C, accommodating varied environments.

Complies with RoHS standards ensuring environmental and safety compliance.

Purchase this RS PRO PCB Slide Switch 7347274P for high-reliability switch control in your electronic assemblies. Browse EnvMart for more switches and electrical components suited to industrial, commercial and laboratory needs.
