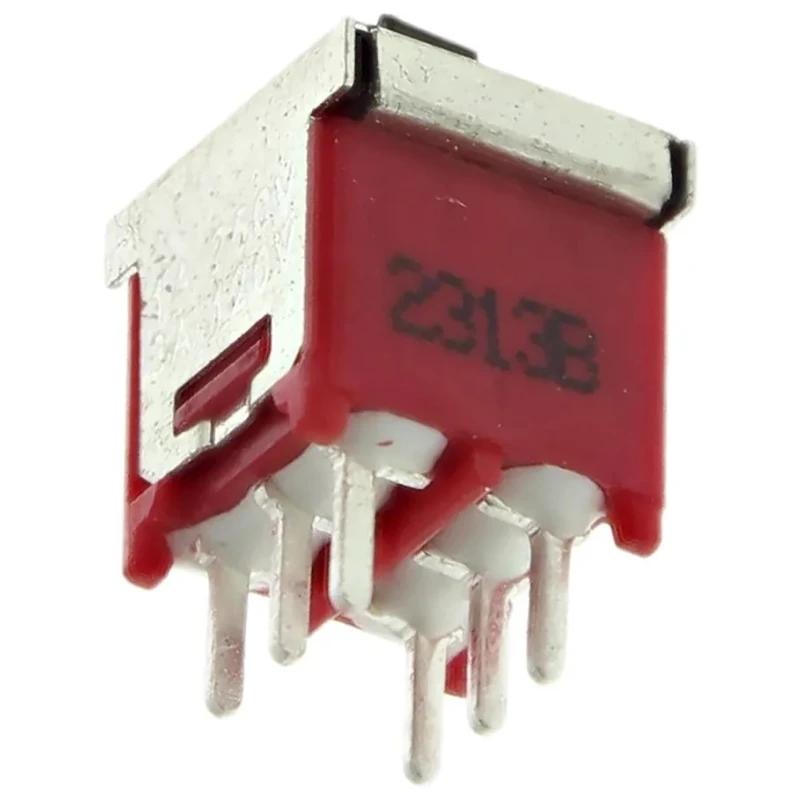

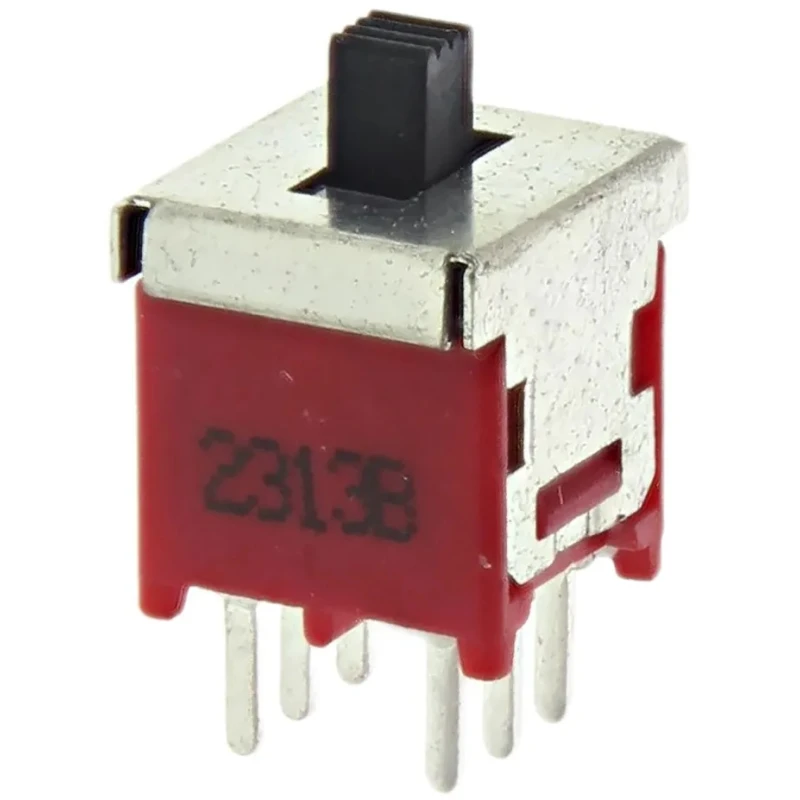

RS PRO PCB Slide Switch DPDT On-Off-On 3A Nylon 734-7252

RS PRO 734-7252 PCB Slide Switch DPDT On-Off-On 3A Nylon is a high-quality miniature slide switch built for precision PCB control. This slide switch features a double pole double throw (DPDT) contact configuration with an On-Off-On switch operation, enabling reliable and versatile switching functions in compact spaces.

The device is rated for a maximum switch contact current of 3 amperes, capable of handling loads in both AC and DC circuits with contact voltages up to 250 V AC and 28 V DC respectively. The tactile feedback and durability of this switch make it suitable for demanding industrial, laboratory, and commercial electronic environments.

Constructed with a black nylon actuator offering robustness, the switch’s body utilizes a durable DAP case and tin plated brass housing. Its through hole terminal type allows for secure and easy mounting onto printed circuit boards. The mechanical life expectancy of 30,000 cycles ensures long-term reliability in various automated and manual control applications.

Dimensionally compact with a length of 10.16 mm, width of 9 mm, and depth of 9.2 mm, it is ideal for space-constrained applications. Operating temperature ranges from a low of -30°C to a maximum of 85°C, making it suitable for use in diverse environments including instrumentation, medical devices, IT hardware, telecom, and various handheld electronic products.

This switch complies with cULus and RoHS standards, ensuring safety and environmental compliance. It is specially designed for wave soldering processes at 260ºC for 5 seconds, enhancing assembly efficiencies in manufacturing processes.

The switch features a double pole double throw (DPDT) contact configuration. On-Off-On switch operation provides versatile electronic control. Rated switch contact current of 3 amperes for robust electrical performance. Black nylon actuator and DAP case ensure mechanical durability.

Compact dimensions suit various PCB mounting requirements. Through hole terminal type enables secure attachment to PCBs. Approved for contact voltages of 28 V DC and 250 V AC. Mechanical life of 30,000 cycles for extended industrial use.

Wide operating temperature range from -30°C to 85°C. Compliant with cULus and RoHS directives for safety and environmental standards.

This RS PRO PCB Slide Switch model 734-7252 is ideal for integration in industrial automation, electronic instrumentation, telecommunications equipment, and IT hardware, enhancing control and reliability. Browse the complete range of PCB Slide Switches and related components at EnvMart for your technical and assembly needs.
