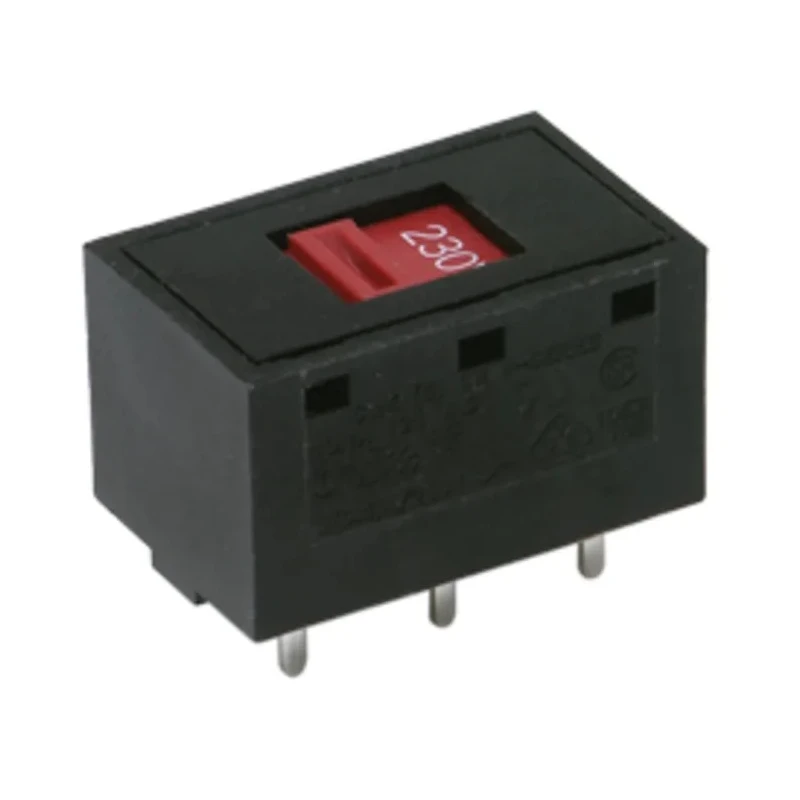

C & K PCB Slide Switch DPDT Latching 10A Contact Current, Polyester Actuator V80212MA08Q

Free Delivery in India | Lowest Global Shipping Charges

C & K PCB Slide Switch DPDT Latching 10A Contact Current, Polyester Actuator V80212MA08Q

Name: C & K PCB Slide Switch DPDT Latching 10A Contact Current, Polyester Actuator V80212MA08Q
Brand: C & K
SKU: 425811
Price: 993.95 INR
Availability: InStock



Category PCB Slide Switch Brand C & K Condition New

Specifications

Country of Origin	India
Brand	C & K
Length	26.19mm
Model	V80212MA08Q
Depth	15.75mm
Width	16.5mm
Mount Type	PCB
Series	V
Maximum Operating Temperature	85°C
Contact Configuration	DPDT
Switch Configuration	On-On
Minimum Operating Temperature	-30°C
Terminal type	PCB Terminal
Standards/Approvals	UL, RoHS
Switch Operation	Latching
Contact DC Voltage	28V dc
Switch Contact Current	10A
Mechanical Life	10000Operations
Contact AC Voltage	250V ac
Actuator Material	Polyester

Key Features

This switch features a double pole double throw (DPDT) contact configuration for versatile circuit control.
Designed for PCB mounting with PCB type terminals for reliable connections.
The latching switch operation ensures mechanical stability in circuit switching.
Rated for 28V DC and 250V AC contact voltages with on-on switch configuration.
Constructed using polyester for the actuator and copper alloy with silver plating for contacts to ensure durability.
Mechanical life rated at 10,000 operations to ensure longevity in use.
Operating temperature range from -30°C to 85°C enables use in various environments.
Certified to UL and RoHS standards confirming safety and environmental compliance.

Product Description

C & K V80212MA08Q PCB Slide Switch is a high-quality double pole double throw (DPDT) latching switch designed for PCB mounting applications. It supports a contact current rating of 10 amperes and is suitable for use in electrical and electronic equipment requiring reliable manual switching control.

The switch features a mechanically robust polyester actuator ensuring consistent performance under industrial operating conditions. Its contacts are made from copper alloy with silver plating for excellent conductivity and wear resistance.

Designed for operation between -30°C and 85°C, this switch is capable of withstanding a wide temperature range, making it suitable for demanding environments including telecommunications, computer peripherals, instrumentation, and measurement equipment.

The compact size with a length of 26.19 mm, width of 16.5 mm, and depth of 15.75 mm allows for installation in confined PCB spaces. Rated for DC voltages up to 28V and AC voltages up to 250V, it offers versatile inclusion in electronic circuits.

The switch’s mechanical life is rated at 10,000 operations, promising long-term durability. It complies with UL and RoHS standards, ensuring it meets safety and environmental requirements.

This switch is used extensively in telecommunication devices and test equipment due to its reliable latching operation. Its robust design ensures stable switching performance under continuous industrial use. The compact form factor is ideal for high-density circuit boards.

The polyester actuator provides resistance against wear and environmental conditions. Provides mechanical latching action to maintain switch state without continuous pressure.

For professionals seeking dependable PCB-mounted slide switches, the C & K V80212MA08Q offers reliable contact control with industrial-grade specifications. Explore similar products in the PCB Slide Switch category for various applications in electronics and industrial automation.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features a double pole double throw (DPDT) contact configuration, allowing for versatile circuit control.

It has a rated contact current of 10 amperes, suitable for various electrical applications.

The switch is rated for DC voltages up to 28V and AC voltages up to 250V, making it versatile for different circuit requirements.

It operates within a temperature range of -30°C to 85°C, allowing for use in various environments.

The actuator is made from polyester, while the contacts are constructed from copper alloy with silver plating for enhanced conductivity.

The mechanical life of this switch is rated at 10,000 operations, ensuring longevity in use.

It has a length of 26.19 mm, a width of 16.5 mm, and a depth of 15.75 mm, making it compact for PCB installation.

This model uses PCB type terminals, which provide reliable connections for PCB mounting applications.

Yes, it is certified to UL and RoHS standards, confirming its compliance with safety and environmental regulations.

It features a latching switch operation, which ensures mechanical stability in circuit switching.

This switch is commonly used in telecommunication devices, computer peripherals, instrumentation, and measurement equipment due to its reliable performance.

The V80212MA08Q is part of the C & K V series of PCB slide switches.
