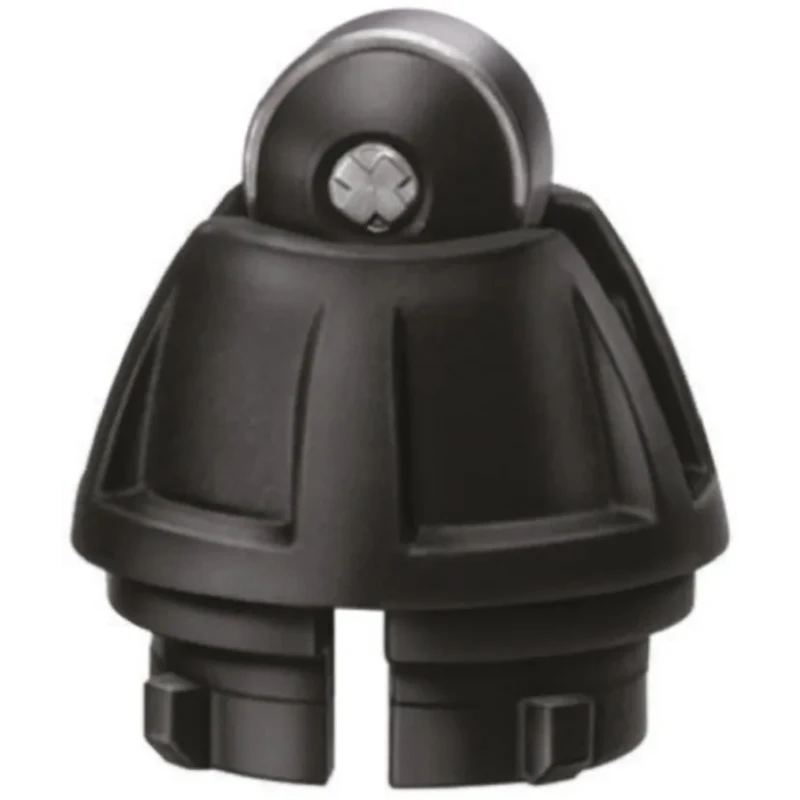

Siemens Limit Switch Operating Head, For Use With 3SE5 Limit Switch, Actuator Head, 3SE5000-0AD03

The Siemens 3SE5000-0AD03 Limit Switch Operating Head is a precision actuator head engineered for use with the SIRIUS 3SE5 series of limit switches. Designed for industrial control applications, this actuator head is essential for automation systems requiring dependable and repeatable mechanical actuation and state sensing.

This model is compatible with both modular and complete SIRIUS 3SE5 switch units, providing maximum installation flexibility. The plug-mounted construction allows for quick and straightforward replacement or upgrade of actuator heads without requiring disassembly of the entire switch assembly.

A wide variety of actuator forms, such as rounded plungers, roller plungers, angular and straight levers, twist levers, rods, spring rods, and fork levers, are supported by this series, making it adaptable to a broad spectrum of mechanical interface requirements. The head is suitable for operation either in line with or perpendicular to the plunger axis, and supports both central and lateral actuation - recommended for scenarios with long overtravel or specific angular approach needs.

This Siemens actuator head features robust construction to withstand harsh operating environments common within industrial automation, manufacturing, HVAC, and materials handling. Its resistance to oil, grinding dust, ice, and coarse-grained materials makes it suitable for demanding factory or infrastructure settings. For applications requiring high approach speeds up to 1.5 m/s or undefined and multidirectional actuation, specialized variants (e.g., twist lever or spring rod types) are available within the same series.

Additional design considerations include: adjustment options for twist levers (10°), multiple approach/trailing angles for roller and angular levers, and central fixing compatibility (e.g., with M18 x 1 thread). These capabilities ensure safe, accurate, and flexible actuation matching the dynamic needs of modern industrial processes.

Typical applications include industrial automation, conveyor systems, position sensing on machinery, process plant control, safety interlocks, and other automation sectors requiring mechanical-to-electrical interface solutions.
