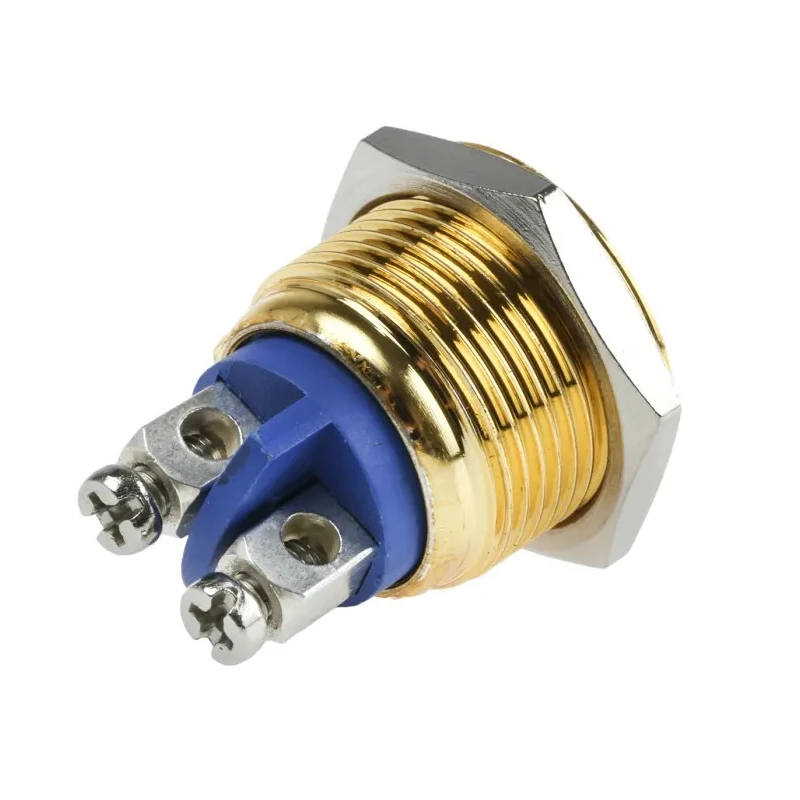

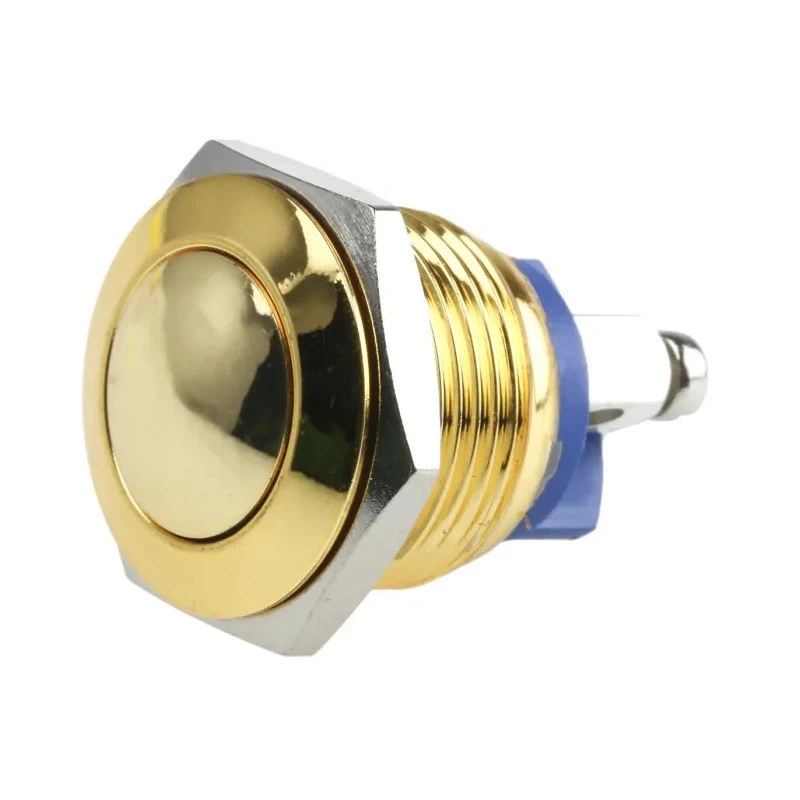

EOZ R Series Push Button Switch Momentary Panel 16.2 mm Cutout SPST IP65 48 V dc 250 V ac R16DFGSTAG



Category Push Button Switch Brand EOZ Condition New

Specifications

Country of Origin	France
Brand	EOZ
Model	R16DFGSTAG
IP Rating	IP65
Mount Type	Panel
Series	R
Maximum Operating Temperature	55°C
Contact Configuration	SPST
Switch Configuration	Momentary
Minimum Operating Temperature	-20°C
Panel Cutout Size	16.2 mm
Terminal type	Screw
Standards/Approvals	RoHS
Switch Operation	Momentary
Contact DC Voltage	48V dc
Actuator Style	Button
Switch Contact Current	2A
Contact AC Voltage	250V ac

Key Features

Designed for industrial and commercial applications requiring robust vandal resistant switches.
Protected against 5 joules of impact, suitable for exposed public and factory equipment environments.
Sealed to IP65, providing dust-tight protection and resistance to low-pressure water jets.
Operates at 48 V dc and 250 V ac with a 2 A switch contact current rating.
Equipped with screw terminal connections for secure wiring.
Operates reliably between -20°C to 55°C ambient temperature.
Non-illuminated button actuator style for simple momentary switching.
Manufactured to RoHS standards, ensuring environmental compliance.

Product Description

EOZ R16DFGSTAG is a high-quality R Series push button switch designed for momentary operation, primarily used in panel mounting applications. It features a precise 16.2 mm cutout size and a single pole single throw (SPST) contact configuration. This push button switch is crafted for rigorous industrial and commercial environments such as access control systems, machinery, ticketing kiosks, vending machines, and other public or factory equipment.

The switch is vandal resistant with an IK08 shock rating, capable of withstanding impacts up to 5 joules, equivalent to the force of a 1.7 kg mass dropped from 300 mm. Additionally, it offers an IP65 ingress protection rating, ensuring it is fully dust tight and resistant to low-pressure water jets from any direction, making it suitable for demanding environments.

The EOZ R16DFGSTAG supports 48 V dc and 250 V ac operation with a maximum switch contact current of 2 A. It features a screw terminal type for reliable and secure electrical connection. Operating ambient temperatures range from -20°C to 55°C, making it suitable for use across varying climatic conditions. The button style actuator is designed for non-illuminated momentary switching with long service life.

This product complies with RoHS standards for environmental safety and originates from France, ensuring high manufacturing quality and standards. Its robust design and reliable electrical ratings make it ideal for use in industrial control panels, automation systems, and other electrical equipment requiring dependable momentary push button control.

Designed for industrial and commercial applications requiring robust vandal resistant switches. Protected against 5 joules of impact, suitable for exposed public and factory equipment environments. Sealed to IP65, providing dust-tight protection and resistance to low-pressure water jets.

Operates at 48 V dc and 250 V ac with a 2 A switch contact current rating. Equipped with screw terminal connections for secure wiring. Operates reliably between -20°C to 55°C ambient temperature. Non-illuminated button actuator style for simple momentary switching.

Manufactured to RoHS standards, ensuring environmental compliance. Mounts in standard 16 mm panel holes for easy installation. Explore EOZ R Series Push Button Switches on EnvMart for reliable industrial switch solutions suited for diverse electrical and automation requirements.
