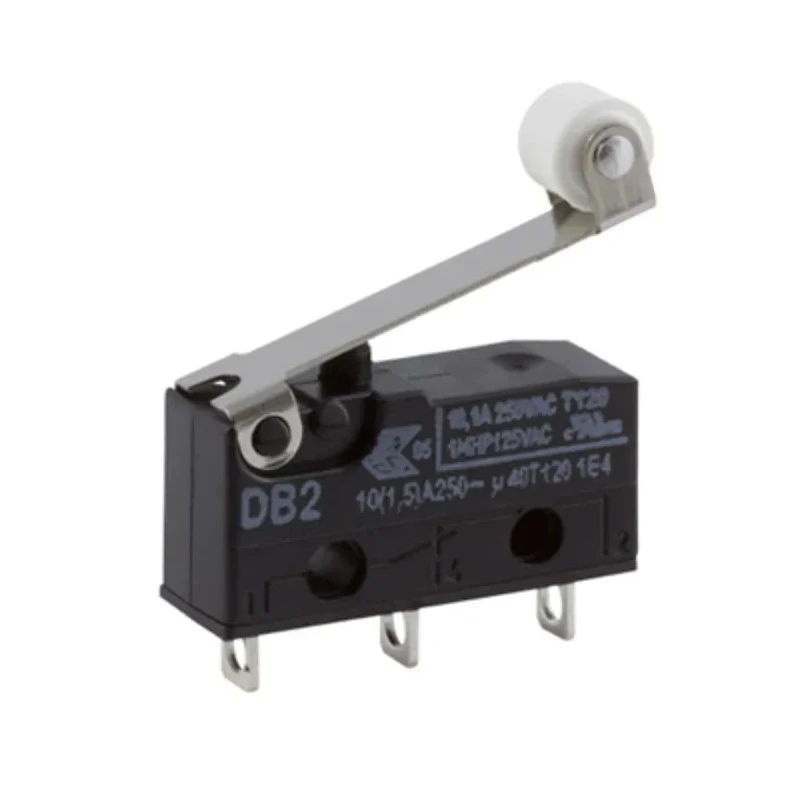

ZF Roller Lever Micro Switch with Solder Terminal, 10.1A, 250 V AC, SPDT, IP50 DB2C-A1RC

ZF brand roller lever micro switch model DB2C-A1RC is engineered for reliable switching applications in electrical and industrial equipment. It features a solder terminal type for secure connections and a roller lever actuator for smooth mechanical operation.

This micro switch supports a contact current of 10.1A at 250 V AC, using single-pole double-throw (SPDT) contact configuration, suitable for precise control circuits.

The device has an IP50 rated housing, built with polyamide and polyethylene terephthalate materials that provide robustness and durability in demanding environments. It operates effectively from a minimum temperature of -40°C up to 120°C.

With an operating force of 0.93N and a mechanical life expectancy of 15 million operations, the DB2C-A1RC is suitable for high-reliability applications in industrial automation, electrical controls, HVAC systems, manufacturing equipment, and instrumentation.

Roller lever actuator type enables precise mechanical operation. Solder terminals ensure reliable electrical connections. Contact current rating is 10.1A for robust performance. Rated for 250 V AC voltage applications. IP50 protection rating offers dust ingress resistance.

Durable housing material of polyamide and polyethylene terephthalate. Operating force of 0.93 newtons for smooth actuation. Wide operating temperature range from -40°C to +120°C. Reliable switching with mechanical life of 15 million operations.

RoHS compliant and holds ENEC certification ensuring safety and environmental standards.

This Micro Switch is ideal for electrical, industrial automation, and control panel applications demanding precise mechanical switching with high durability and safety compliance. Discover more quality switching solutions on EnvMart's Electronics & Electricals category.
