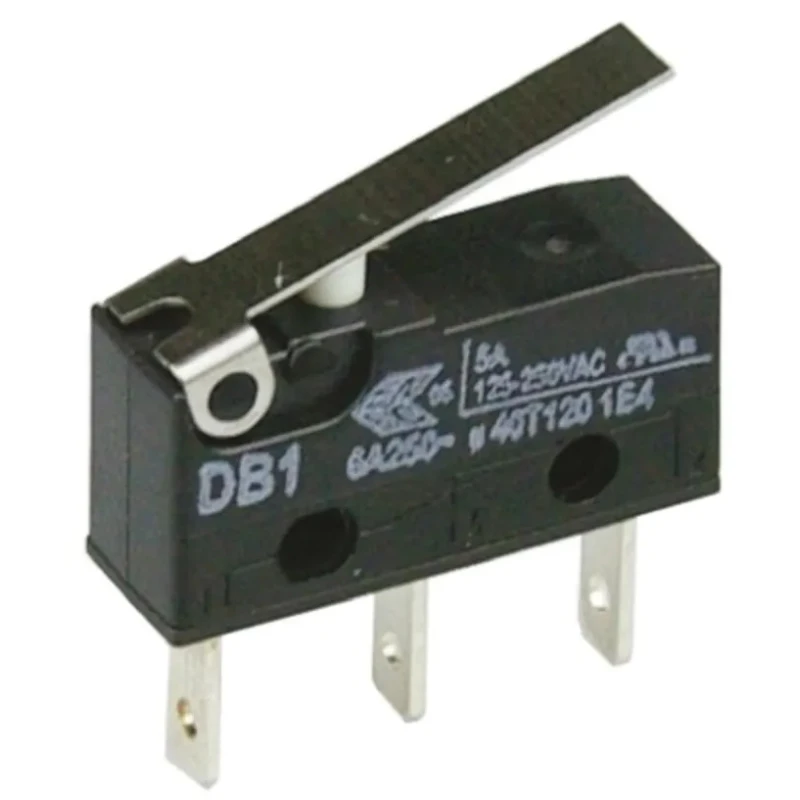

ZF Short Lever Micro Switch with Tab Terminal, 6A Current Rating, 250V AC Voltage, SPDT Contact Configuration DB1C-B1LB
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | ZF |
| Model | DB1C-B1LB |
| IP Rating | IP50 |
| Housing Material | Polyethylene Terephthalate, Polyamide |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | SPDT |
| Actuator Type | Short Lever |
| Minimum Operating Temperature | -40°C |
| Terminal type | Tab |
| Standards/Approvals | RoHS |
| Switch Contact Current | 6A |
| Operating Force | 0.59N |
| Mechanical Life | 15000000Operations |
| Contact AC Voltage | 250V ac |
| Microswitch Type | DB Subminiature |
Key Features
- Features a short lever actuator type for precise control.
- Equipped with tab terminals for easy connections.
- Single Pole Double Throw (SPDT) contact configuration for versatile switching.
- Offers IP50 rated protection for dust ingress resistance.
- Constructed with polyethylene terephthalate and polyamide housing for durability.
- Operating force of 0.59N enables smooth actuation.
- Designed to operate between -40°C and 120°C environmental temperatures.
- Boasts a mechanical life of up to 15 million operations for extended use.
Product Description
ZF DB1C-B1LB Short Lever Micro Switch is designed for industrial and electrical applications demanding high precision and reliable switching operations. It features a short lever actuator offering accurate and responsive actuation suitable for diverse control systems.
This micro switch supports a contact current of 6 amperes at 250 volts AC with a Single Pole Double Throw (SPDT) configuration, making it adaptable for various circuit designs. The tab terminal type facilitates straightforward wiring and integration into machinery and control panels.
The housing combines polyethylene terephthalate and polyamide materials, balancing robustness and electrical insulation properties. An IP50 rating provides protection against dust ingress to maintain consistent switch performance in standard industrial environments.
Operating temperature range from -40°C to 120°C enables functionality in harsh conditions. With a precise operating force of 0.59 Newtons, the device ensures consistent actuation effort minimizing operator fatigue.
The switch is engineered for longevity with a mechanical life expectancy of up to 15 million cycles, contributing to reduced maintenance frequencies and operational downtime.
Compliance with RoHS standards certifies the product's adherence to environmental regulations, further assuring responsible manufacturing. Originating from Germany, this micro switch guarantees premium build quality and reliability.
Features a short lever actuator for precision control. Tab terminal connections ensure easy wiring. SPDT configuration supports diverse switching applications. Durable polyamide and polyethylene terephthalate housing. IP50 rating offers dust protection.
Operates smoothly with 0.59N actuation force. Wide operational temperature range from -40°C to 120°C. Mechanical life of up to 15 million operations. RoHS compliant for environmental safety.
This micro switch is ideal for industrial automation, electrical control systems, machinery, HVAC controls, manufacturing equipment, and other commercial electrical applications requiring a reliable and durable switching component.
Explore a wide range of Micro Switches and electrical components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This micro switch has a contact current rating of 6A.
It supports a contact AC voltage of 250V.
The switch features a Single Pole Double Throw (SPDT) contact configuration.
It operates effectively within a temperature range of -40°C to 120°C.
The housing is constructed from polyethylene terephthalate and polyamide.
The operating force required for actuation is 0.59N.
It has a mechanical life expectancy of up to 15 million operations.
It is equipped with tab terminals for easy connections.
It has an IP50 rating, providing protection against dust ingress.
Yes, it is RoHS compliant, ensuring adherence to environmental regulations.
This micro switch is manufactured in Germany.
It is suitable for industrial automation, electrical control systems, and HVAC controls, among other applications.
