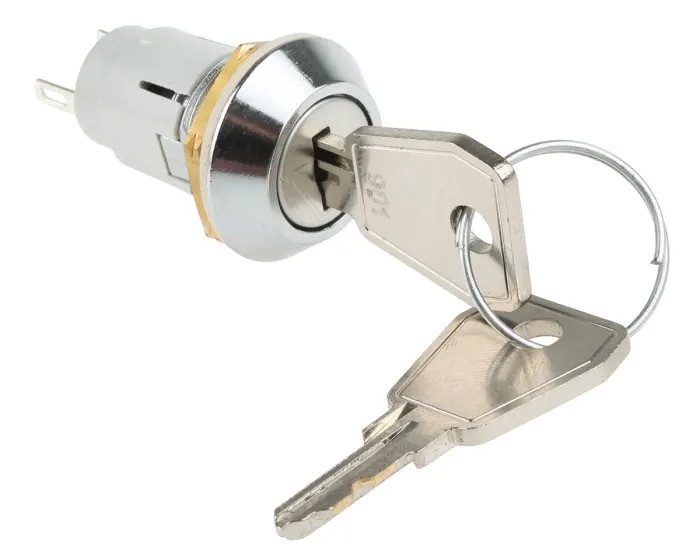

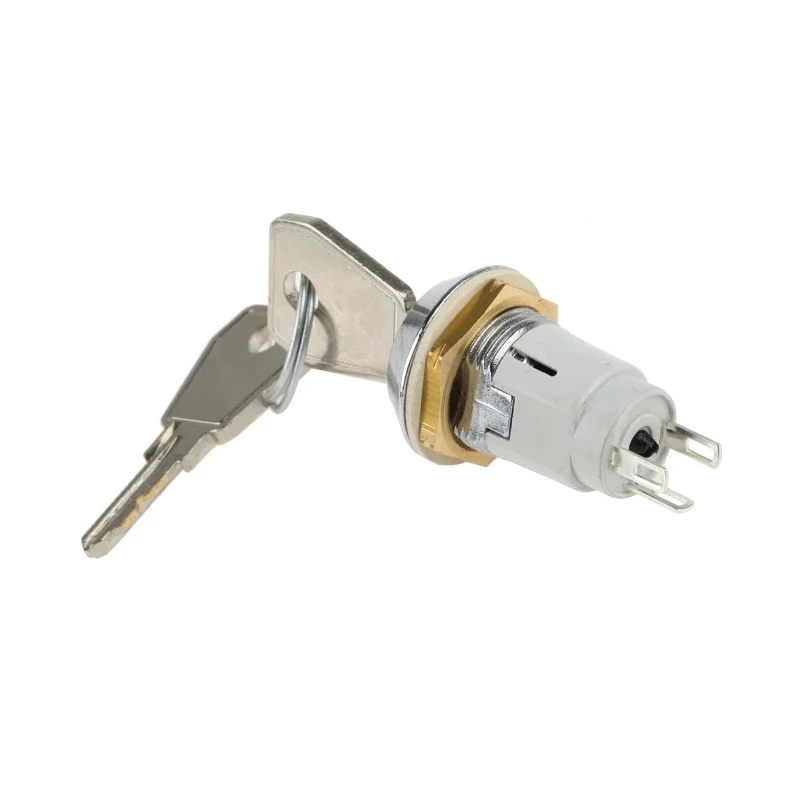

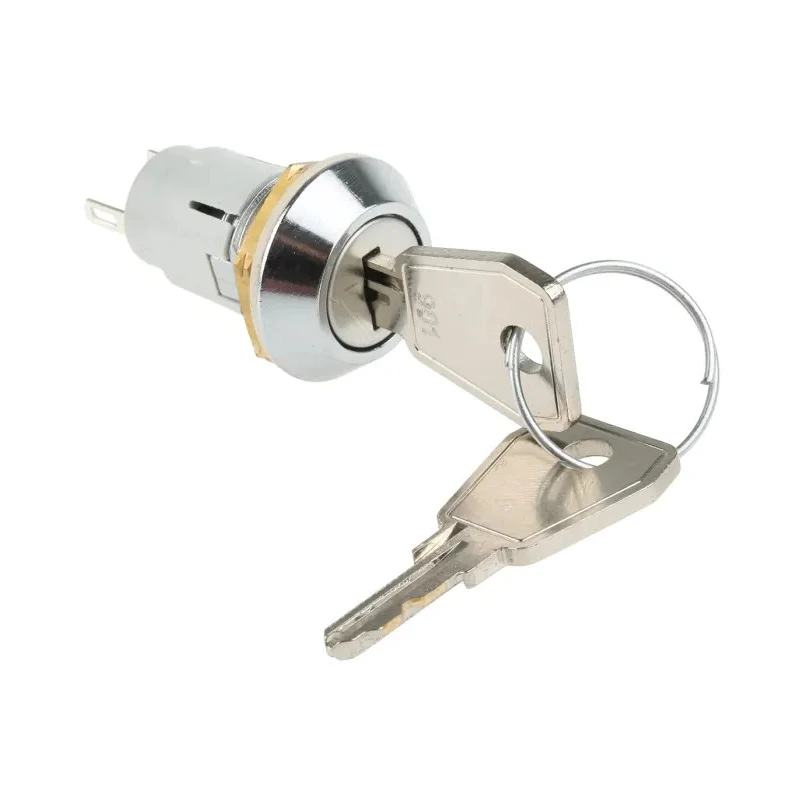

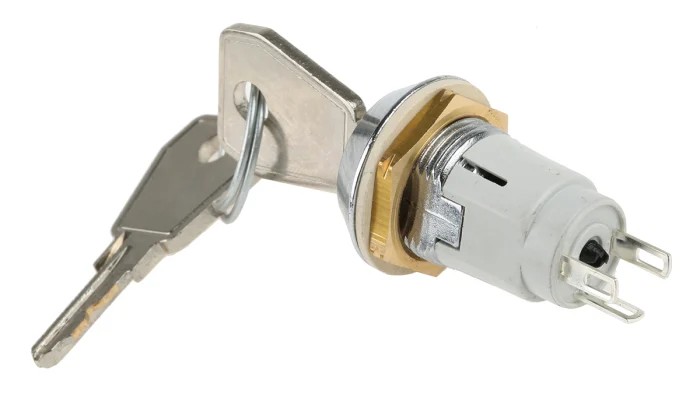

Lorlin IP66/IP67 Key Switch SPDT 1A Common Key Zinc Alloy WRL-5-E-S-2

Lorlin WRL-5-E-S-2 is an industrial key switch designed for demanding control and panel environments, featuring an IP66/IP67 ingress rating. This switch combines a robust zinc alloy die-cast housing with a stainless steel capped round bezel, ensuring protection against dust and high-pressure water jets. It supports single pole double throw (SPDT) configuration, making it suitable for various control and switching tasks.

Equipped with a common-key system, the WRL-5-E-S-2 allows double entry key insertion for enhanced versatility and provides up to 200 key combination options for security and access management. The switch offers a nominal switch contact current of 1A, suitable for low-power signal and industrial applications. Solder terminals facilitate straightforward integration into control panels, and the switch occupies minimal panel area with rear projection of less than 30 mm.

This model is engineered for durability, providing a mechanical life of 10,000 switching cycles and operating reliably within a wide temperature range from -20°C to 65°C. It features silver-plated brass contacts, maximizing conductivity and contact reliability. The 90° key index angle simplifies operation, minimizing accidental switching and offering smooth actuation.

The Lorlin WRL-5-E-S-2 is ideal for marine applications, industrial control panels, and environments requiring robust access control. With compliance to RoHS, ANSI/ESD S20.20:2014, and BS EN 61340-5-1:2007 standards, users are assured of both quality and safety.

Industrial use cases include process control, instrumentation panels, marine equipment, and secure access interfaces across manufacturing and commercial environments. The high ingress protection, ergonomic design, and flexible common key features make it a preferred choice for technical operations requiring reliability and safety.
