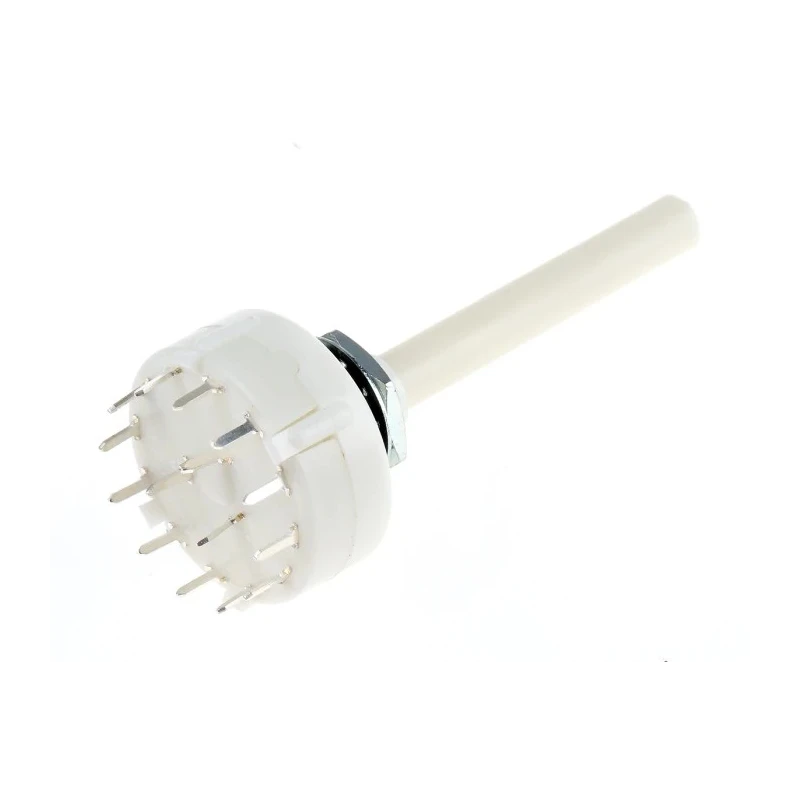

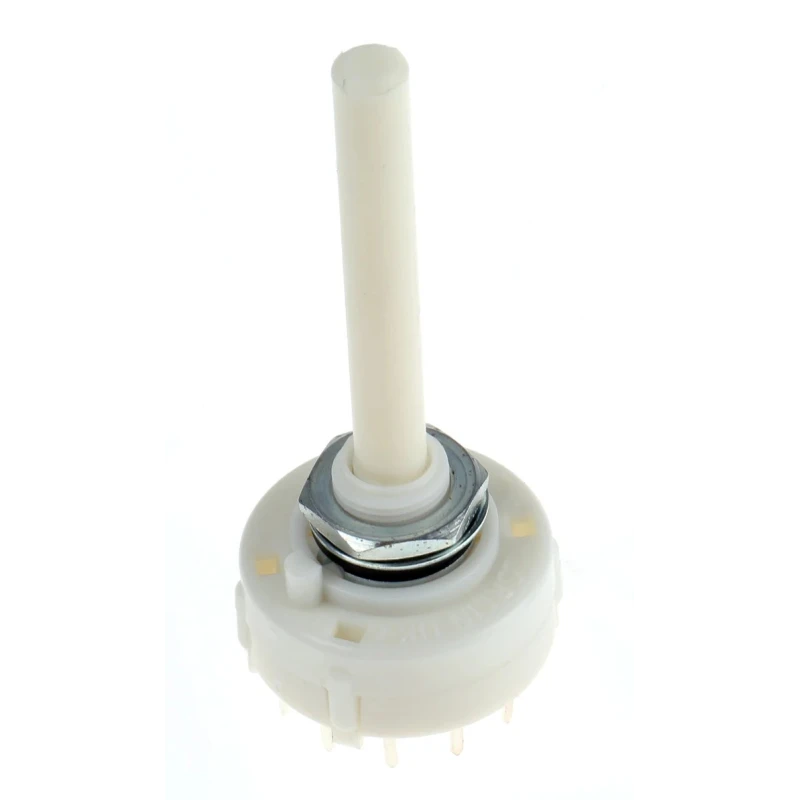

Lorlin CKF Series 3P4T Rotary Switch, 150mA Contact Current, Nylon Housing, IP65, PCB Mount CKF1051

Lorlin CKF1051 is a durable 3P4T Rotary Switch designed for precise switching applications requiring up to 150mA contact current. Featuring a nylon housing and robust sealing to IP65 standard, it is optimized for PCB mounting in demanding industrial and electronic control environments.

The switch operates on a latching mechanism with a 30° indexing angle, providing a reliable and repeatable switching action. Its non-shorting break before make contacts and dampened indexing reduce wear and provide smooth operation with reduced shaft play.

With a mechanical life expectancy of 10,000 operations, this sealed rotary switch is suitable for automation, industrial control panels, instrumentation, and other electronics where reliable multi-pole switching is required.

The device accommodates both AC and DC voltages up to 250V and is rated for operation from -30°C up to 85°C, ensuring stability in various temperature conditions. The solder terminals enable secure PCB mounting, making it ideal for compact circuit designs.

Its compact form factor with dimensions of 64.1mm height, 27.5mm diameter, and 18.1mm depth fits well in constrained spaces while maintaining operational integrity. The white actuator color improves tactile and visual identification during usage.

Key features include IP65 sealing for protection against dust and water ingress, a single wafer design for efficient contact switching, and inclusion of a stop to limit rotation as per application requirements.

This Lorlin rotary switch meets RoHS compliance and is well-suited for applications in industrial automation, electrical equipment manufacturing, instrumentation, and control systems. Its reliable performance supports enhanced system longevity and operational precision.

Explore more rotary switch options in the Electronics & Electricals category on EnvMart for industrial and commercial electrical automation needs. Features a 3-pole, 4-throw contact configuration for versatile switching.

Operates with a latching switch operation and 30° indexing angle. Constructed with durable nylon housing ensuring IP65 protection. Designed for a maximum AC and DC voltage of 250V each. Includes solder terminal type for reliable PCB mounting.

Operates within a temperature range of -30°C to 85°C. White actuator color provides clear visibility during operation. Mechanical life rated at 10,000 operations for long-term reliability. Compact dimensions: 64.1mm height, 27.5mm diameter and width, and 18.1mm depth.

Non-illuminated sealed Rotary Switch with dampened indexing and reduced shaft play.
